With GST
- Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.Β
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "DIAGNOSTIC PROCEDUREΒ ".
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "DIAGNOSTIC PROCEDUREΒ ".

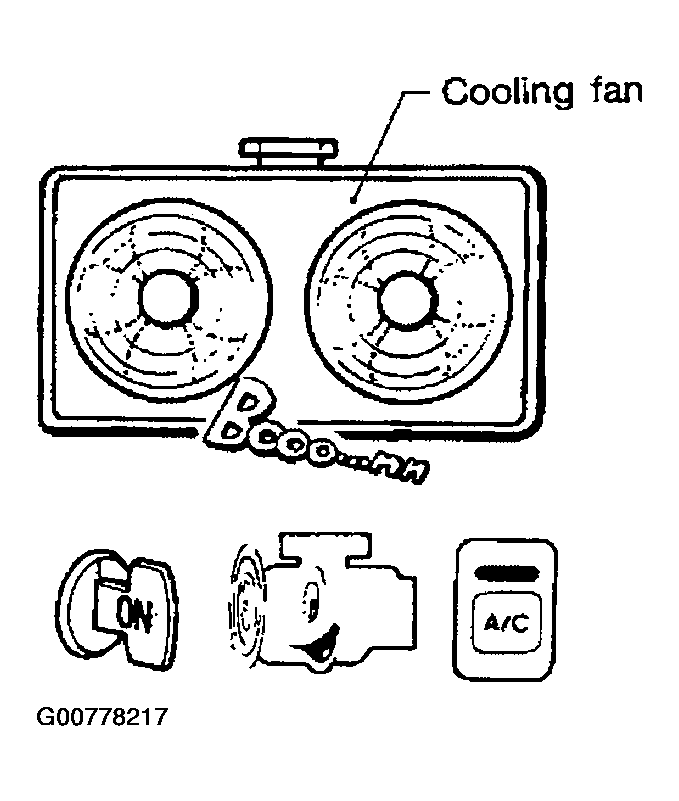

- Start engine.
Be careful not to overheat engine.Β
- Set temperature control lever to full cold position.
- Turn air conditioner switch ON.
- Turn blower fan switch ON.
- Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.Β
- Make sure that cooling fan operates at low speed.
If NG, go to "DIAGNOSTIC PROCEDUREΒ ".
If OK, go to the following step.
- Turn ignition switch OFF.
- Turn air conditioner switch and blower fan switch OFF.

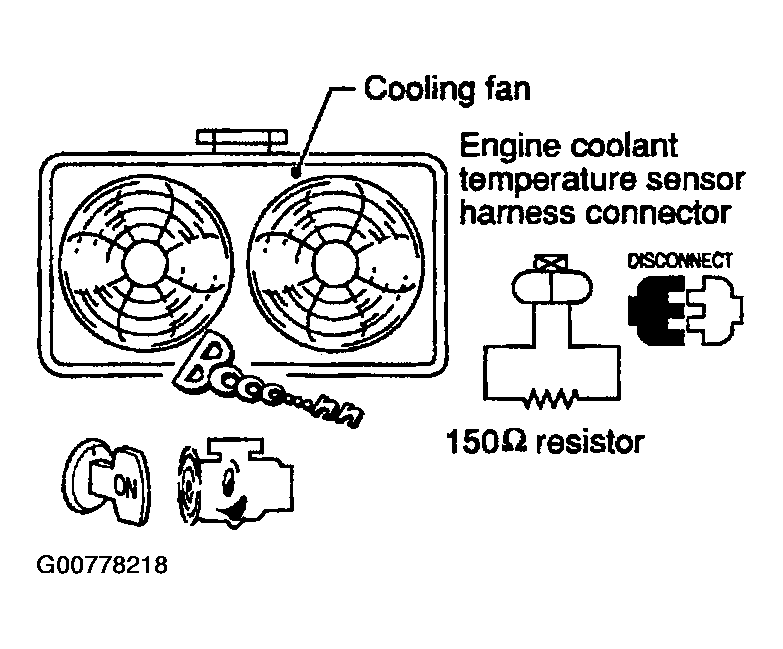

- Disconnect engine coolant temperature sensor harness connector.
- Connect 150Ξ© resistor to engine coolant temperature sensor harness connector.
- Restart engine and make sure that cooling fan operates at higher speed than low speed.
Be careful not to overheat engine.Β
- If NG, go to "DIAGNOSTIC PROCEDUREΒ ".
