With Consult-II

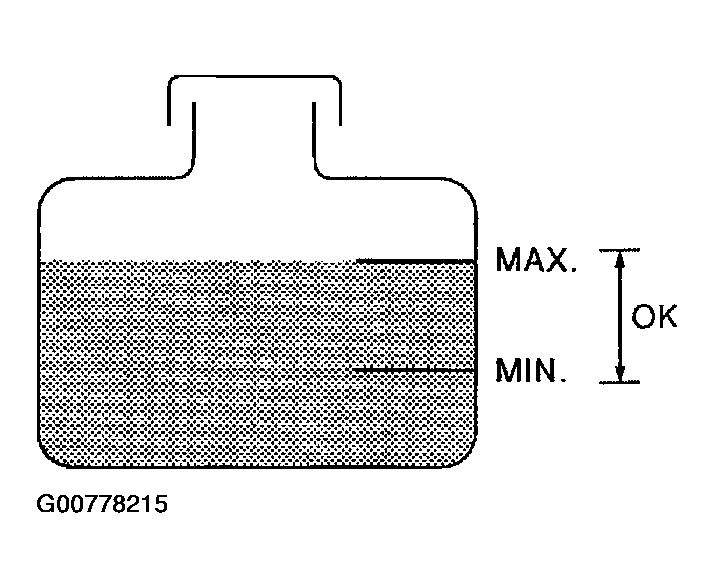

- Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".
- Turn ignition switch ON.

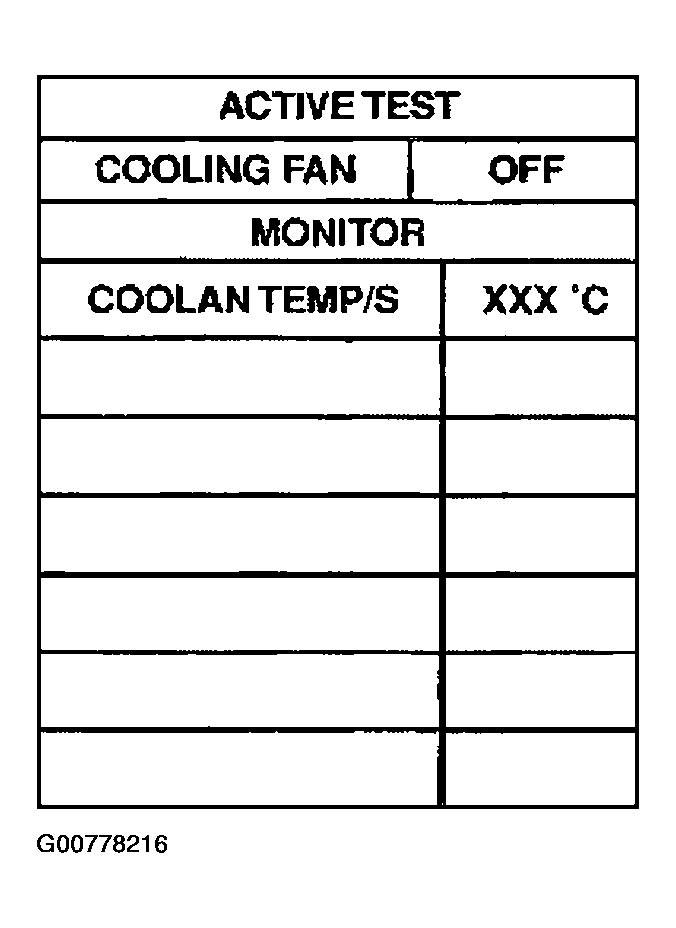

- Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
- If the results are NG, go to "DIAGNOSTIC PROCEDURE ".
