2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK FUEL FILLER CAP DESIGN
    1. Turn ignition switch OFF.
    2. Check for genuine NISSAN fuel filler cap design.

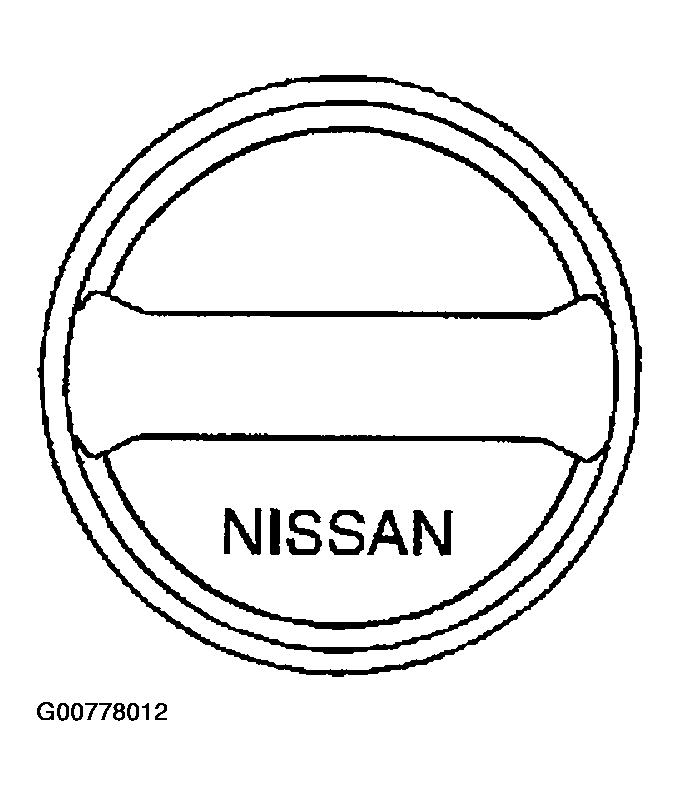

      3. Fig 1: Checking Fuel Filler Cap Design
      G00778012Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace with genuine NISSAN fuel filler cap.
  2. CHECK FUEL FILLER CAP INSTALLATION

    Check that the cap is tightened properly by rotating the cap clockwise.

    OK or NG

    1. OK: GO TO 3.
    2. NG:
      1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.
      2. Retighten until reteaching sound is heard.
  3. CHECK FUEL FILLER CAP FUNCTION

    Check for air releasing sound while opening the fuel filler cap.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 4.
  4. CHECK FUEL TANK VACUUM RELIEF VALVE

    Refer to "FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FULLER CAP) ".

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace fuel filler cap with a genuine one.
  5. CHECK EVAP PURGE LINE

    Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks, improper connection or disconnection.

    Refer to "EVAPORATIVE EMISSION SYSTEM ".

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair or reconnect the hose.
  6. CLEAN EVAP PURGE LINE

    Clean EVAP purge line (pipe and rubber tube) using air blower.

    1. GO TO 7.
  7. CHECK EVAP CANISTER VENT CONTROL VALVE

    Check the following.

    OK or NG

    1. OK: GO TO 8.
    2. NG: Repair or replace EVAP canister vent control valve and O-ring.
  8. INSTALL THE PRESSURE PUMP

    To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely.

    NOTE: Improper installation of the EVAP service port adapter to the EVAP service port may cause leaking.
