A/T Models Except ULEV
- CHECK EXHAUST AIR LEAK
- Start engine and run it at idle.

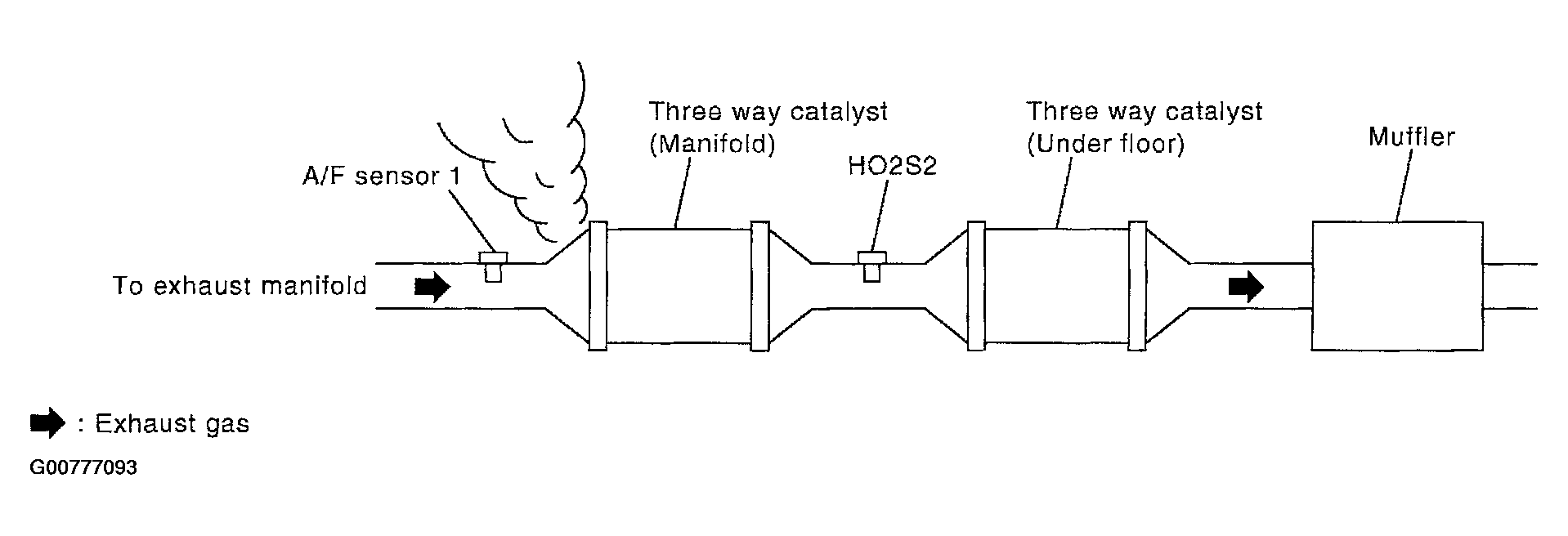

- Listen for an exhaust air leak before three way catalyst (manifold).
OK or NG
- OK: GO TO 2.
- NG: Repair or replace.
- CHECK FOR INTAKE AIR LEAK AND PCV HOSE
- Listen for an intake air leak after the mass air flow sensor.
- Check PCV hose connection.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace.
- CHECK AIR FUEL RATIO (A/F) SENSOR 1 CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.

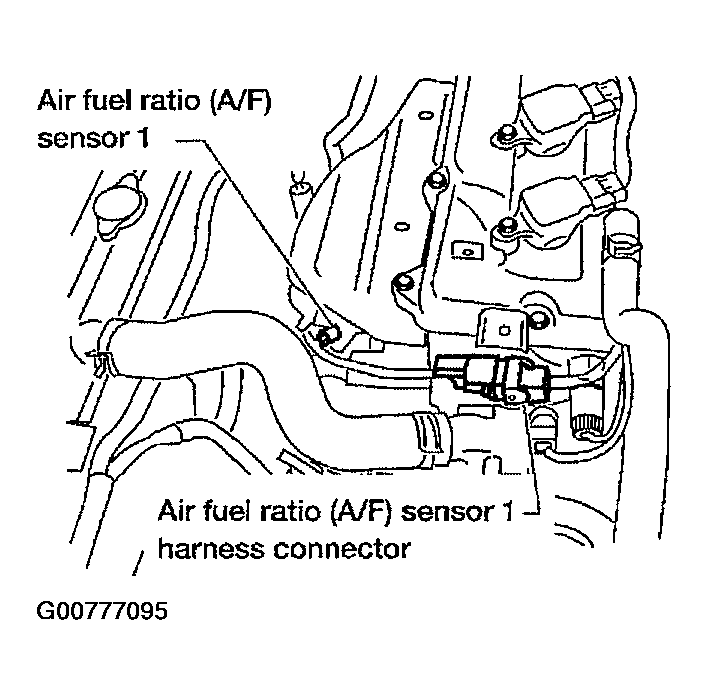

- Disconnect A/F sensor 1 harness connector and ECM harness connector.
- Check harness continuity between ECM terminals and A/F sensor 1 terminals as follows.
Refer to WIRING DIAGRAM .
