2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor

Check resistance as shown in the figure.

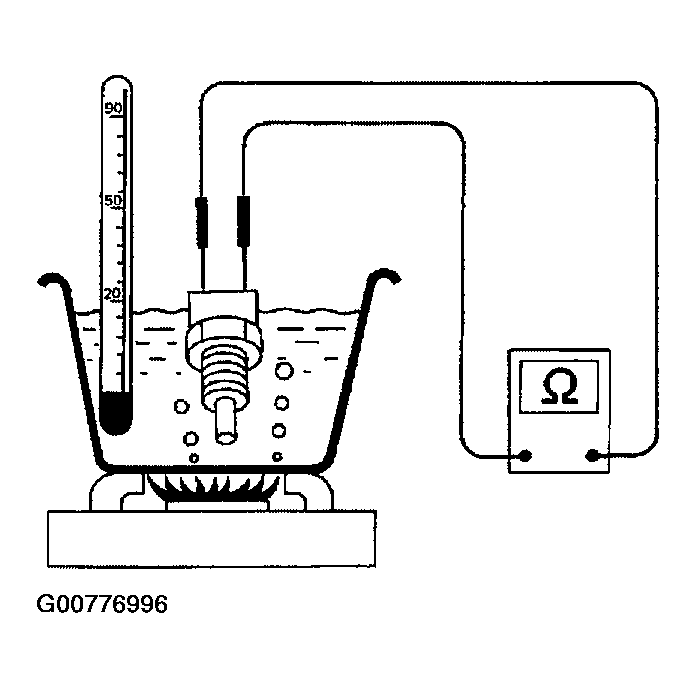

Fig 1: Checking Engine Coolant Temperature Sensor Resistance

G00776996

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

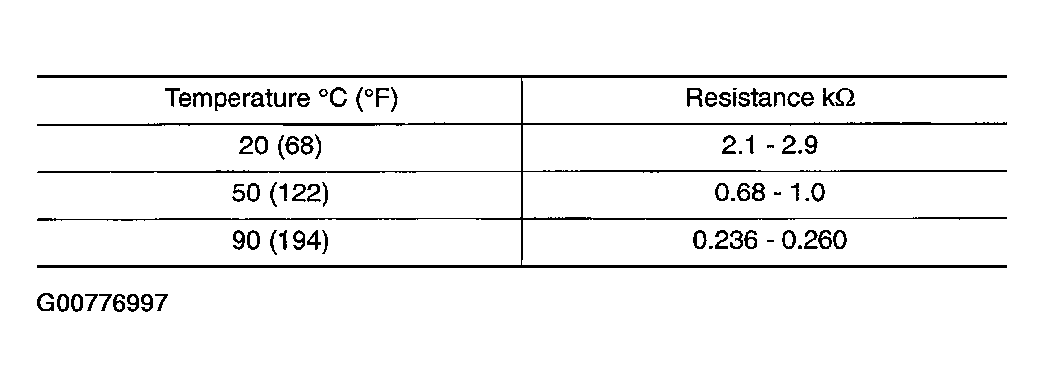

Fig 2: Engine Coolant Temperature Sensor Reference Data

G00776997

Courtesy of NISSAN MOTOR CO., U.S.A.
