2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK CRANKSHAFT POSITION SENSOR (POS)

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace crankshaft position sensor (POS).
  2. CHECK CAMSHAFT POSITION SENSOR (PHASE)

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 3.
    2. NG: Replace camshaft position sensor (PHASE).
  3. CHECK CAMSHAFT (INTAKE)

    Check the following.

    • Accumulation of debris to the signal plate of camshaft rear end
    • Chipping signal plate of camshaft rear end

    OK or NG

    1. OK: GO TO 4.
    2. NG: Remove debris and clean the signal plate of camshaft rear end or replace camshaft.

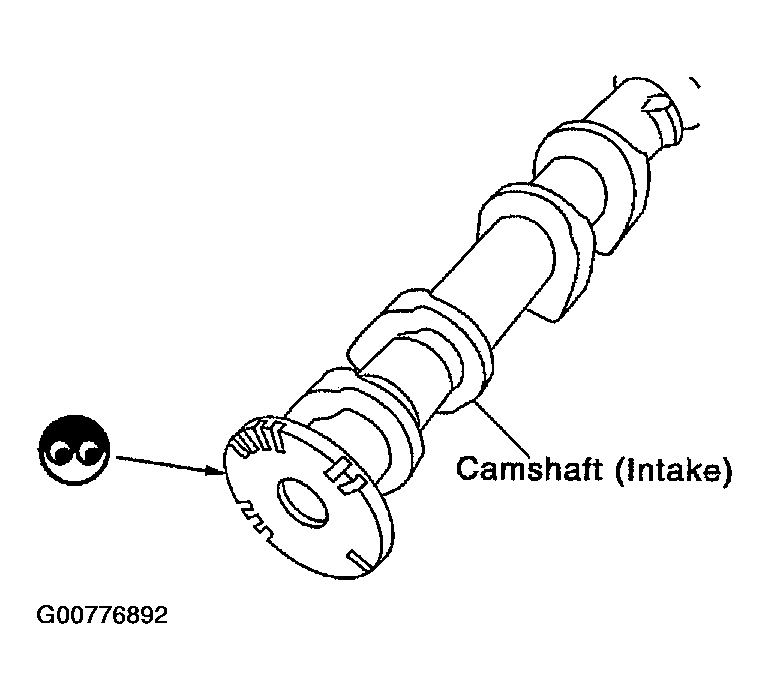

      Fig 1: Checking Camshaft (Intake)
      G00776892Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    For wiring diagram refer to "WIRING DIAGRAM " for CKP sensor (POS) and "WIRING DIAGRAM " for CMP sensor (PHASE).

    1. INSPECTION END
