2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

CHECK OVERALL FUNCTION-I
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.
3. Check "BRAKE SW1" indication under the following conditions.

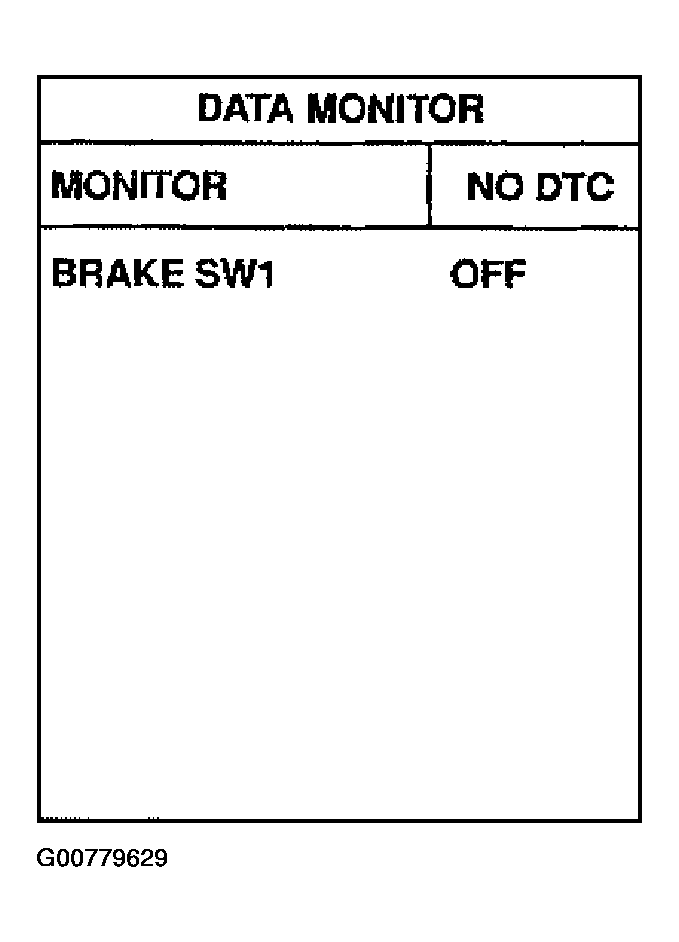

  Fig 1: Displaying Data Monitor Mode With Consult-II
  Courtesy of NISSAN MOTOR CO., U.S.A.

  M/T models

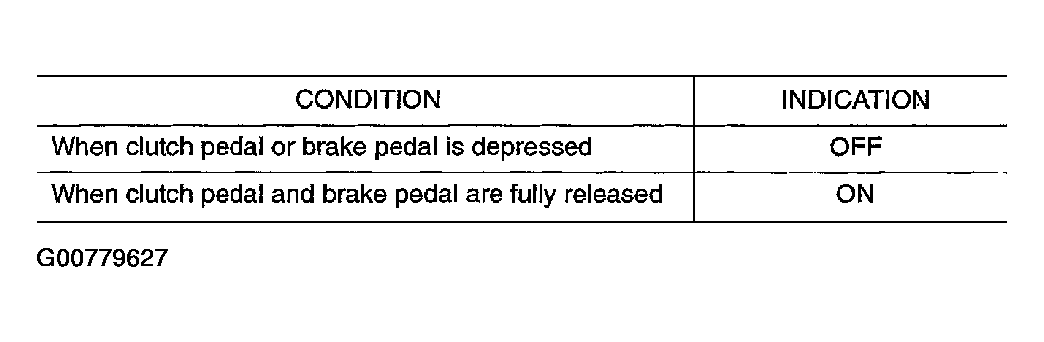

  Fig 2: BRAKE SW1 Indication Table (M/T Models)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  A/T models

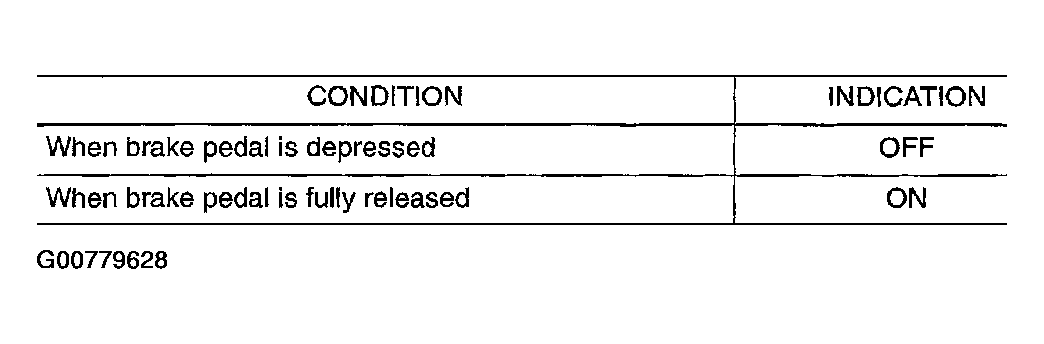

  Fig 3: BRAKE SW1 Indication Table (A/T Models)
  Courtesy of NISSAN MOTOR CO., U.S.A.
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the following conditions.

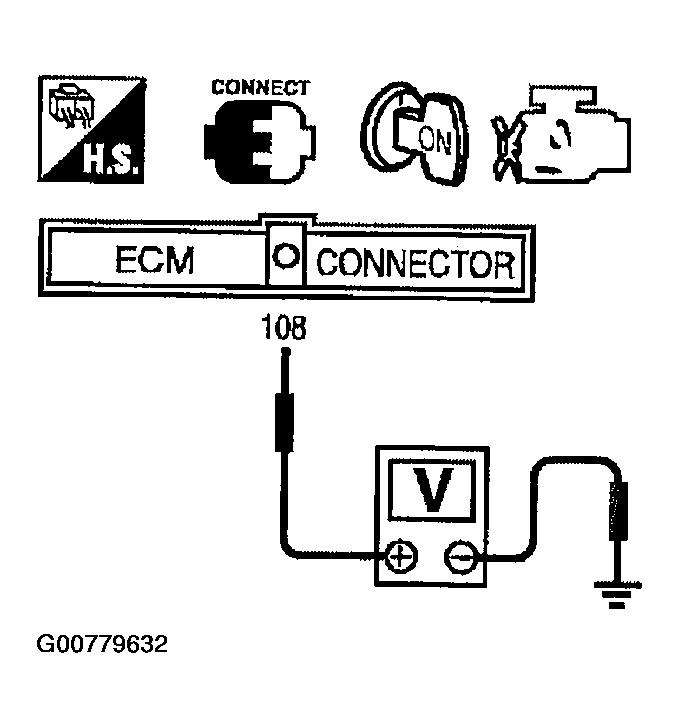

  Fig 4: Checking Voltage Between ECM Terminal 108 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  M/T models

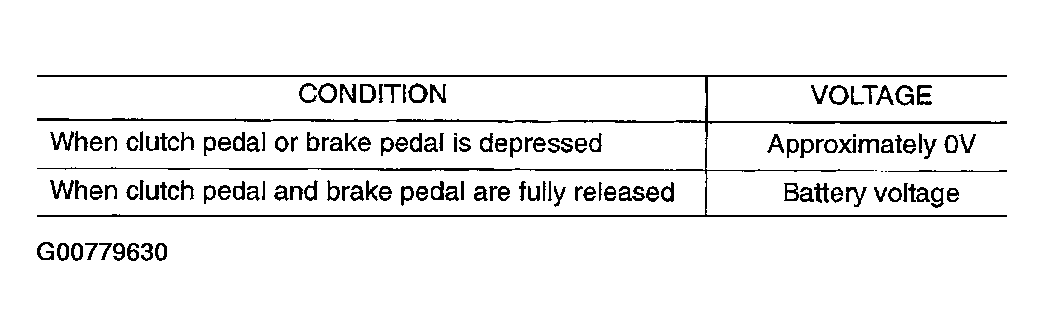

  Fig 5: Voltage Condition Table (M/T Models)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  A/T models

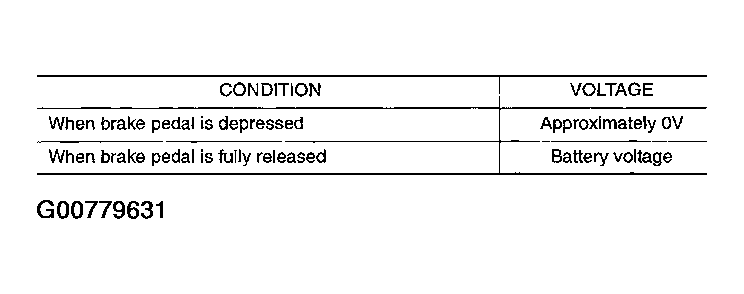

  Fig 6: Voltage Condition Table (A/T Models)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG (M/T models): GO TO 3.
3. NG (A/T models): GO TO 4.
CHECK OVERALL FUNCTION-II
WITH CONSULT-II

Check "BRAKE SW2" indication in "DATA MONITOR" mode.

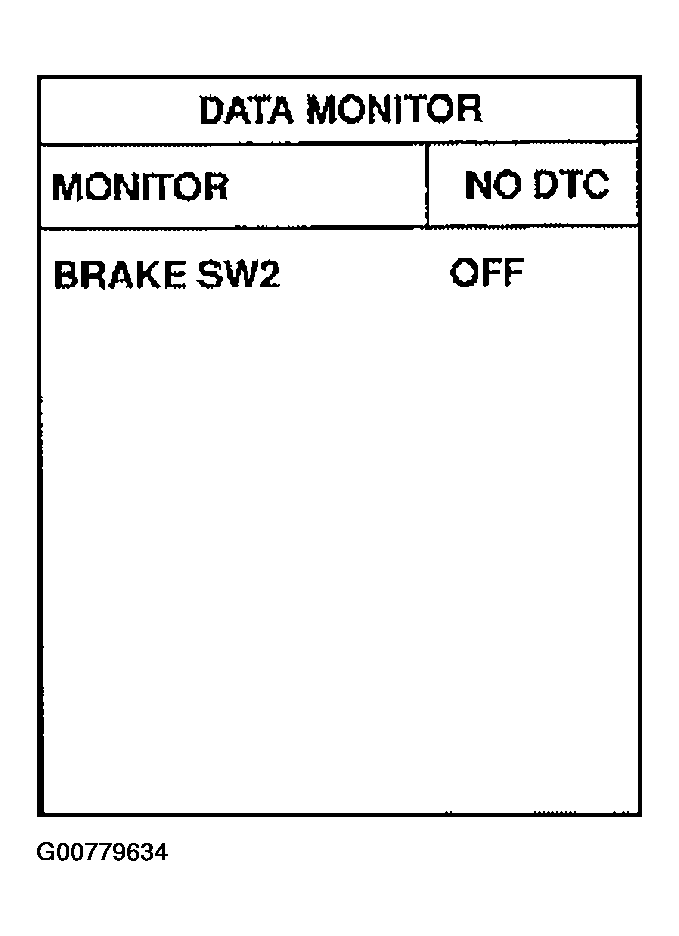

Fig 7: Displaying Data Monitor Mode With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
