Removal and Installation: Installation
Installation is in the reverse order of removal.

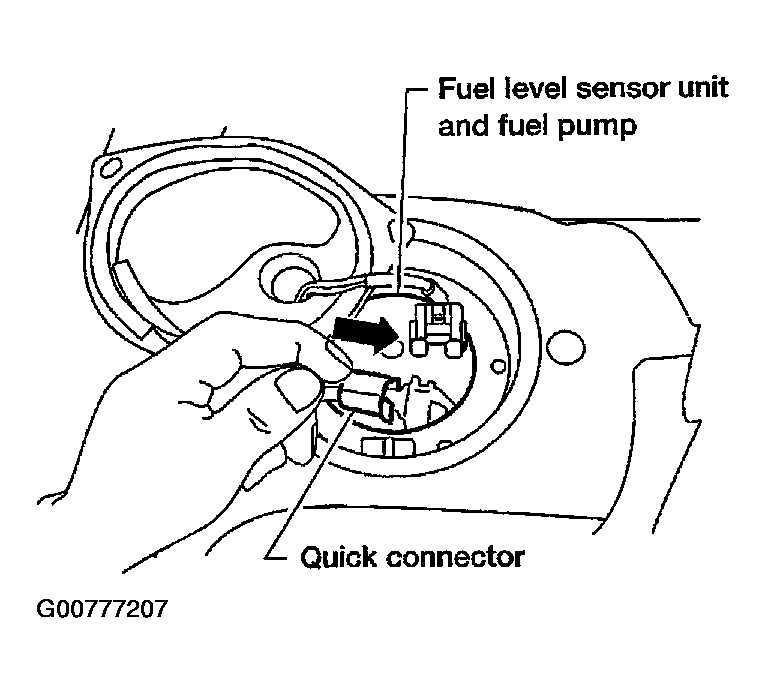

- Connect the quick connector in the order as follows:
- Align mating marks on the fuel pump outlet and the quick connector for correct installation.
- Align the push tabs with the quick connector slots.
- Insert the fuel pump outlet into the center of the quick connector until you hear a click.
- After connecting the quick connector, check that the quick connector is fully seated in the order as follows:

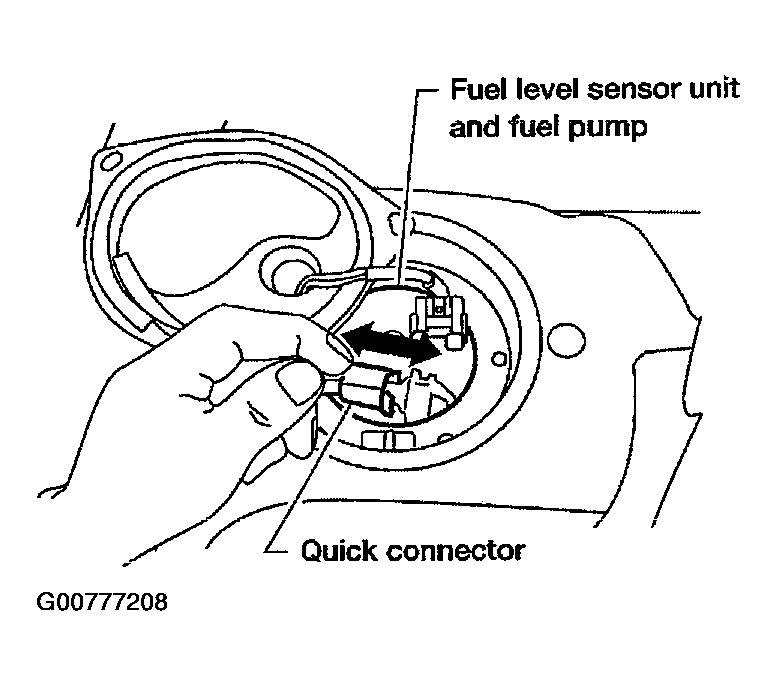

- Pull on the quick connector to make sure it is firmly connected.
- Apply fuel pressure to the fuel lines by turning the ignition switch ON (without starting the engine). Then check for fuel leaks at the hose connections.
- Start the engine and increase engine speed, verify that there are no fuel leaks.
