2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Front LH Door Unlock Sensor Check

CHECK FRONT LH DOOR UNLOCK SENSOR INPUT SIGNAL
With CONSULT-II
1. Select "DATA MONITOR" mode in "INT LAMP" with CONSULT-II.
2. Check front LH door unlock sensor ("LOCK SIG DR") in "DATA MONITOR" mode.

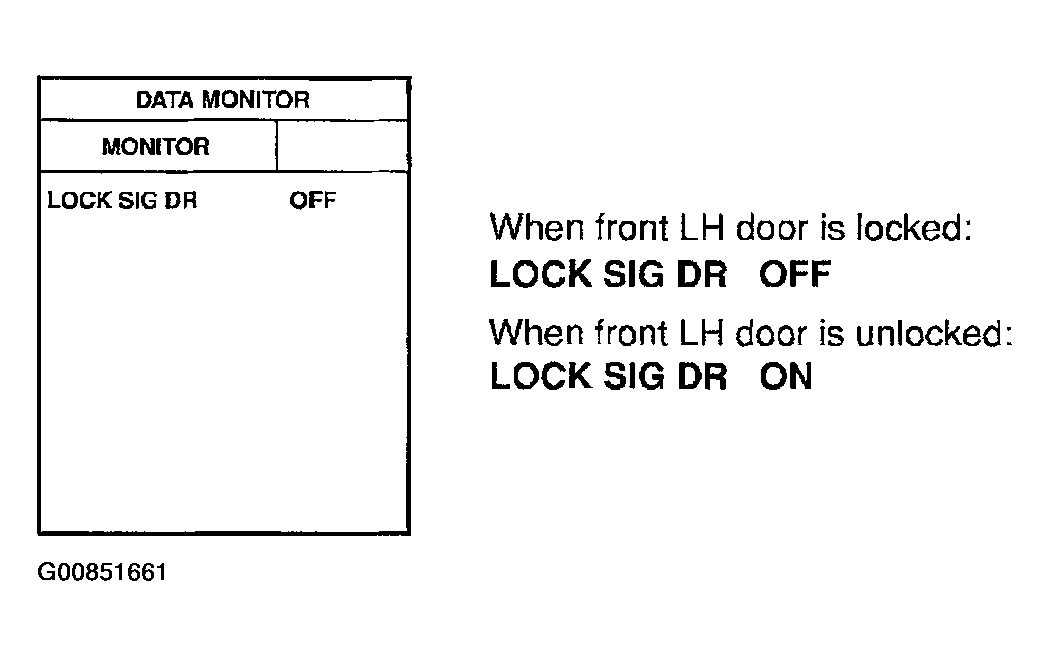

Fig 1: Identifying Front LH Door Unlock Sensor Input Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit harness connector terminal 36 and ground.

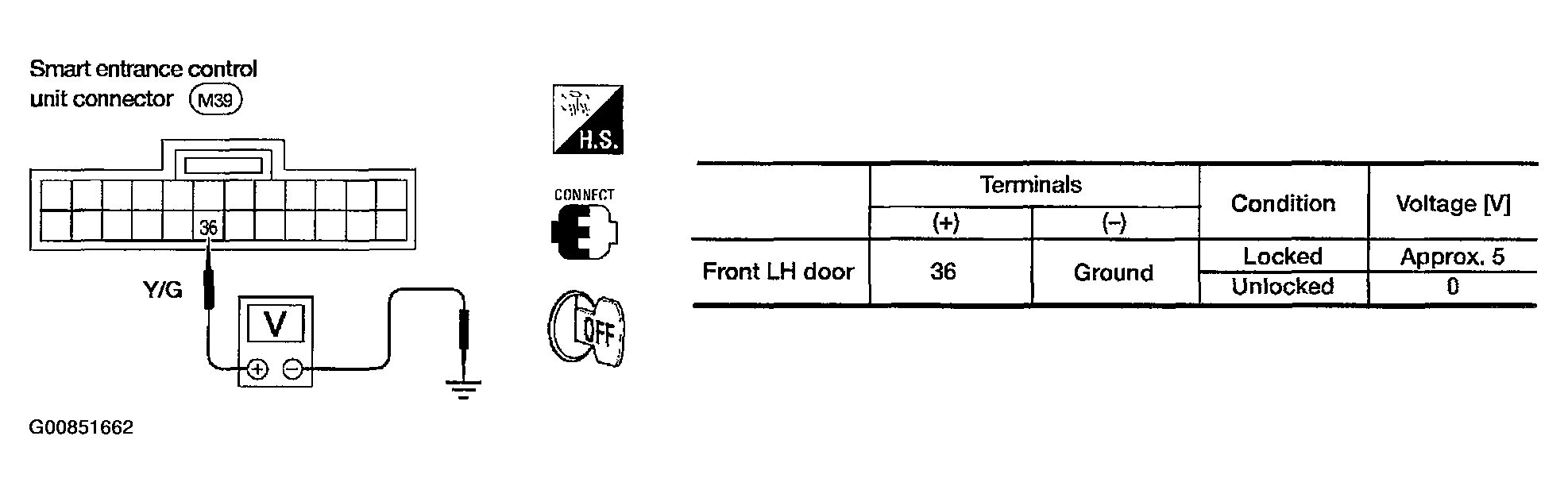

Fig 2: Identifying Voltage Between Smart Entrance Control Unit Harness Connector Terminal And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Figure ".

OK or NG
1. OK: Door unlock sensor is OK.
2. NG: GO TO 2.
CHECK FRONT LH DOOR UNLOCK SENSOR
1. Disconnect front LH door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals.

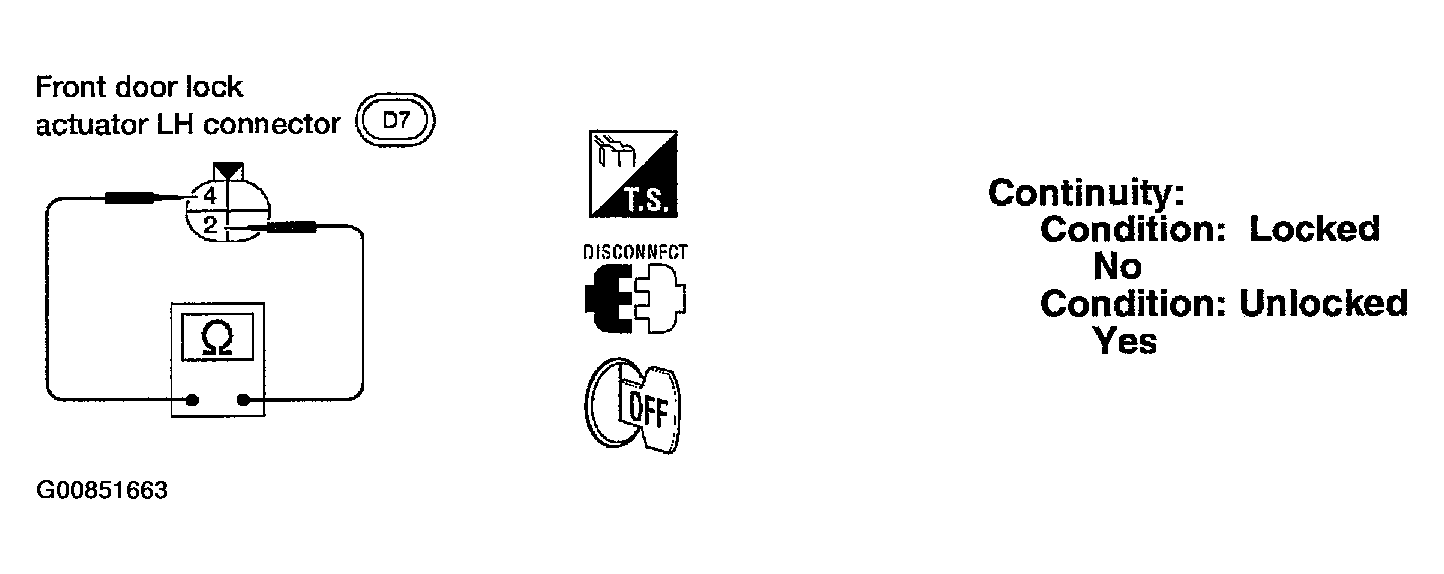

  Fig 3: Identifying Front LH Door Unlock Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check the following.
  - Door unlock sensor ground circuit
  - Harness for open or short between smart entrance control unit and door unlock sensor
2. NG: Replace door unlock sensor.
