2004 Nissan-Datsun Sentra Base, StandardFACTORY OEM SERVICE PROCEDURE
ASCD Clutch Switch (For M/T Models)
- Turn ignition switch OFF.
- Disconnect ASCD clutch switch harness connector.

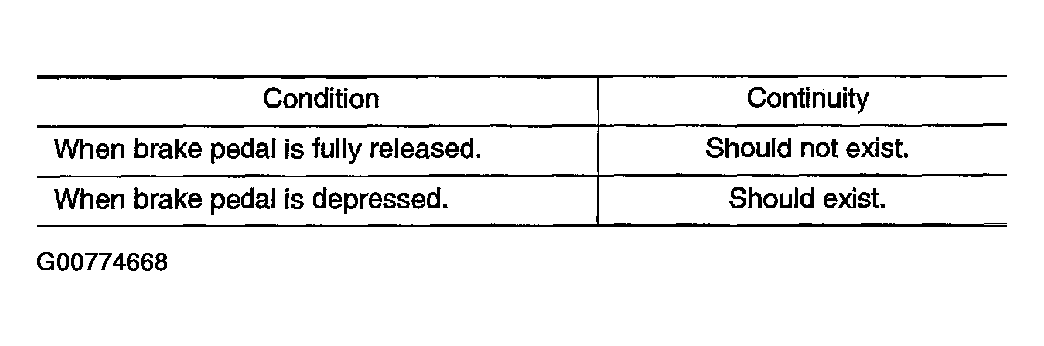

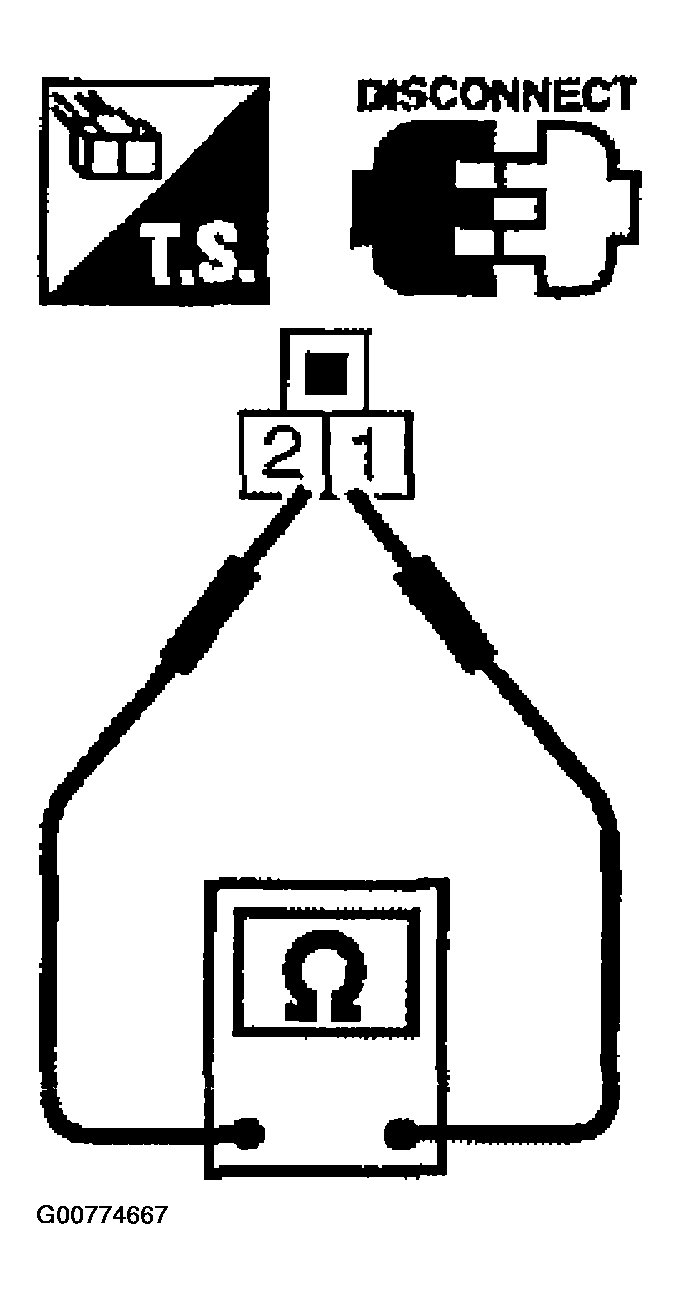

- Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, adjust ASCD clutch switch installation, refer to CLUTCH SYSTEM and perform step 3 again.
