2004 Nissan-Datsun Frontier Base, AutomaticFACTORY OEM SERVICE PROCEDURE
With GST
- Start engine and warm it up to normal operating temperature.

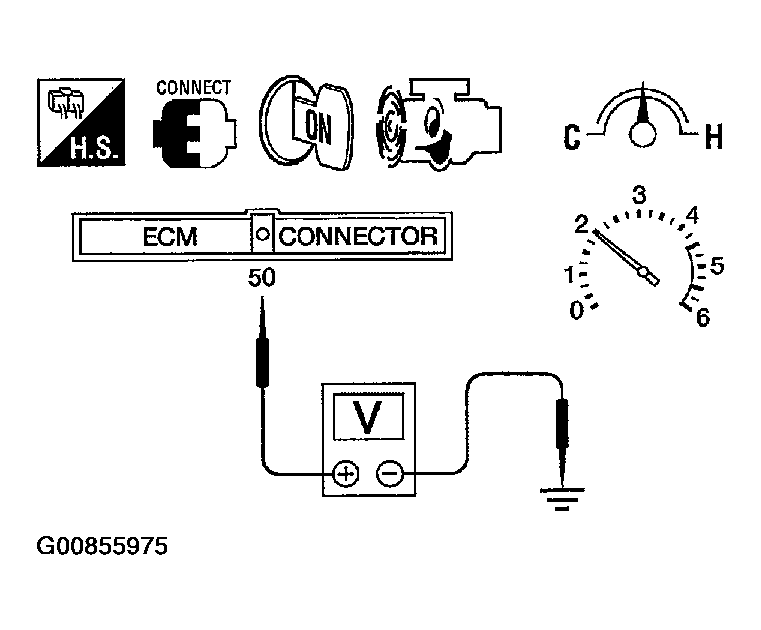

- Set voltmeter probes between ECM terminal 50 (Heated oxygen sensor 1 signal) and engine ground.
- Check the following with engine speed held at 2,000 RPM constant under no load.
- The voltage should go above 0.70V at least once.
- The voltage should go below 0.21V at least once.
- If NG, go to "DIAGNOSTIC PROCEDURE ".
