2004 Nissan-Datsun Frontier Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Overall Function Check
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring. During this check, a DTC might not be confirmed.
WITH GST
- Lift up drive wheels.
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF and wait at least 5 seconds.
- Start engine and wait at least 60 seconds.

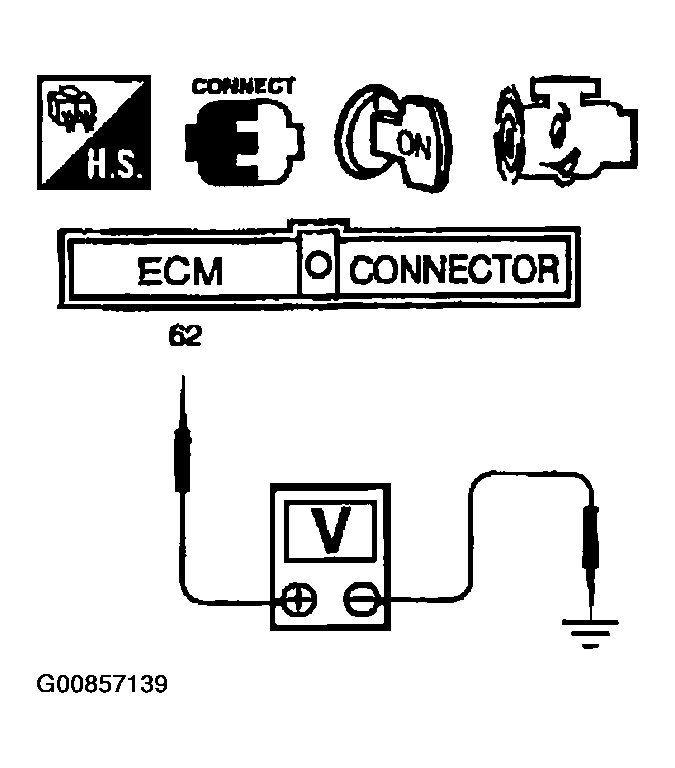

- Set voltmeter probes to ECM terminals 62 (EVAP control system pressure sensor signal) and ground.
- Check EVAP control system pressure sensor value at idle speed and note it.
- Establish and maintain the following conditions for at least 1 minute.
