2004 Nissan-Datsun Frontier Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

Turn ignition switch OFF.
Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector which is located behind the fuse box cover.
Turn ignition switch ON.

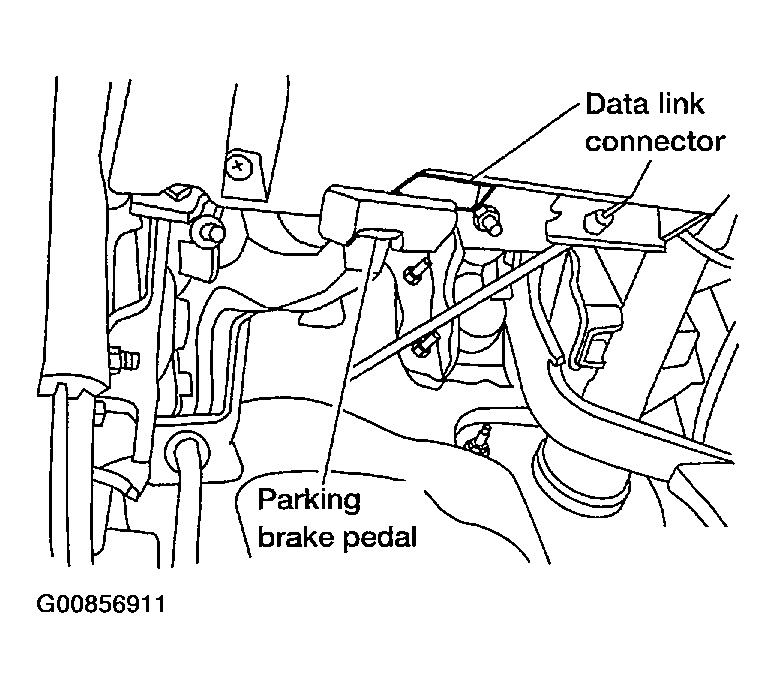

Fig 1: Connecting Consult-II And Consult-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

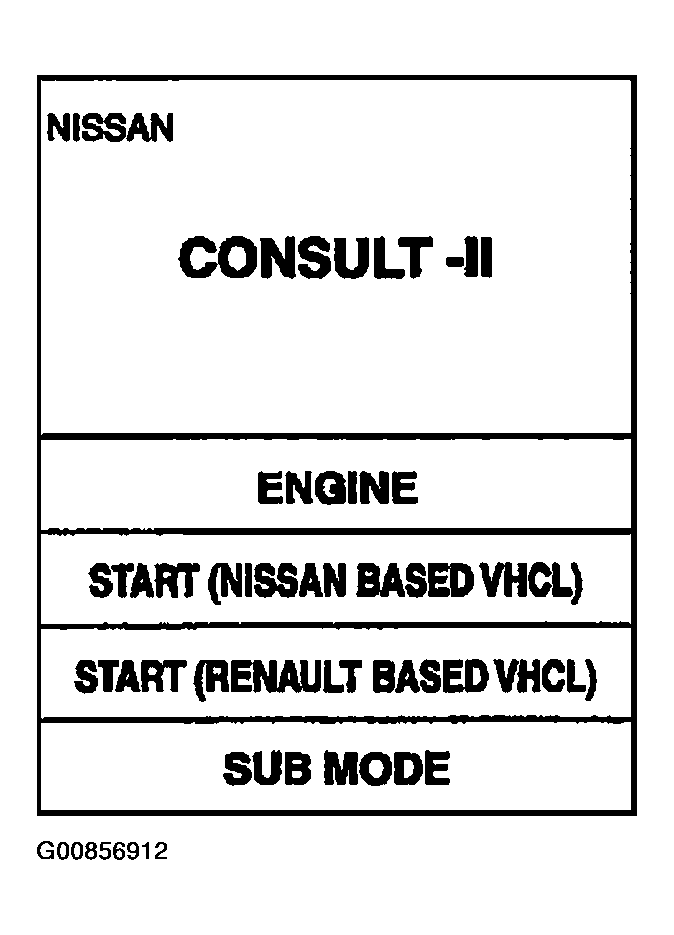

Fig 2: Scan Tool Display - Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

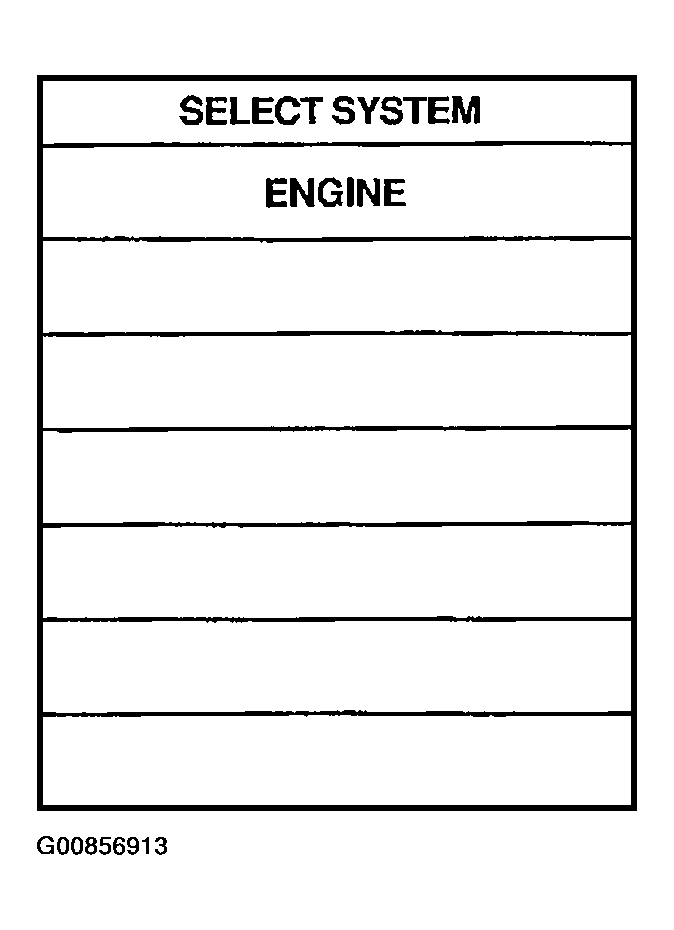

Fig 3: Scan Tool Display - Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual .

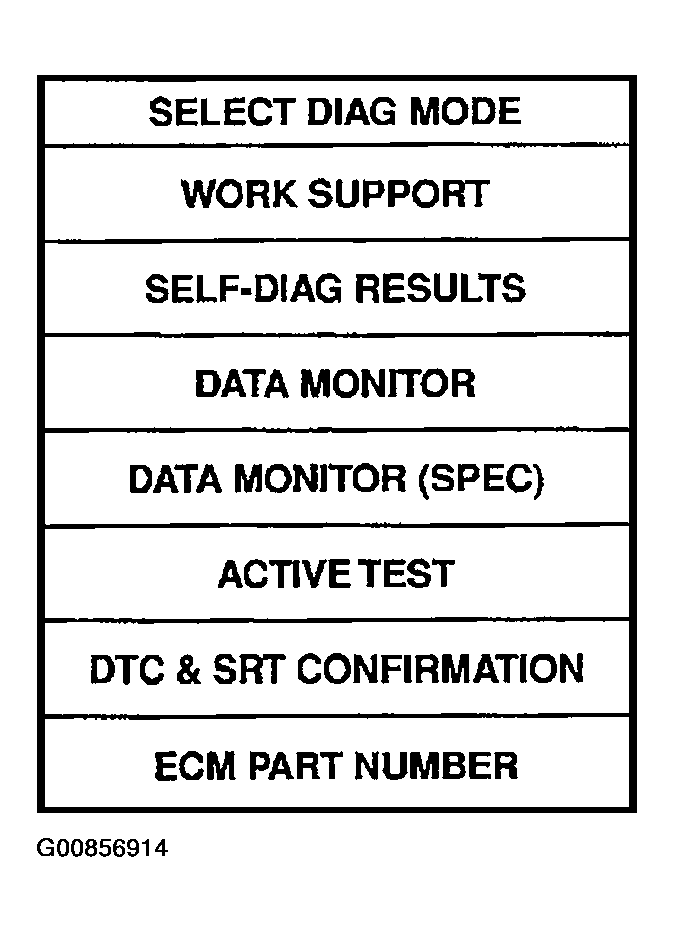

Fig 4: Scan Tool Display - Select Diag Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
