2004 Nissan-Datsun Frontier Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Pressure Regulator Check
- Stop engine and disconnect fuel pressure regulator vacuum hose from intake manifold.
- Plug intake manifold with a rubber cap.

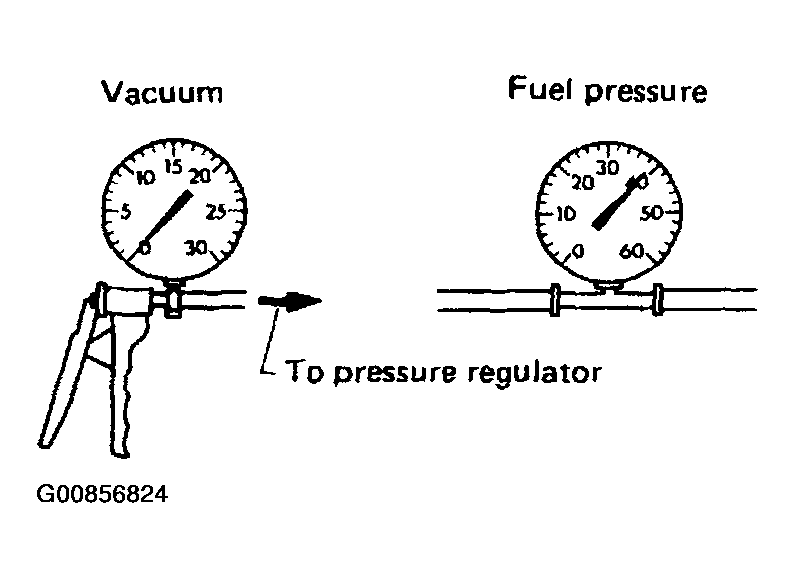

- Connect variable vacuum source to fuel pressure regulator.
- Start engine and read indication of fuel pressure gauge as vacuum is changed.
Fuel pressure should decrease as vacuum increases. If results are unsatisfactory, replace fuel pressure regulator.
