2003 Nissan-Datsun Sentra SE-R, StandardFACTORY OEM SERVICE PROCEDURE

Component Testing

To test swirl control valve control vacuum check switch, see Fig 1.
To test swirl control valve control solenoid valve, see Fig 2.
To test swirl control valve control valve actuator, see Fig 3.

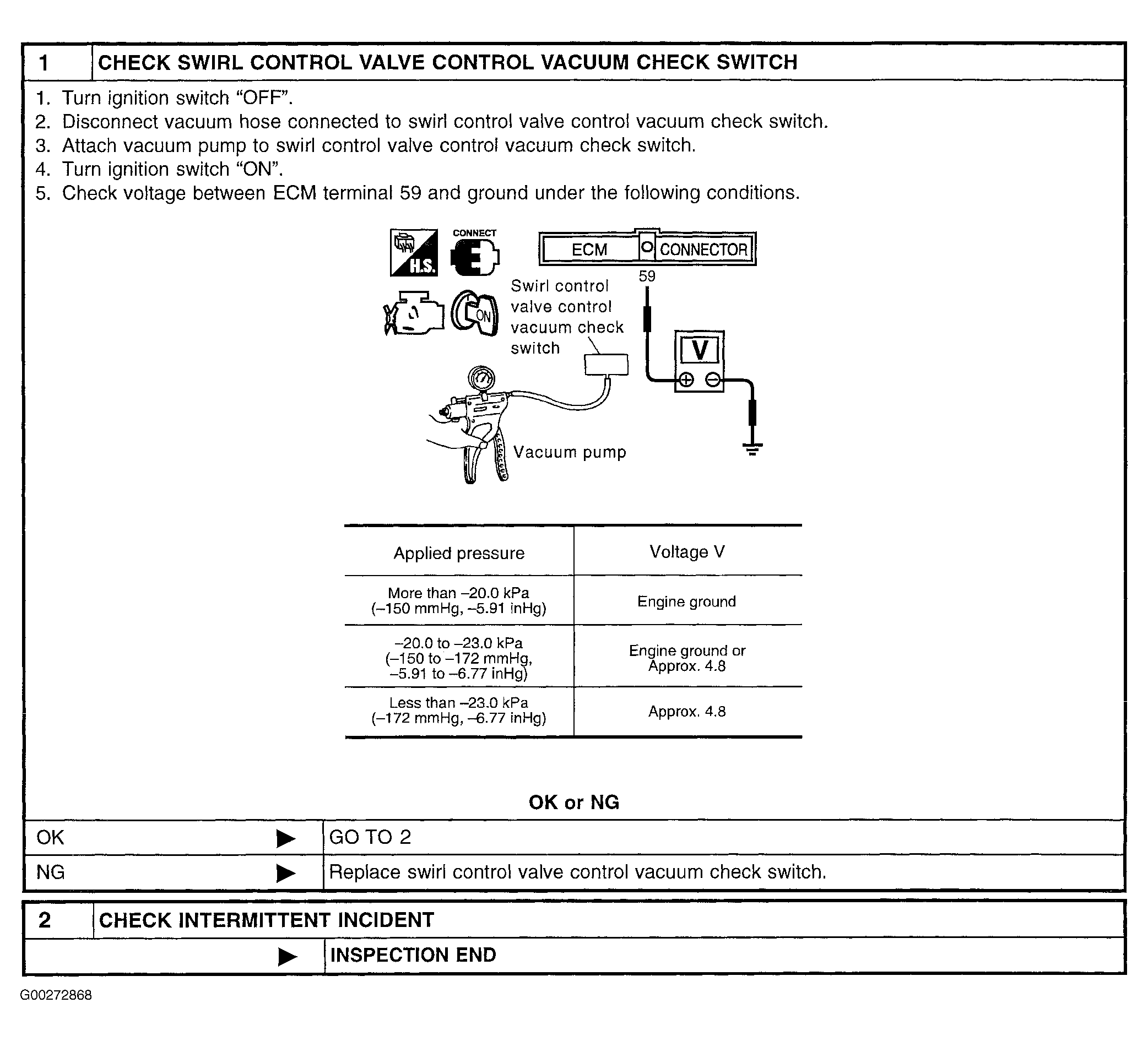

Fig 1: Testing Swirl Control Valve Control Vacuum Check Switch (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.
