Removal And Installation: Installation

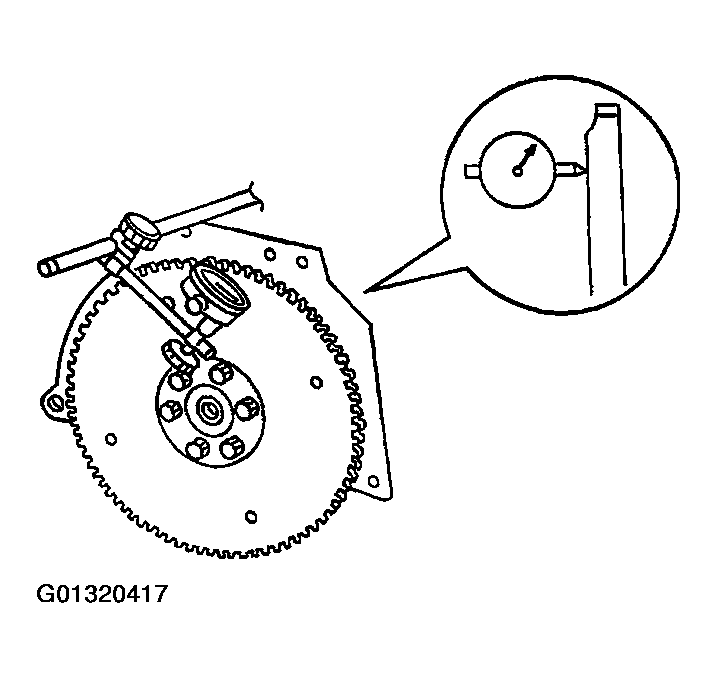

- Drive plate runoutCAUTION: Do not allow any magnetic materials to contact the ring gear teeth.
Maximum allowable runout:
- If this runout is out of allowance, replace drive plate and ring gear.

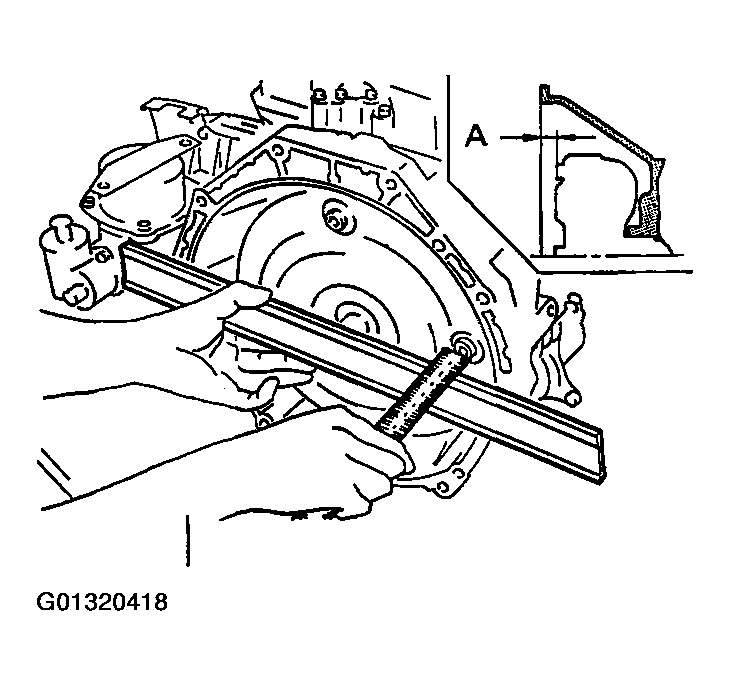

- When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.
Distance "A": 14 mm (0.55 in) or more

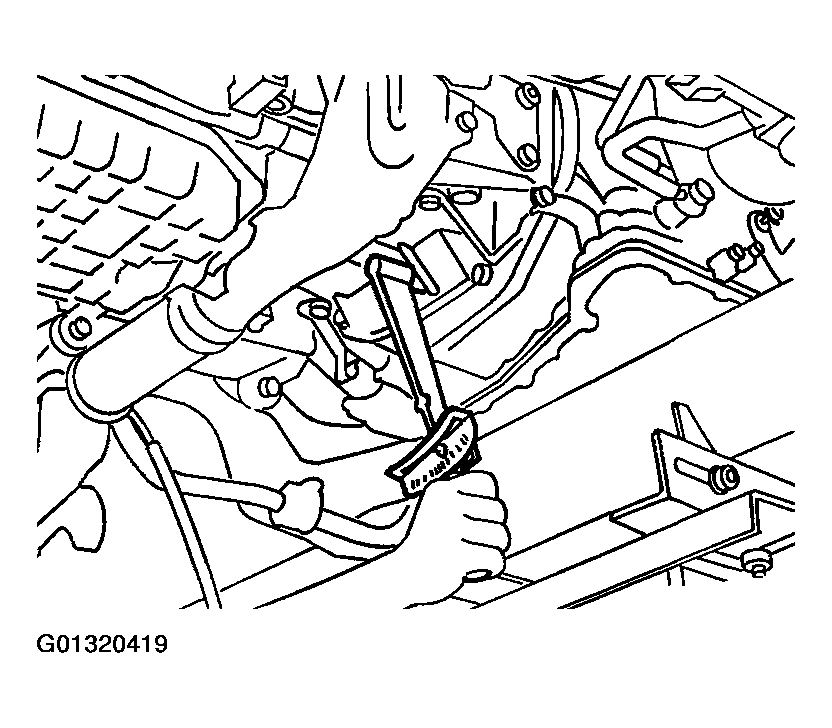

- Install bolts fixing converter to drive plate.
- With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding.

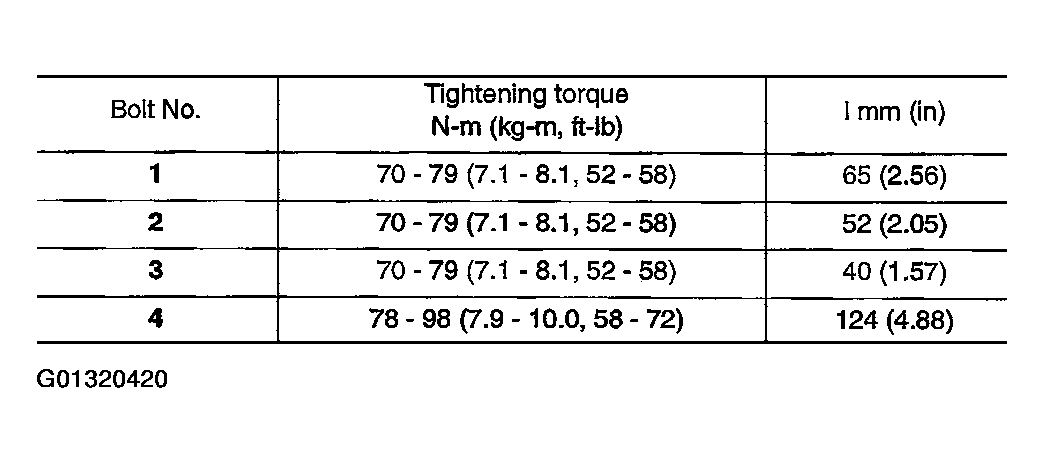

- Tighten bolts securing transaxle.
- Tighten LH mounting bracket bolts to the specified torque. Refer to ENGINE ASSEMBLY .
- Tighten center member bolts to the specified torque. Refer to .
- Tighten rear plate cover bolts to the specified torque. Refer to OIL PAN AND OIL STRAINER .
