Consult-II Inspection Procedure
- Turn ignition switch OFF.

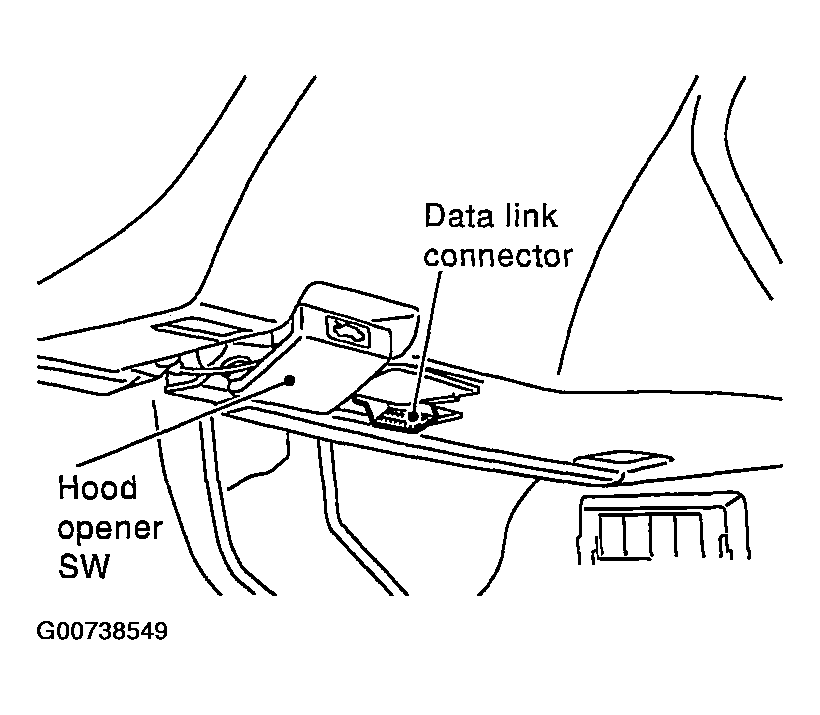

- Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
- Turn ignition switch ON.
- Turn ASCD main switch ON.

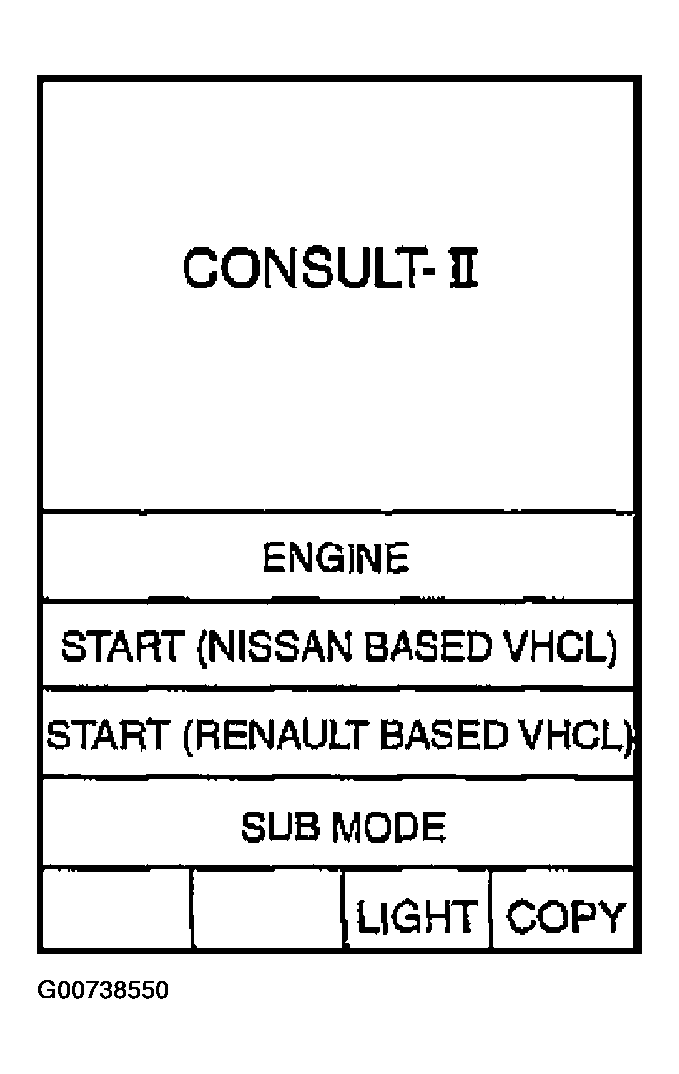

- Touch START (NISSAN BASED VHCL) (on CONSULT-II display).
- Touch ASCD.
If "ASCD" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

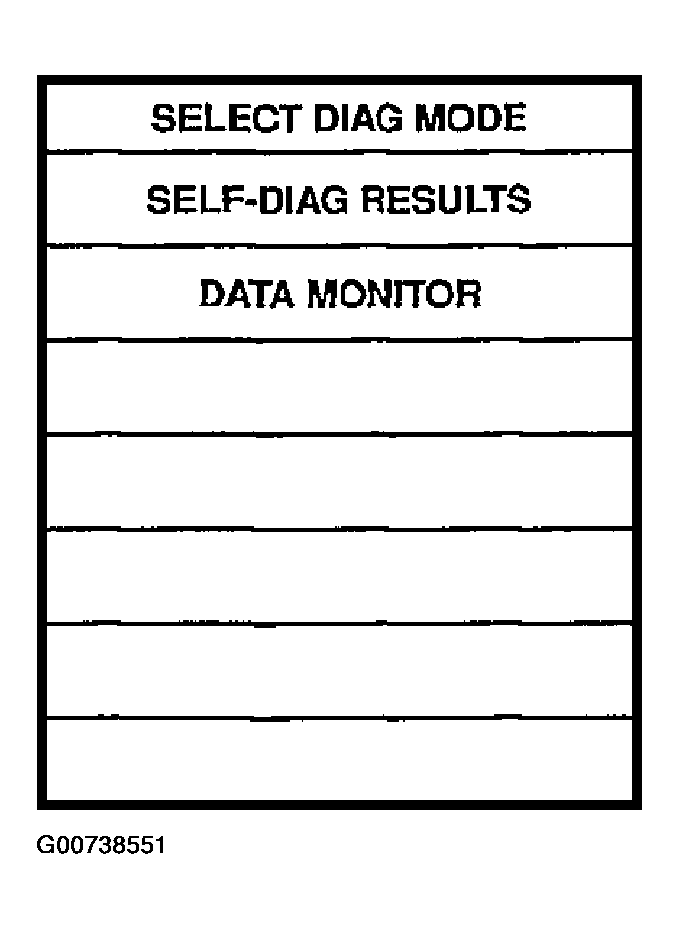

- Touch SELF-DIAG RESULTS.

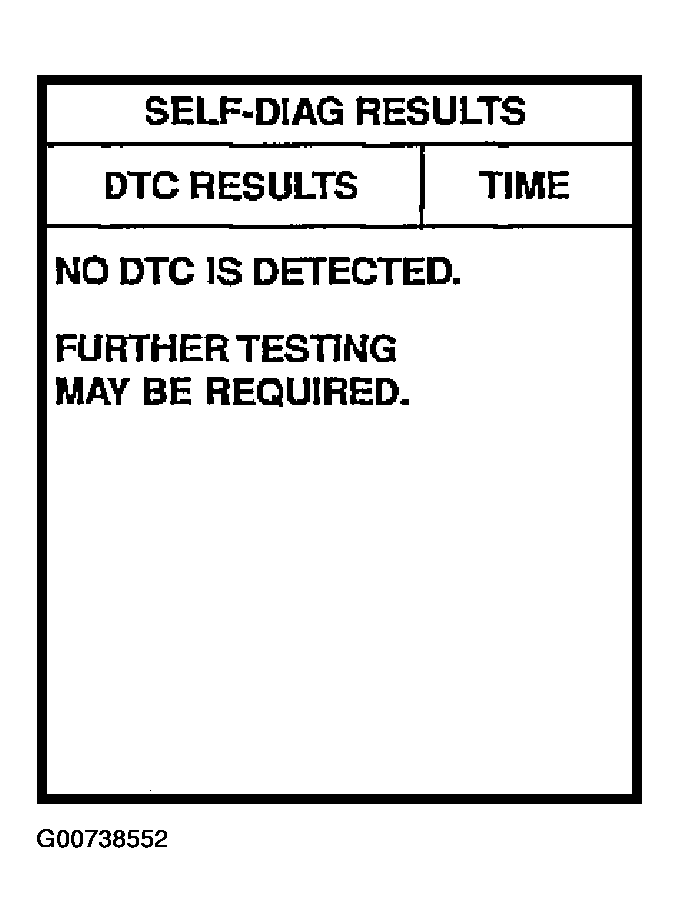

- Self-diagnostic results are shown on display
Refer to CONSULT-II SELF-DIAGNOSTIC RESULTS .
- Self-diagnostic results are shown on display

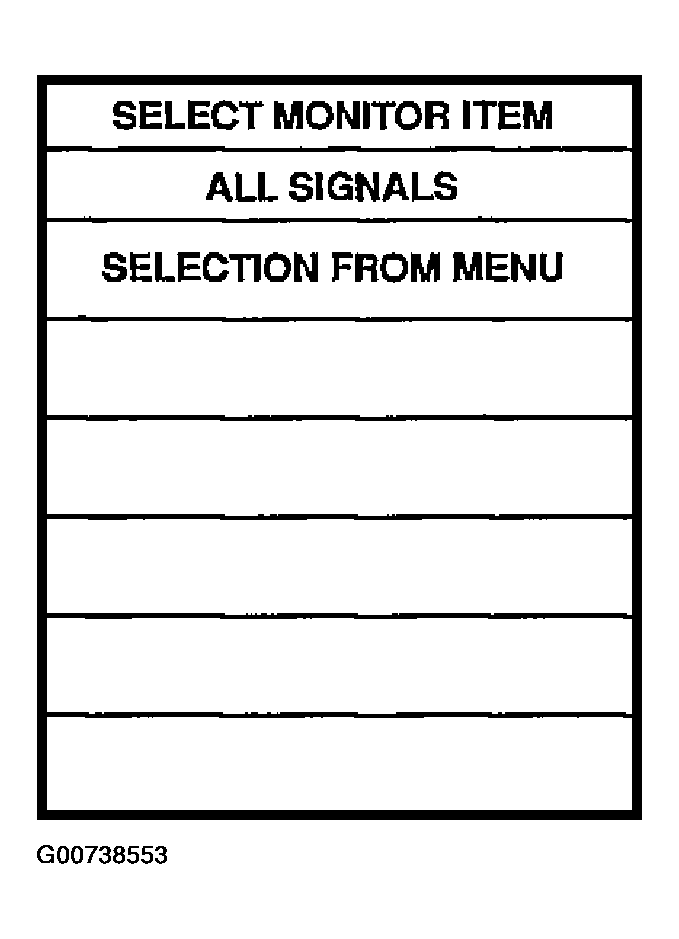

- Touch DATA MONITOR.
- Touch START.

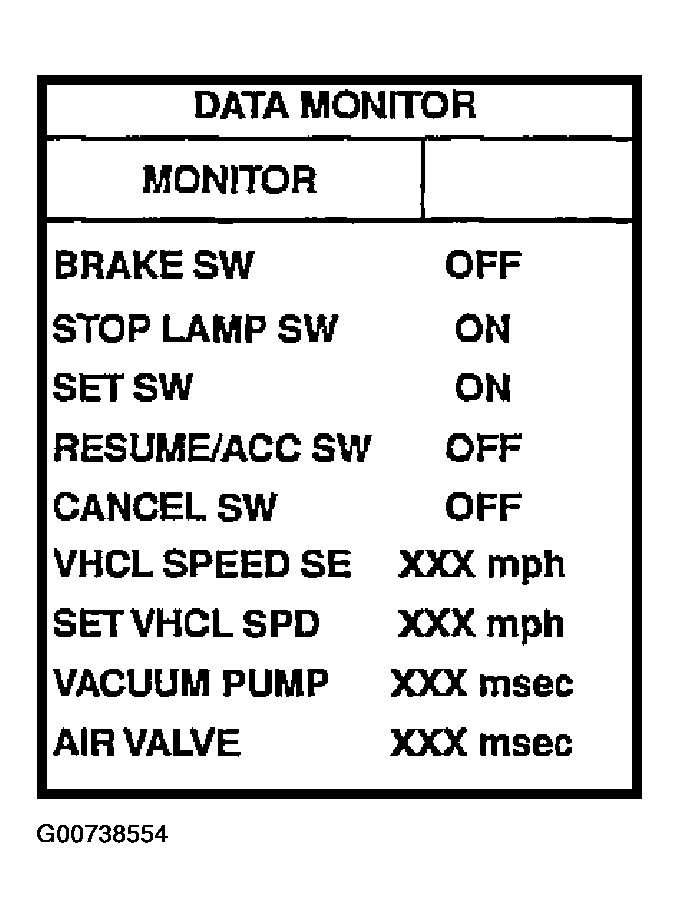

- Data monitor results are shown on display
Refer to CONSULT-II SELF-DIAGNOSTIC RESULTS .
For further information, read the CONSULT-II Operation Manual .
