Combination Switch Matrix

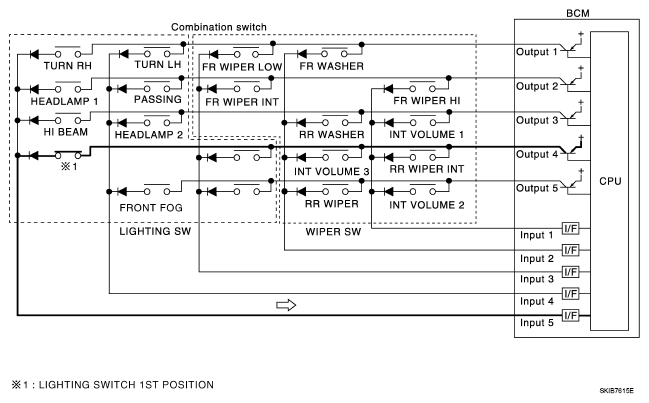

Combination switch consists of INPUT circuit and OUTPUT circuit.
Combination switch INPUT-OUTPUT system list
| System | OUTPUT 1 | OUTPUT 2 | OUTPUT 3 | OUTPUT 4 | OUTPUT 5 |
|---|---|---|---|---|---|
| INPUT 1 | - | FR WASHER | FR WIPER LOW | TURN LH | TURN RH |
| INPUT 2 | FR WIPER HI | - | FR WIPER INT | PASSING | HEADLAMP 1 |
| INPUT 3 | INT VOLUME 1 | RR WASHER | - | HEADLAMP 2 | HI BEAM |
| INPUT 4 | RR WIPER INT | INT VOLUME 3 | - | - | TAIL LAMP |
| INPUT 5 | INT VOLUME 2 | RR WIPER | - | FR FOG | - |
