2003 Nissan-Datsun Frontier Base, AutomaticFACTORY OEM SERVICE PROCEDURE
SRT Set Timing

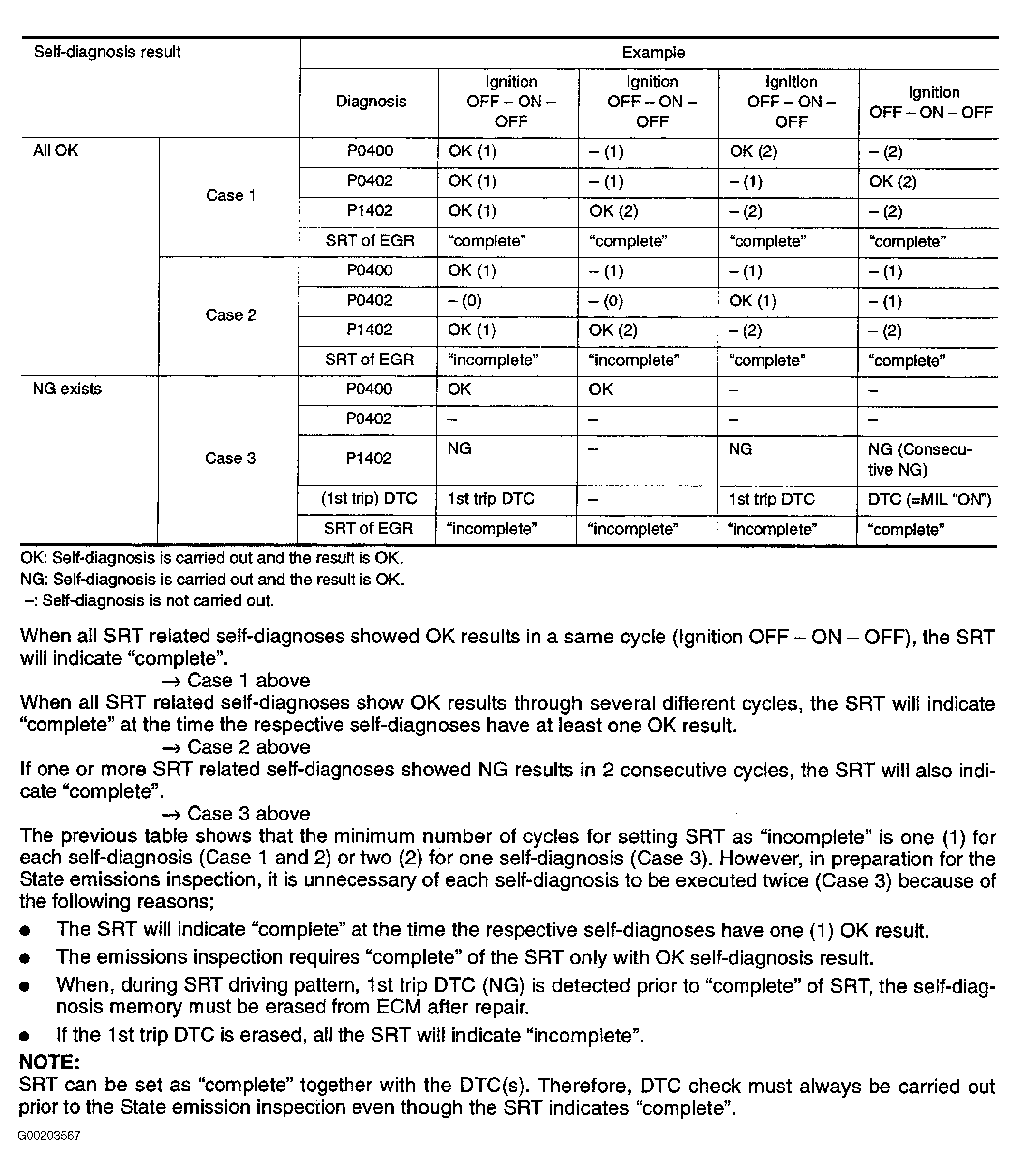

SRT is set as CMPLT after self-diagnosis has been performed one or 2 times. Completion of SRT is done regardless of whether result is OK or NG. Set timing is different between OK and NG. See Fig 1 .
