2002 Nissan-Datsun Sentra SE-R, StandardFACTORY OEM SERVICE PROCEDURE

Key Interlock Cable: Installation

WARNING: This page is about a different variant/trim than selected.

Turn ignition key to lock position.
Set A/T selector lever to P position.
Set key interlock cable to steering lock assembly and install lock plate.

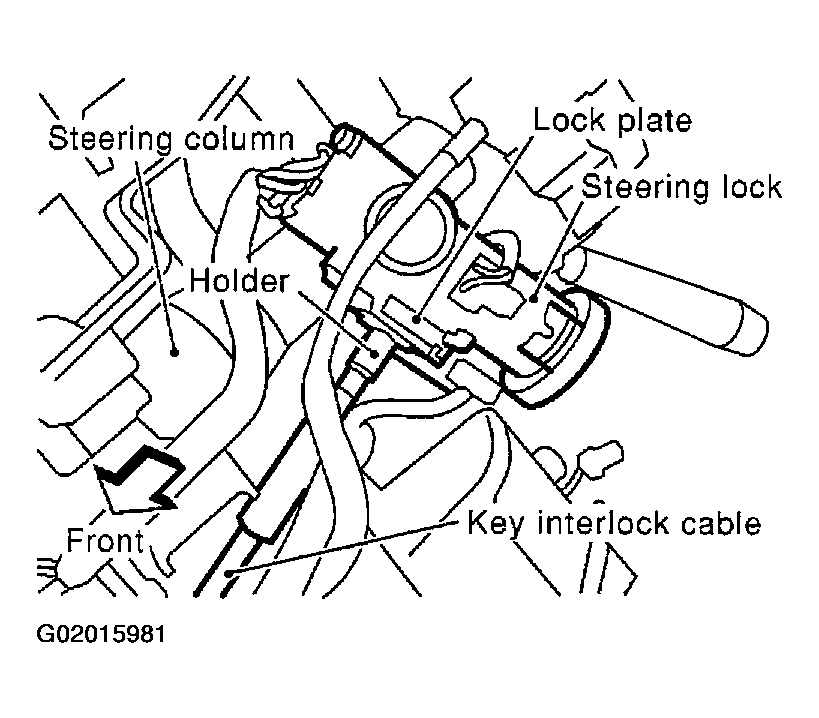

Fig 1: Removing Key Interlock Cable (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Clamp cable to steering column and attach to control cable with band.
Insert interlock rod into adjuster holder.

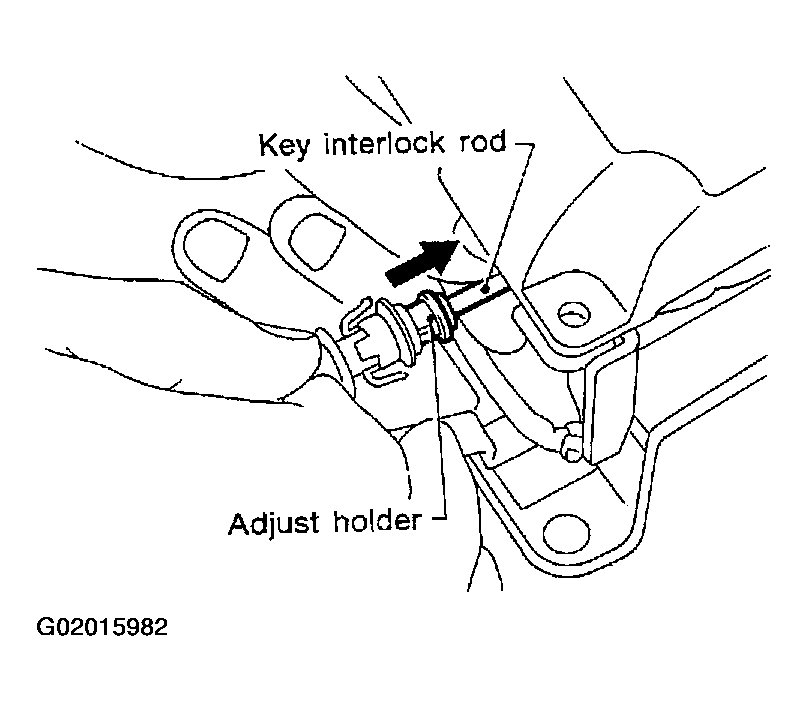

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to connect adjuster holder to interlock rod.

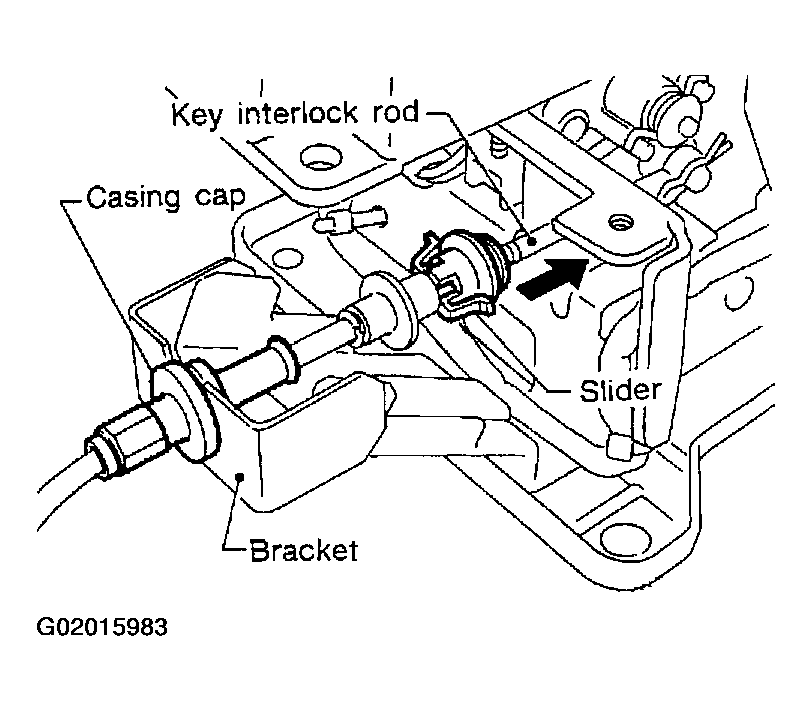

Fig 3: Inserting Slider To Connect Adjuster Holder To Interlock Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
