2002 Nissan-Datsun Sentra SE-R, StandardFACTORY OEM SERVICE PROCEDURE

Section 11 (Automatic Transaxle Re4F03B): Assembly: Assembly(4)

WARNING: This page is about a different variant/trim than selected.

Install final drive assembly on transmission case.

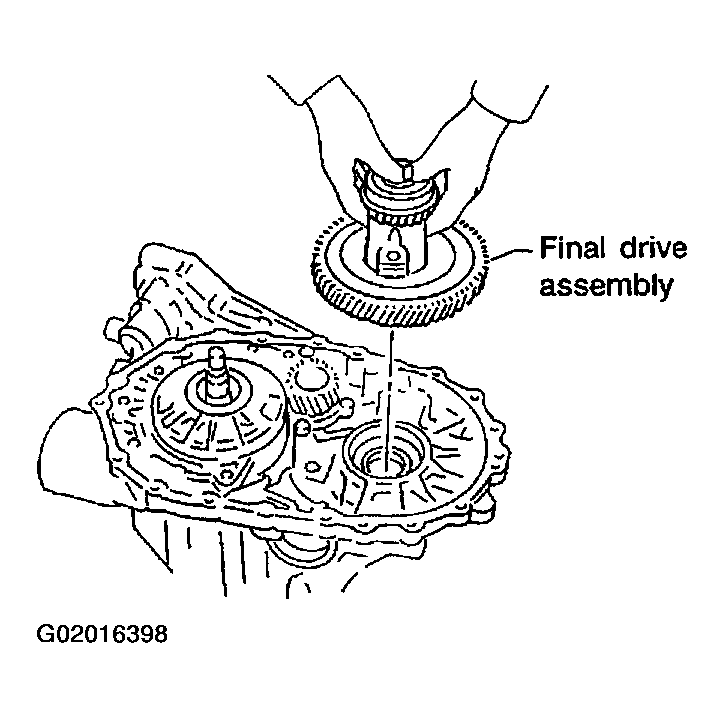

Fig 1: Installing Final Drive Assembly On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil tube on converter housing.

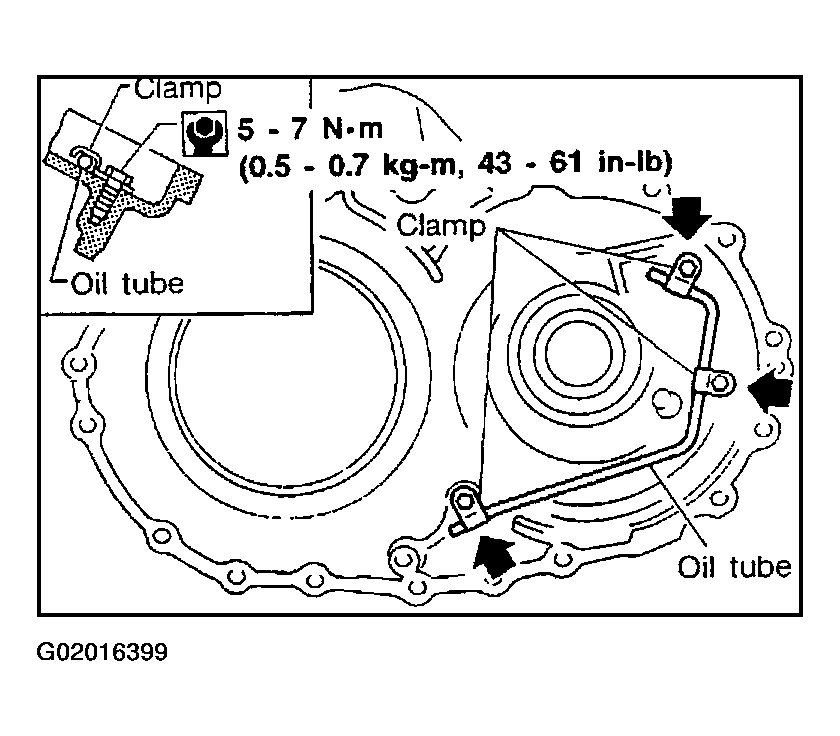

Fig 2: Installing Oil Tube On Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring on differential oil port of transmission case.
Install converter housing on transmission case.
- Apply locking sealant to mating surface of converter housing .

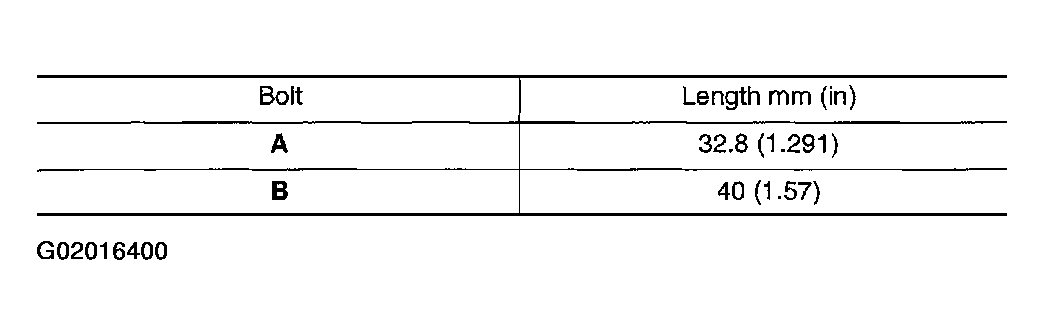

Fig 3: Bolts Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
