2002 Nissan-Datsun Sentra SE-R, StandardFACTORY OEM SERVICE PROCEDURE
Active Test Procedure
NOTE:
When conducting Active test, vehicle must be stationary. When ABS warning lamp stays on, never conduct Active test.
- Turn ignition switch OFF.
- Connect CONSULT-II to data link connector. See Figure .
- Start engine.
- Touch "START" on CONSULT-II screen.
- Touch "ABS".
- Touch "ACTIVE TEST".
- Select active test item by touching screen.
- Touch "START".
- Carry out the active test by touching screen key.

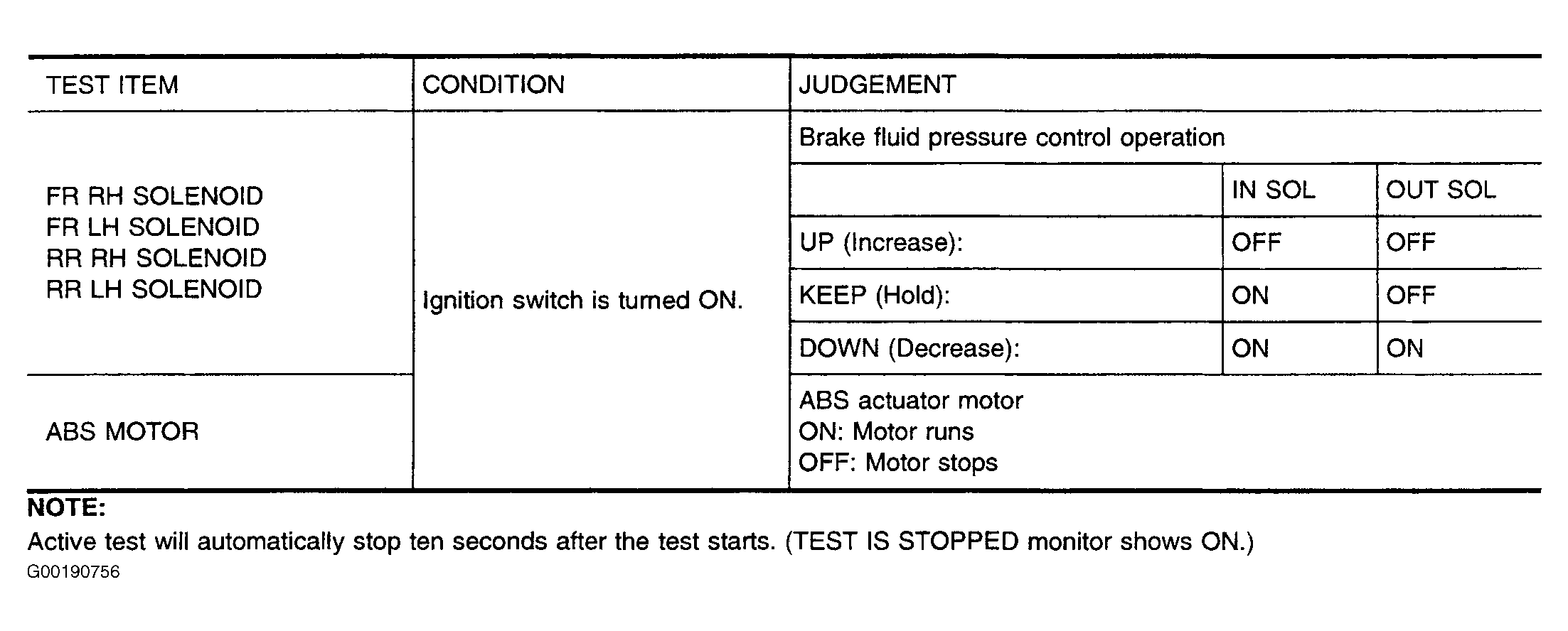

- For active test mode descriptions, see Fig 1 .
