2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Final Drive: Disassembly

Remove final gear.

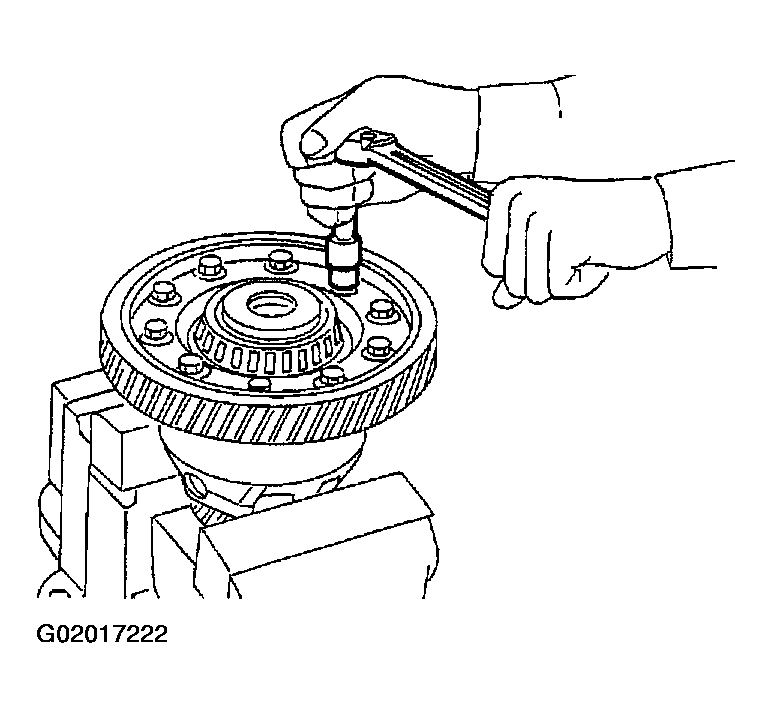

Fig 1: Removing Final Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out differential side bearings.
- Be careful not to mix up the right and left bearings.

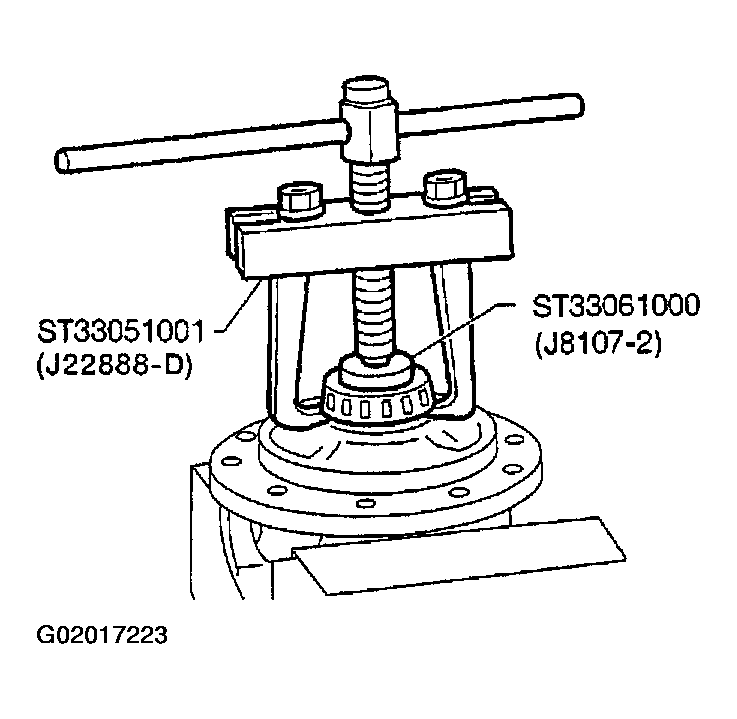

Fig 2: Removing Differential Side Bearings (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race and side bearing adjusting shim from transaxle case.

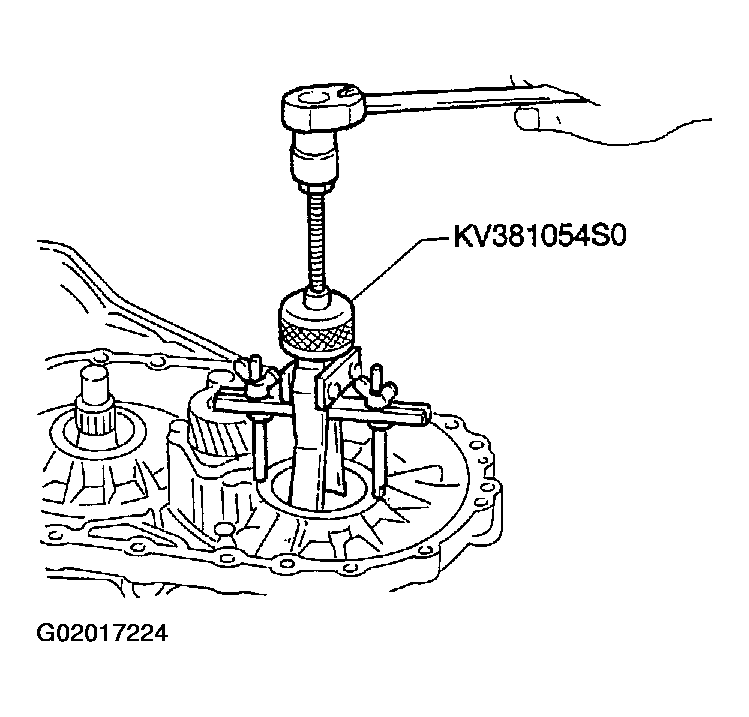

Fig 3: Removing Differential Side Bearings (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove speedometer drive gear.

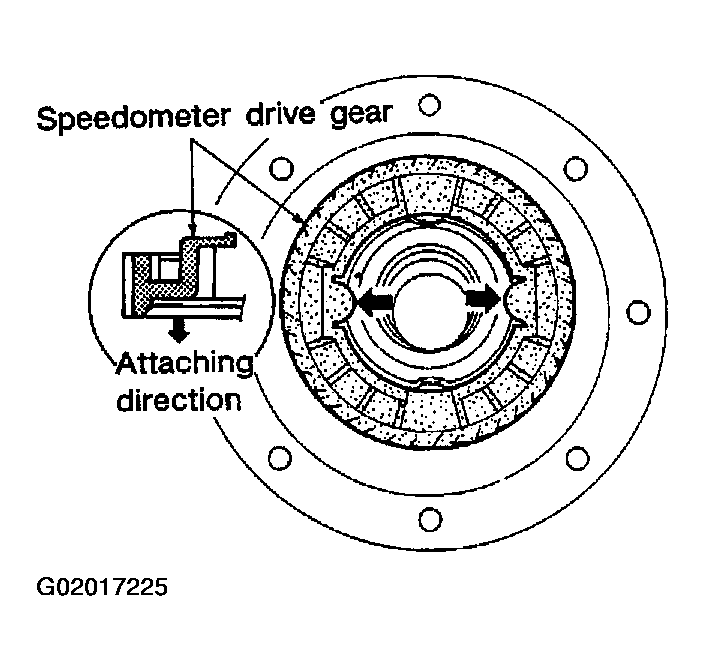

Fig 4: Removing Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out pinion mate shaft lock pin.

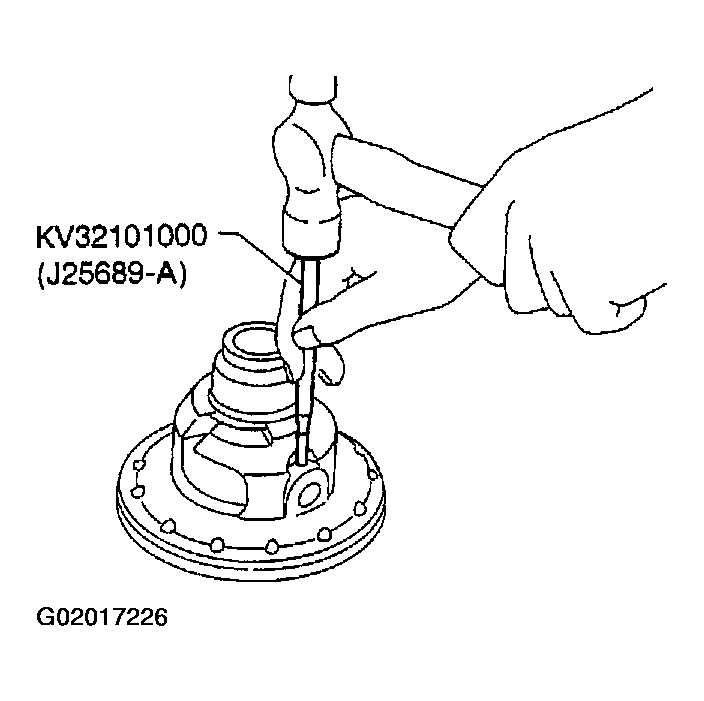

Fig 5: Removing Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Draw out pinion mate shaft lock pin.
Remove pinion mate gears and side gears.

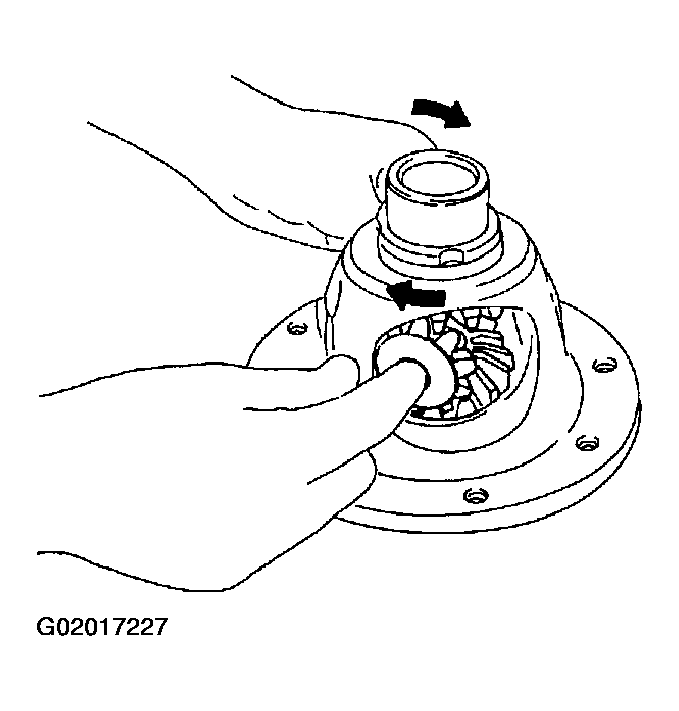

Fig 6: Removing Pinion Mate Gears And Side Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
