2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Final Drive: Assembly

  1. Attach side gear thrust washers to side gears, then install pinion mate thrust washers and pinion mate gears in place.
    • Apply ATF to any parts.

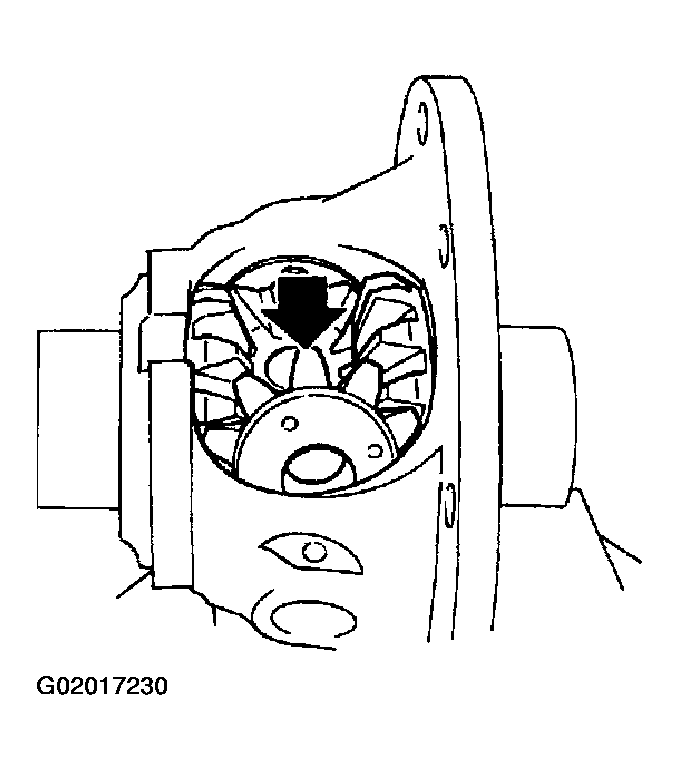

    Fig 1: Installing Pinion Mate Gears
    G02017230Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Insert pinion mate shaft.
    • When inserting, be careful not to damage pinion mate thrust washers.

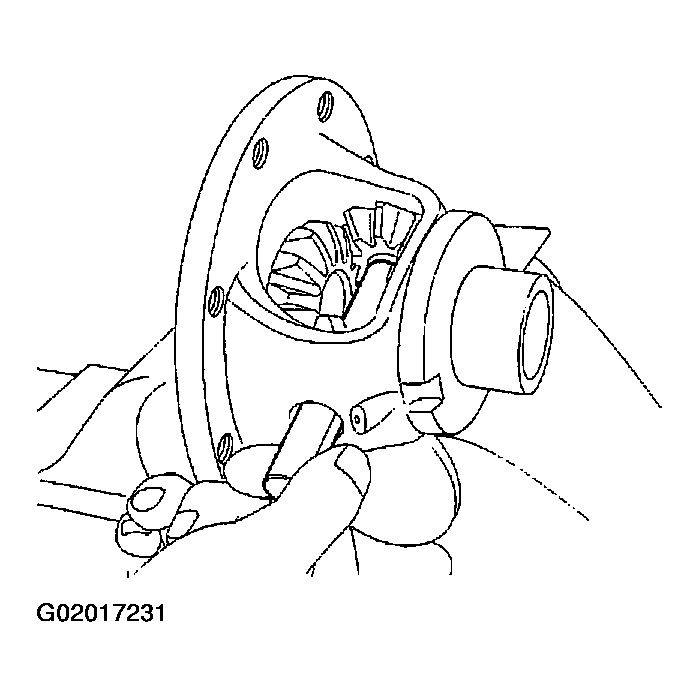

    Fig 2: Installing Pinion Mate Shaft In Differential Case
    G02017231Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Measure clearance between side gear and differential case with washers following the procedure below:
    1. Set Tool and dial indicator on side gear.

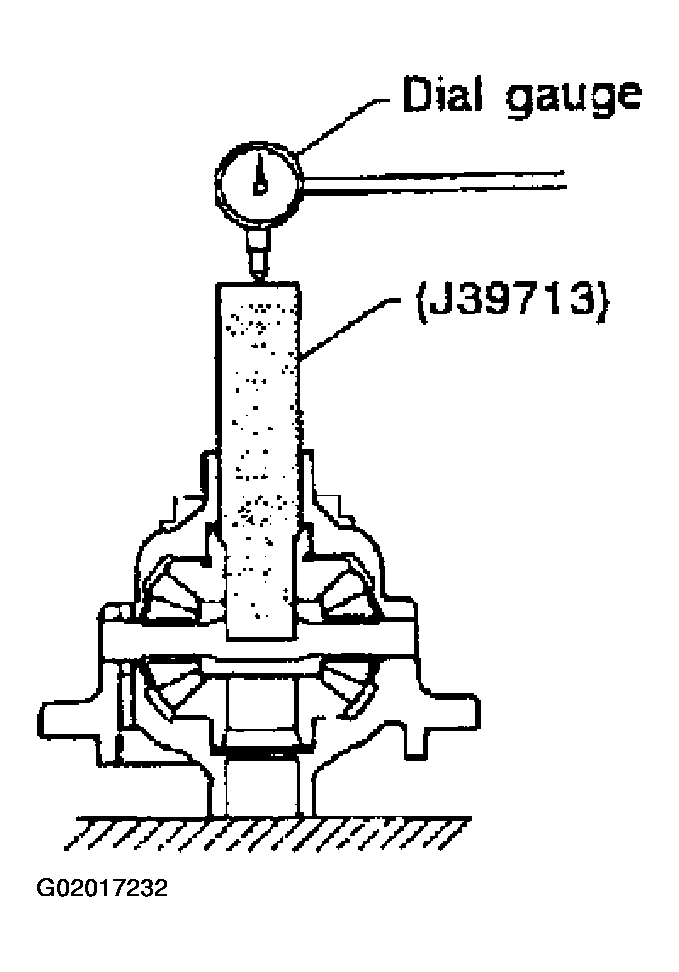

      Fig 3: Setting Tool And Dial Indicator On Side Gear
      G02017232Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Move side gear up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.

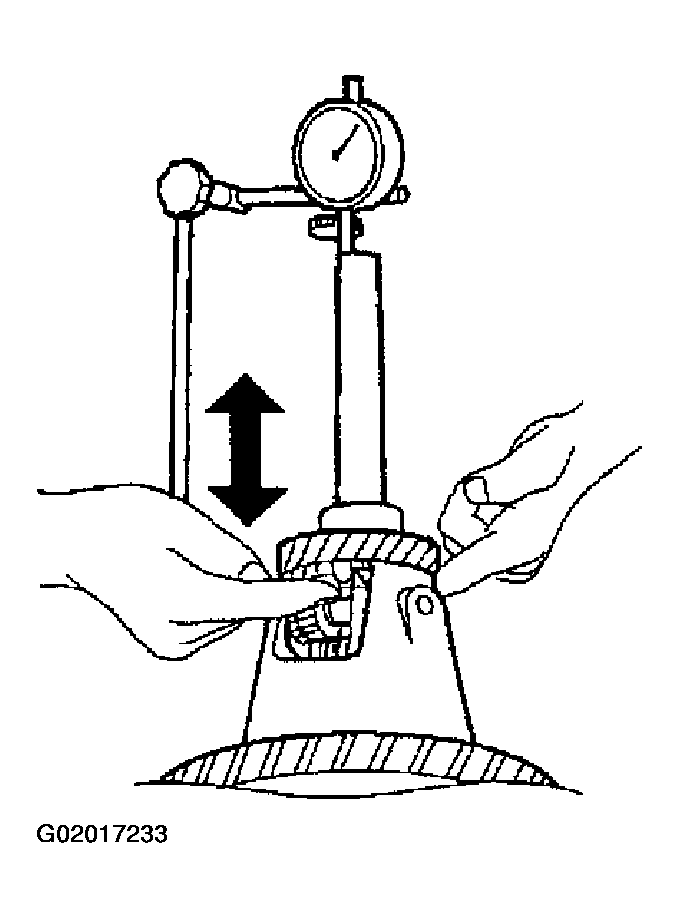

      Fig 4: Moving Side Gear Up And Down For Measuring Dial Indicator Deflection
      G02017233Courtesy of NISSAN MOTOR CO., U.S.A.

      Clearance between side gear and differential case with washer: 0.1 - 0.2 mm (0.004 - 0.008 in)

    3. If not within specification, adjust clearance by changing thickness of differential side gear thrust washers.

      Differential side gear thrust washers: Refer to  DIFFERENTIAL SIDE GEAR THRUST WASHERS  .

  4. Install lock pin.
    • Make sure that lock pin is flush with case.

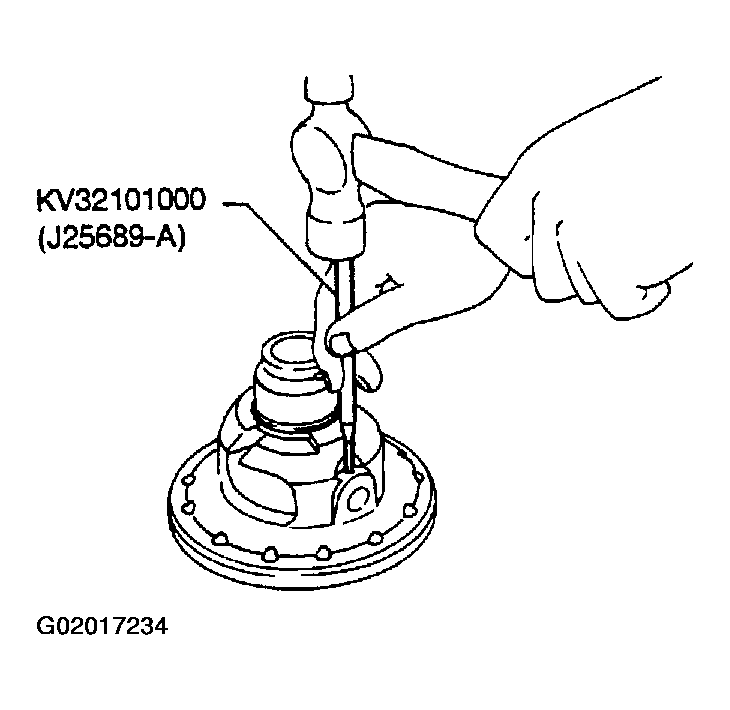

    Fig 5: Installing Lock Pin
    G02017234Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install speedometer drive gear on differential case.
    • Align the projection of speedometer drive gear with the groove of differential case.

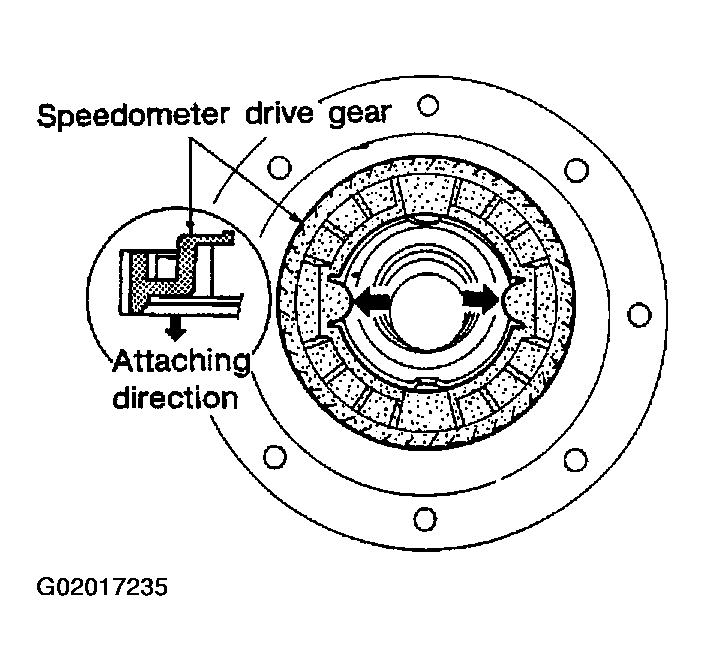

    Fig 6: Installing Speedometer Drive Gear On Differential Case
    G02017235Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Press on differential side bearings.

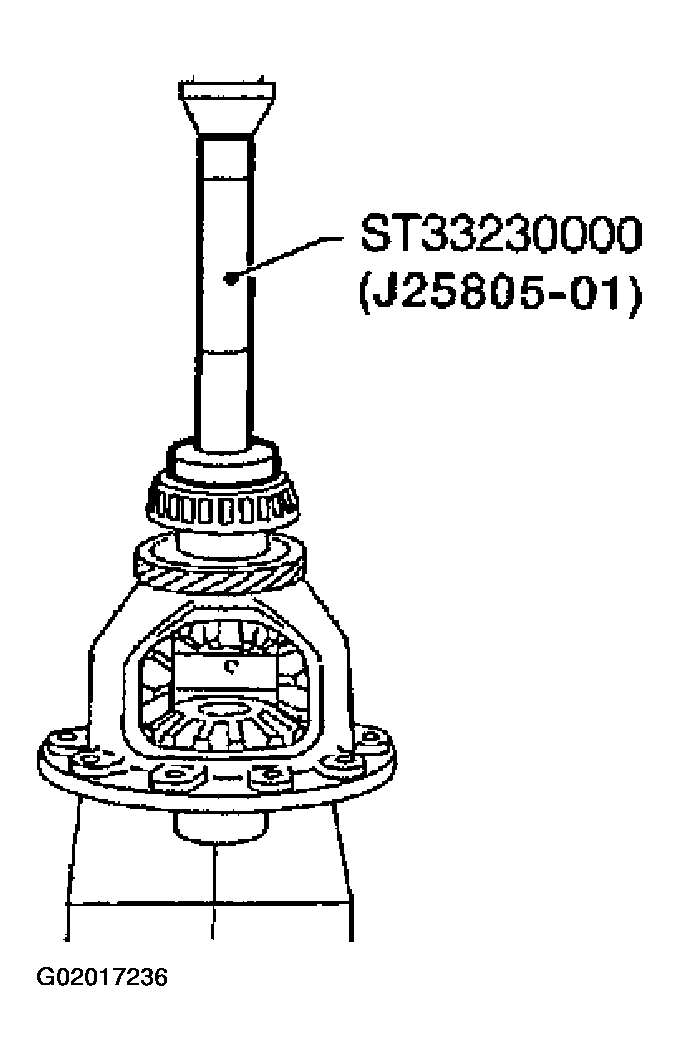

    Fig 7: Installing Differential Side Bearing
    G02017236Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install final gear and tighten fixing bolts in a crisscross pattern. Tighten final gear bolts to the specified torque. Refer to  COMPONENTS   .

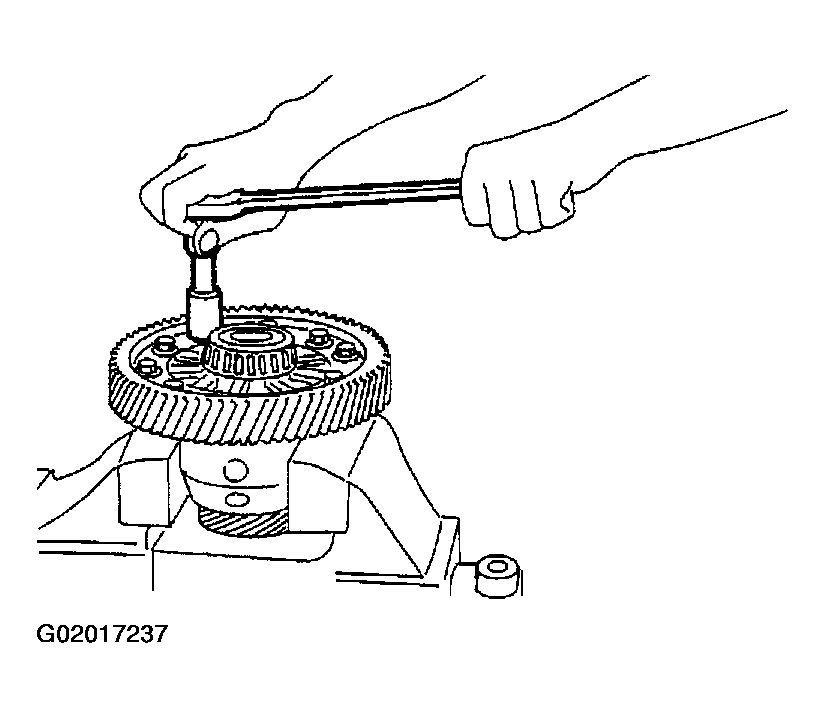

    Fig 8: Installing Final Gear And Tightening Fixing Bolts
    G02017237Courtesy of NISSAN MOTOR CO., U.S.A.
