2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Control Valve Assembly: Inspection

Lower and Upper Bodies

  • Check to see that retainer plates are properly positioned in lower body.

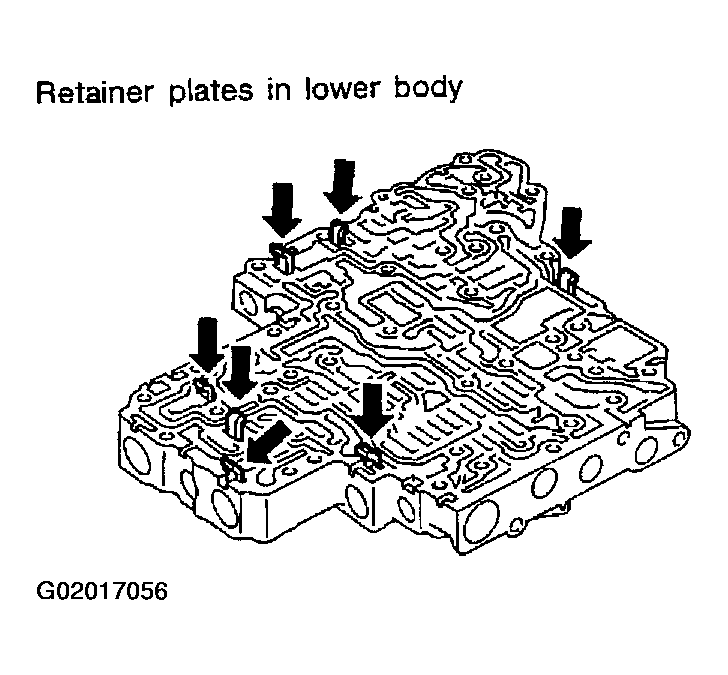

    Fig 1: Identifying Retainer Plates Position In Lower Body
    G02017056Courtesy of NISSAN MOTOR CO., U.S.A.
  • Check to see that retainer plates are properly positioned in upper body.
  • Be careful not to lose these parts.

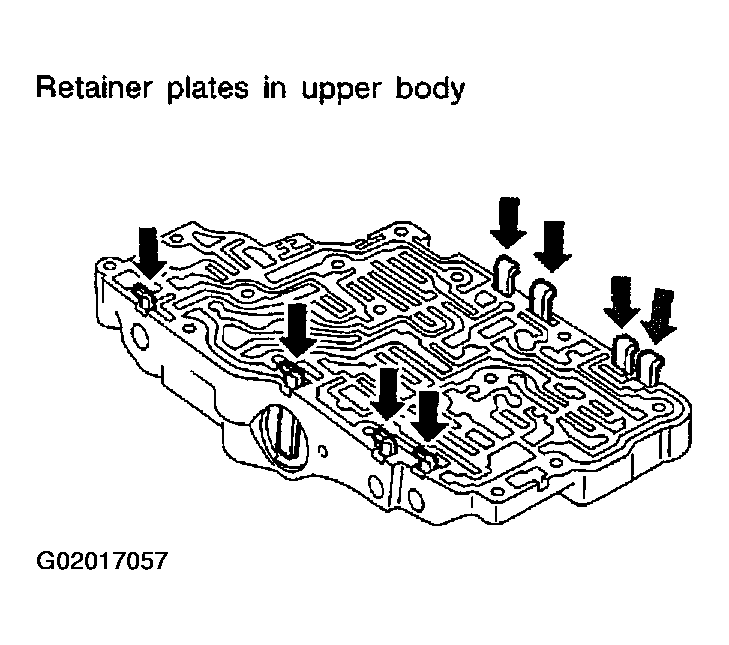

    Fig 2: Identifying Retainer Plates Position In Upper Body
    G02017057Courtesy of NISSAN MOTOR CO., U.S.A.
