2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install clevis pin and shift collar to L-H shift fork after assembling them.
CAUTION: Use caution when installing L-H shift fork, clevis pin or shift collar.
Install clevis pin and shift collar to 2-4 shift bracket after assembling them.
CAUTION: Use caution when installing 2-4 shift bracket.
Install guide fork collar and 2-4 shift fork spring to the 2-4 shift fork, and then secure it with the new retaining ring.

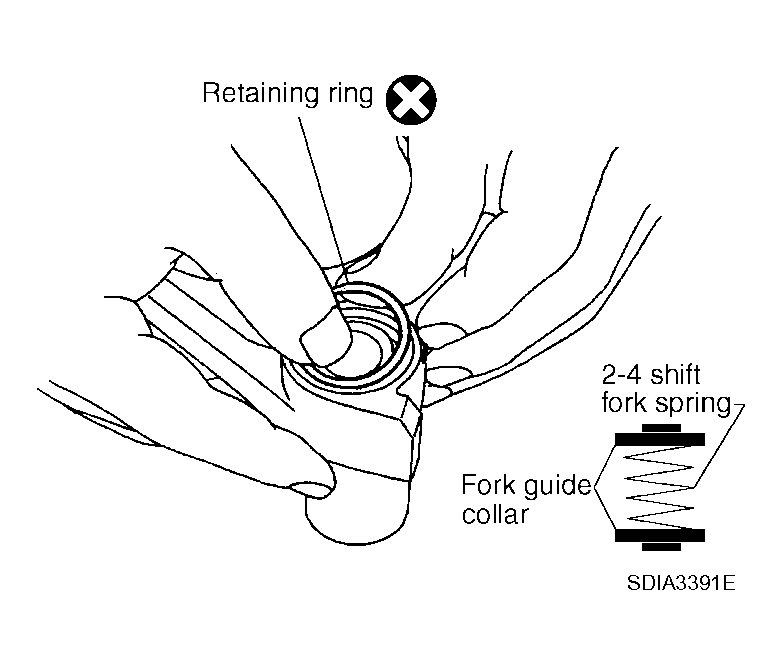

Fig 1: Installing Guide Fork Collar And 2-4 Shift Fork Spring To 2-4 Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
