4WD SHIFT SWITCH OPERATION DESCRIPTION

4WD shift switch	Indicator lamp		Operation of 4WD shift switch	Use Condition
4WD shift switch	4WD shift	4LO	Operation of 4WD shift switch	Use Condition

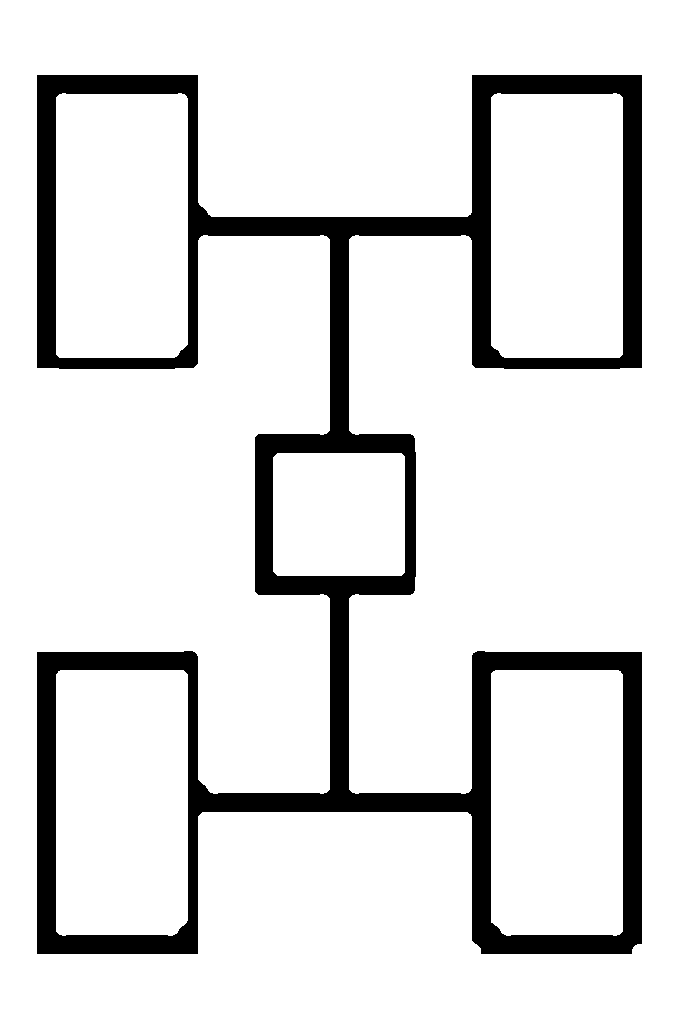

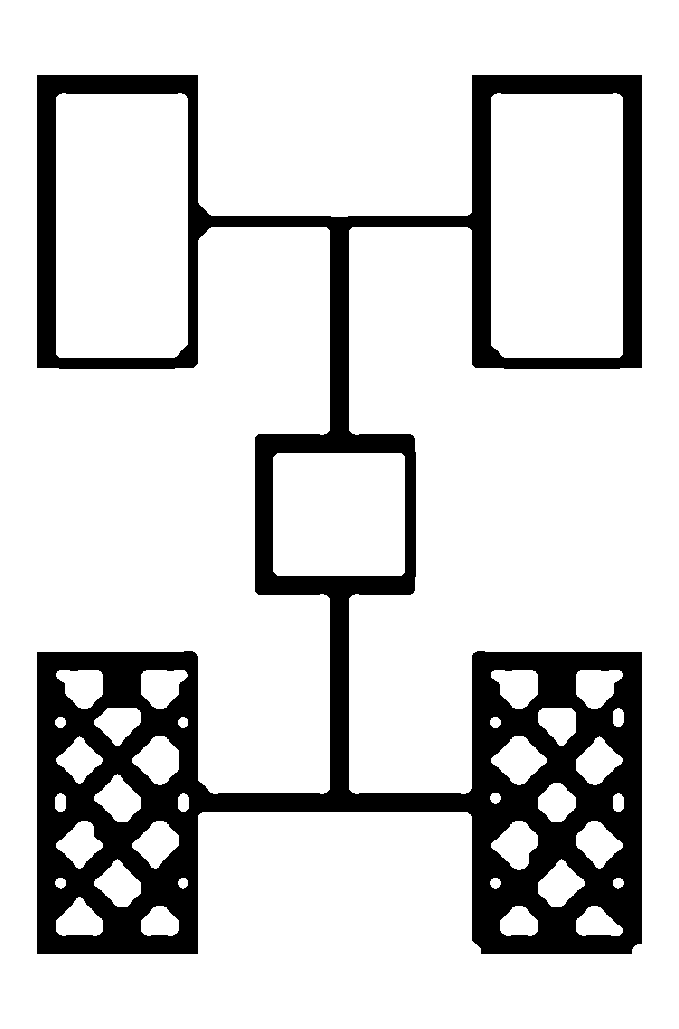

[2WD]		OFF	2WD <==> 4H switching can be done while driving. The indictor lamp will change when the driving mode is changed. Gear shifting between 2WD <==> 4H position must be performed at speeds below 100km/h (60 MPH).	For driving on dry, paved roads.

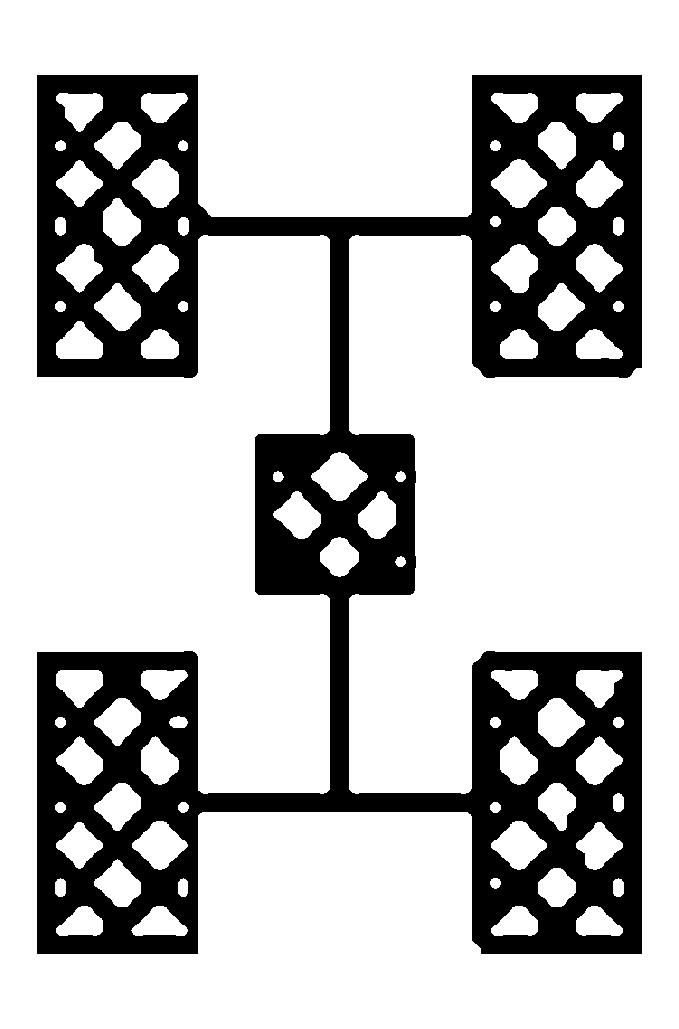

[4H]		OFF		For driving on rough, sandy or snow-covered roads.

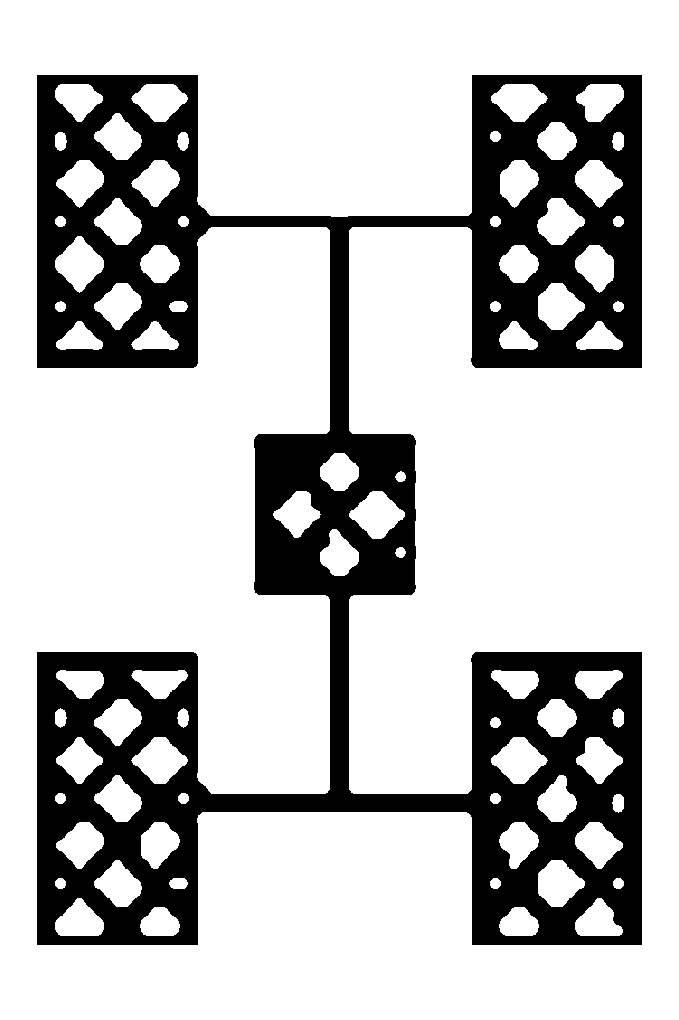

[4LO]		Flashing	To shift between 4H <==> 4LO, stop the vehicle and select the A/T selector lever to the "N" position with the brake pedal depressed. Depress and turn the 4WD shift switch. The 4WD shift switch will not shift to the desired mode if the transmission is not in "N" or the vehicle is moving with the brake pedal depressed. The 4LO indicator lamp will be lit when the 4LO is engaged.	The 4LO indicator lamp flashes when shifting between 4LO <==> 4H.
[4LO]		ON		For use when maximum power and traction is required at low speed (for example on steep grades or rocky, sandy, muddy roads).
