Limit Switch Circuit Check Front RH

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH LIMIT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window and door lock/unlock switch RH connector D105 terminal 15 and ground.
    CONNECTOR TERMINAL VOLTAGE CONDITION

    Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    D105 15(G/W) Ground Passenger side door window is between fully-open and just before fully-closed position (ON) 0
    Passenger side door window is between just before fully-closed position and fully-closed position (OFF) 5

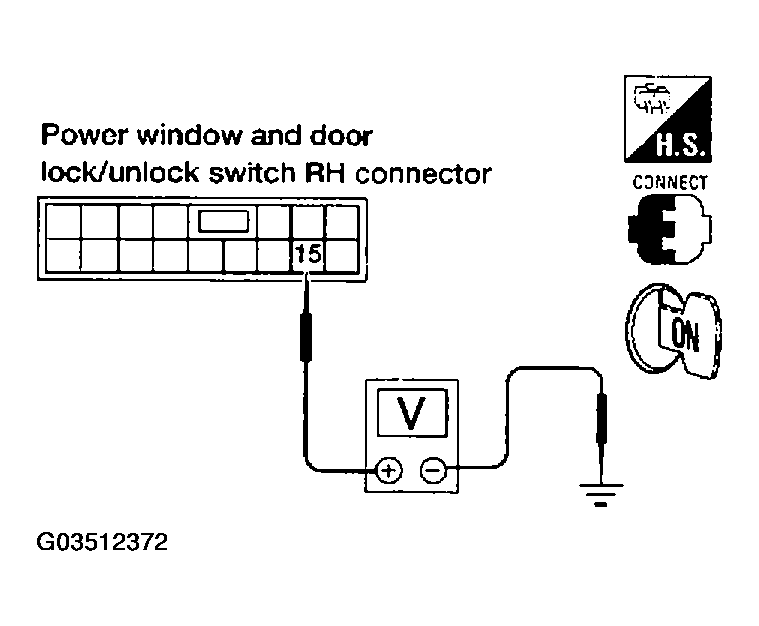

    Fig 1: Checking Voltage Between Power Window And Door Lock/Unlock Switch And Ground
    G03512372Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Limit switch circuit is OK.
    2. NG: GO TO 2.
  2. CHECK LIMIT SWITCH GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH.
    3. Check continuity between front power window motor RH connector D104 terminal 5 and ground.

      5 (G/W) - Ground: Approx. 5V

    OK or NG

    1. OK: GO TO 3.
    2. NG: GO TO  5 .

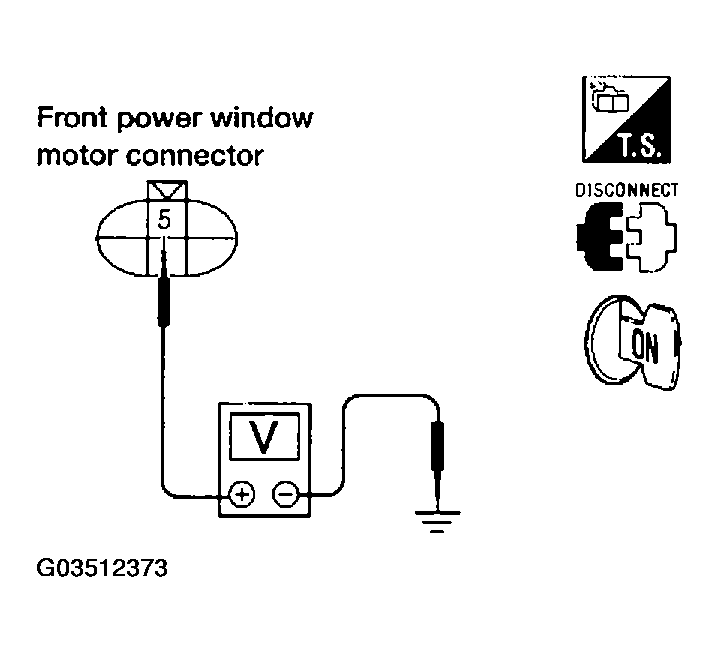

    Fig 2: Checking Continuity Between Front Power Window Motor And Ground
    G03512373Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK LIMIT SWITCH GROUND CIRCUIT

    Check continuity between front power window motor RH connector D104 terminal 6 and ground.

    6 (W/B) - Ground: Continuity should exist.

    OK or NG

    1. OK: Replace front power window motor RH.
    2. NG: GO TO 4.

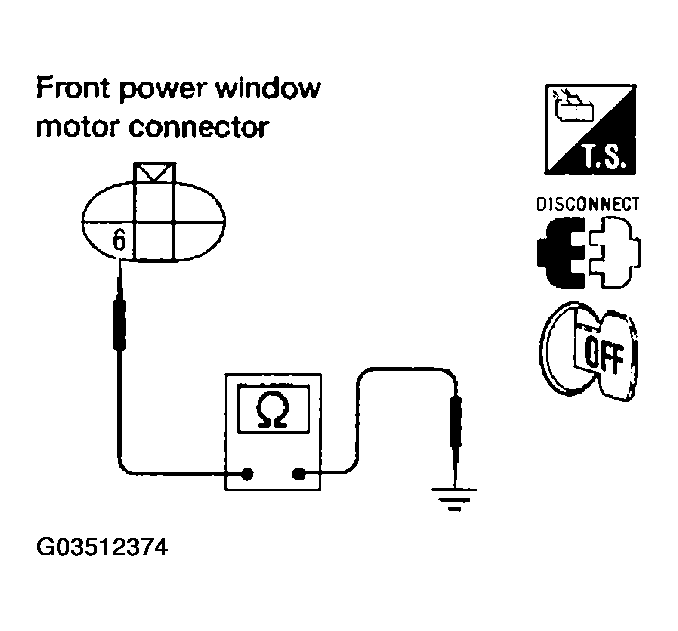

    Fig 3: Checking Continuity Between Front Power Window Motor And Ground
    G03512374Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK HARNESS CONTINUITY
    1. Disconnect power window and door lock/unlock switch RH.
    2. Check continuity between front power window motor RH connector D104 terminal 6 and power window and door lock/unlock switch RH connector D105 terminal 3.

      6 (W/B) - 3 (W/B): Continuity should exist.

    OK or NG

    1. OK: Replace power window and door lock/unlock switch RH.
    2. NG: Repair or replace harness.

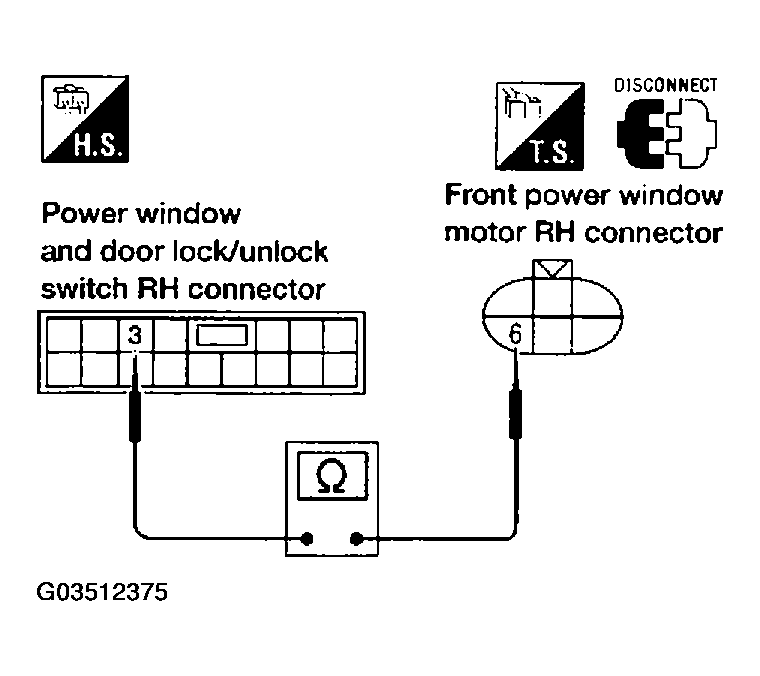

    Fig 4: Checking Continuity Between Front Power Window Motor And Power Window Switch
    G03512375Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS CONTINUITY
    1. Disconnect power window and door lock/unlock switch RH.
    2. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 15 and front power window motor RH connector D104 terminal 5.

      15 (G/W) - 5 (G/W): Continuity should exist.

    OK or NG

    1. OK: Replace power window and door lock/unlock switch RH.
    2. NG: Repair or replace harness.

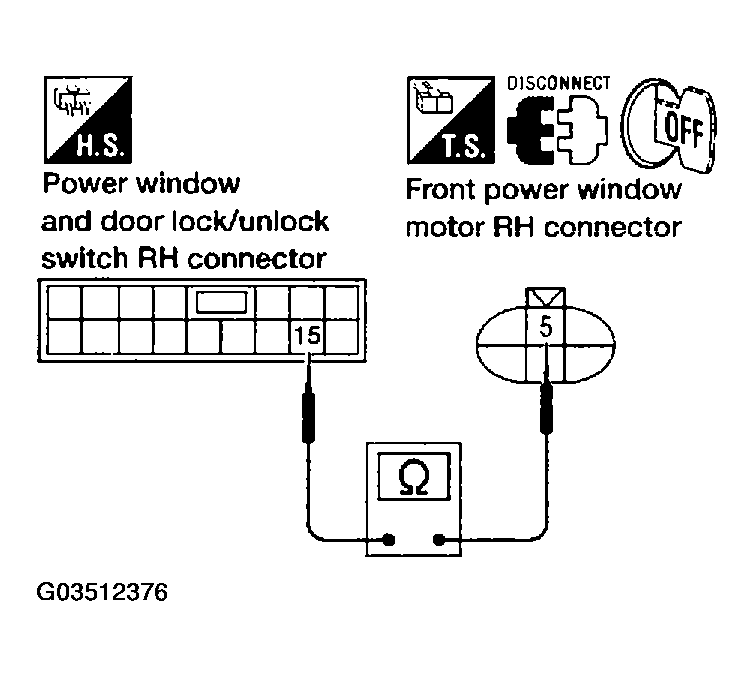

    Fig 5: Checking Continuity Between Power Window Switch And Front Power Window Motor Connector Terminal
    G03512376Courtesy of NISSAN MOTOR CO., U.S.A.
