2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Turn the audio system off.
  3. While pushing the "PAUSE/MUTE button" turn the volume control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
    • Shifting from current screen to previous screen is performed by pushing "PREV" button.

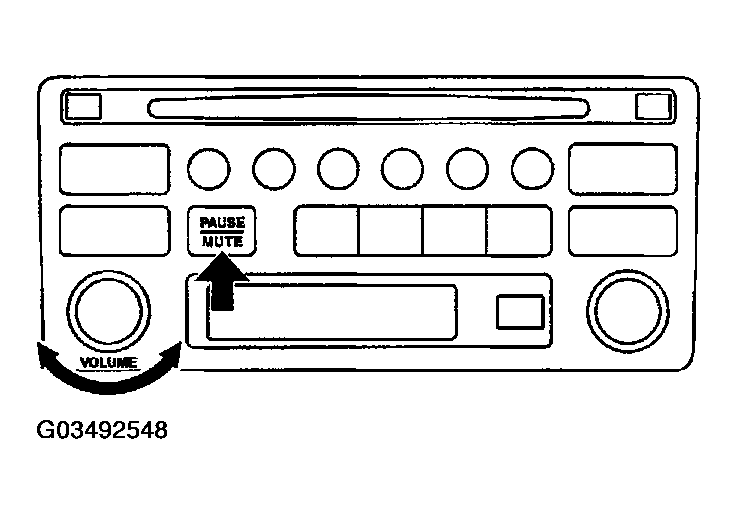

      Fig 1: Displaying PAUSE/MUTE Button
      G03492548Courtesy of NISSAN MOTOR CO., U.S.A.
  4. The initial trouble diagnosis screen will be shown, and items "Self-Diagnosis (DCU)", "Self-Diagnosis (NAVI)", "Confirmation/ Adjustment and "CAN DIAG SUPPORT MONITOR" will become selective.
  5. Select "CAN DIAG SUPPORT MONITOR".

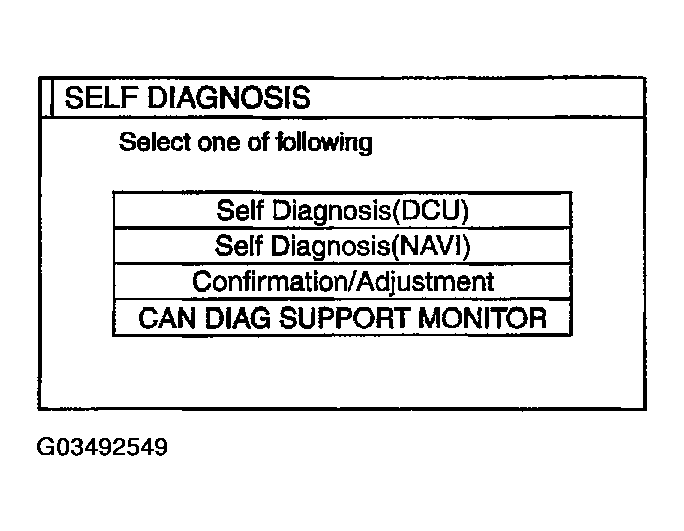

    Fig 2: Displaying SELF DIAGNOSIS
    G03492549Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Display status of CAN communication.
    ERROR COUNTER (REFERENCE VALUE) CHART

    Item Content Error counter (Reference value)
    CANCOMM OK/NG 0-50
    CAN_CIRC_1 OK/UNKWN 0-50
    CAN_CIRC_2 OK/UNKWN 0-50
    CAN_CRIC_3 OK/UNKWN 0-50
    CAN_CIRC_4 OK/UNKWN 0-50
    CAN_CIRC_5 OK/UNKWN 0-50
    CAN_CIRC_6 OK/UNKWN 0-50
    CAN_CIRC_7 OK/UNKWN 0-50
    CAN_CIRC_8 OK/UNKWN 0-50
    CAN_CIRC_9 OK/UNKWN 0-50
    NOTE: Counter shows the status of CAN communication.
