2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE
ABS Data Monitor Procedure
WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "OFF".
- Connect CONSULT-II to Data Link Connector (DLC). See Figure .
- Turn ignition switch "ON".
- Touch "START" on CONSULT-II screen.
- Touch "ABS".
- Touch "DATA MONITOR".
- Touch "SETTING" on "SELECT MONITOR ITEM" screen.
- Touch "LONG TIME" on "SET RECORDING COND" screen.

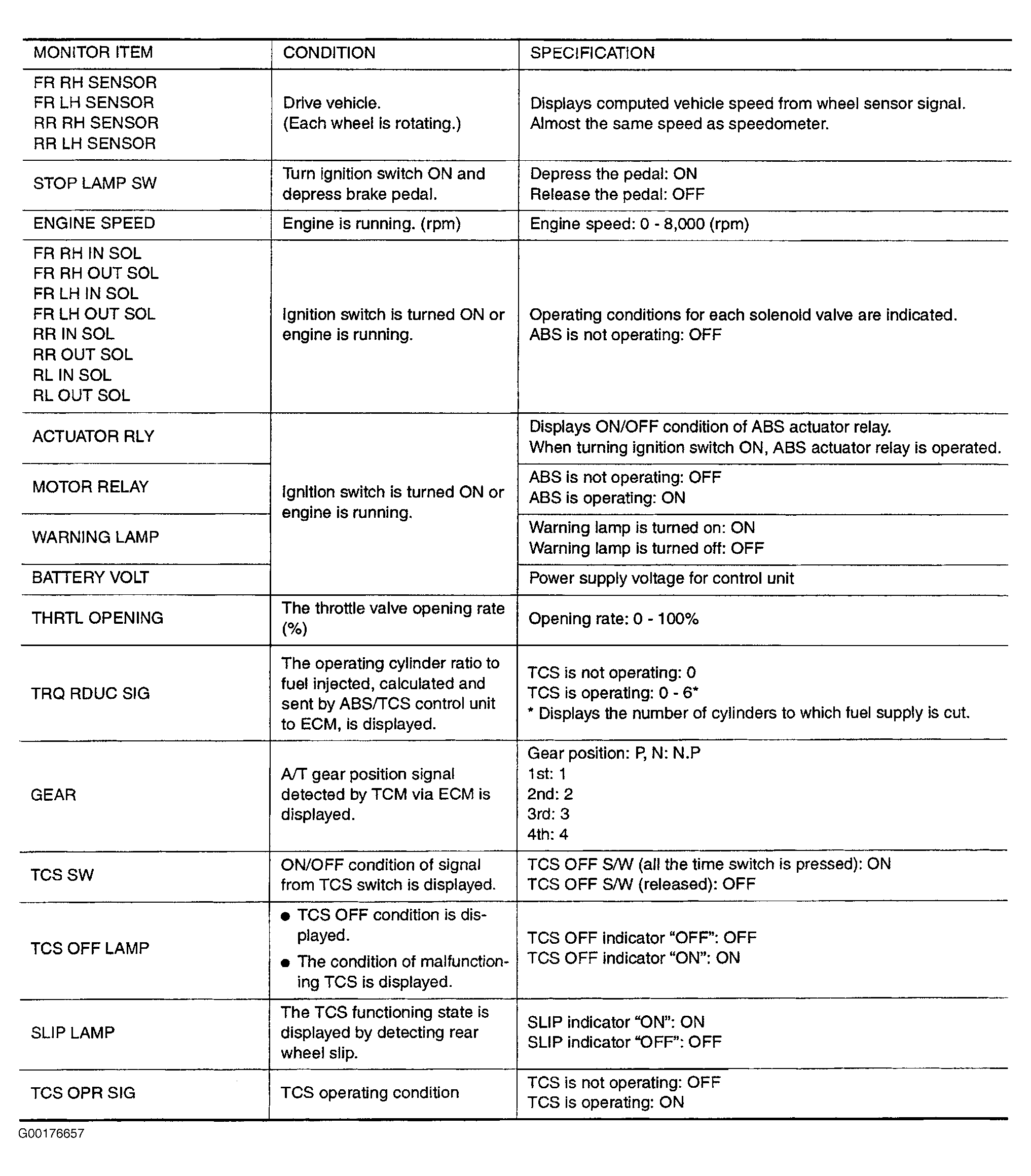

- Touch "START" on "SELECT MONITOR ITEM". For monitor items, see Fig 1 .
