2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE
Front Air Control
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the five control knobs from the control unit.
- Remove the shift knob.

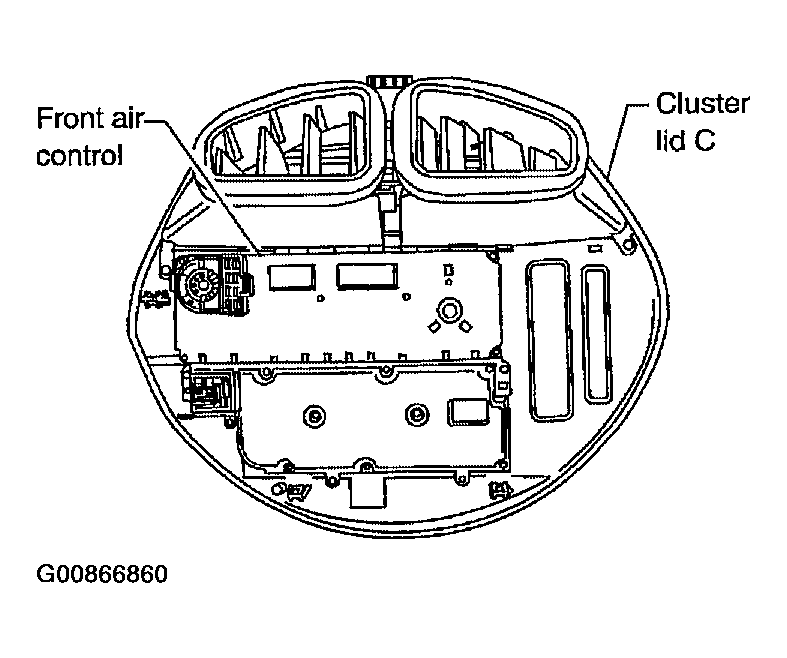

- Remove cluster lid C, disconnect the front air control electrical connector. Refer to CLUSTER LID C .
- Remove the screws securing the front air control to cluster lid C.
- Remove the front air control.
- Installation is the reverse order of removal.
