NOTE:

To ensure a complete and thorough diagnosis, the battery, starter and generator test segments must be done as a set from start to finish.

Turn off all loads on the vehicle electrical system.
Perform battery test with Battery/Starting/Charging system tester. Refer to TROUBLE DIAGNOSES WITH BATTERY/STARTING/ CHARGING SYSTEM TESTER .
Press "ENTER" to begin the starting system test.

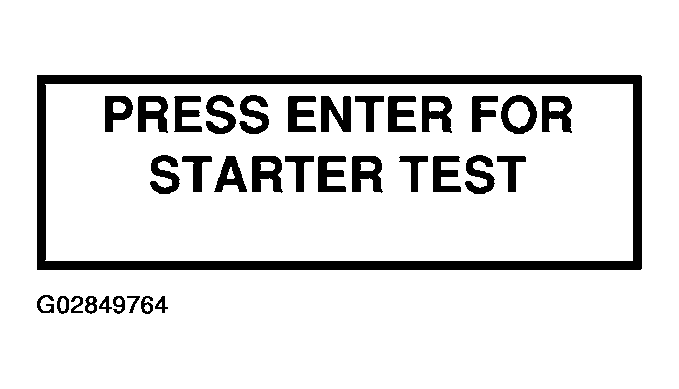

Fig 1: Displaying "ENTER" To Begin Starting System Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Start the engine.

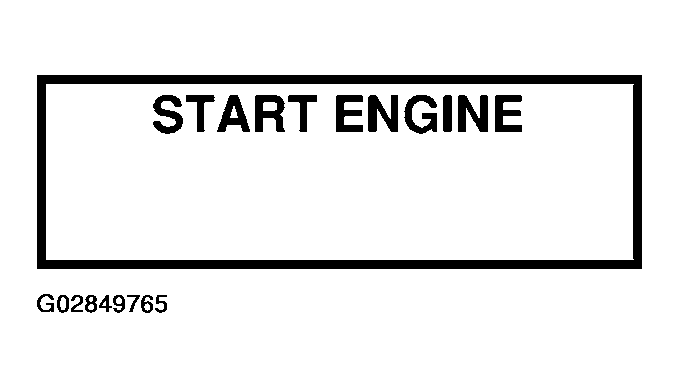

Fig 2: Displaying Start Engine
Courtesy of NISSAN MOTOR CO., U.S.A.
Diagnosis result is displayed on the tester. Refer to DIAGNOSTIC RESULT ITEM CHART .

Fig 3: Displaying "DIAGNOSTIC RESULT ITEM CHART
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If the starter performs normally but the engine does not start, perform engine diagnosis.
For intermittent "NO CRANK" or "NO STARTER OPERATION" incidents, Refer to DIAGNOSTIC PROCEDURE 2 .
