2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

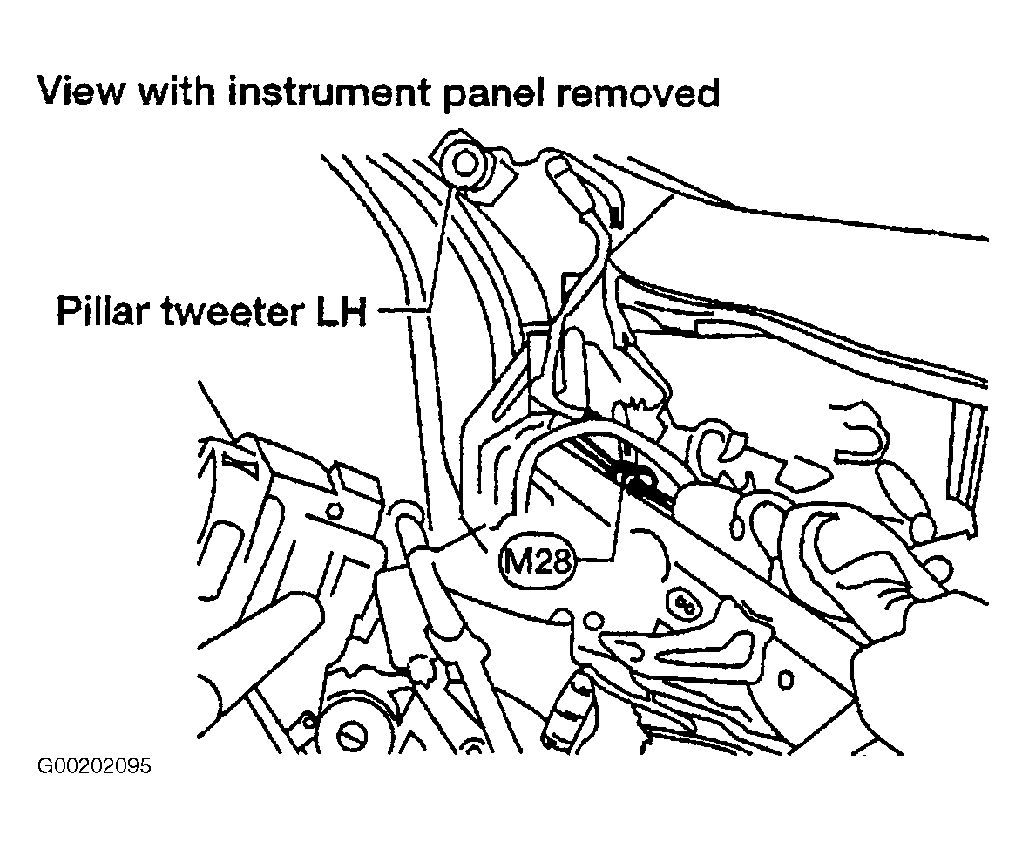

| Body Ground M28 | Behind Left Side Of Dash, See Fig 1 |
| Body Ground M54 | Behind Right Side Of Dash, See Fig 2 |
| Fuse Block (J/B) | Behind Left Side Of Dash, See Fig 3 |
| Fuse & Fusible Link Box | Under Hood, Next to Front Left Hood Switch, See Fig 4 |
| Main Power Window & Door Lock/Unlock Switch | On Front Left Arm Rest, See Fig 5 |
| Smart Entrance Control Unit | Behind Center Console, See Fig 6 |
