Key Switch (Insert) Check
- CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II

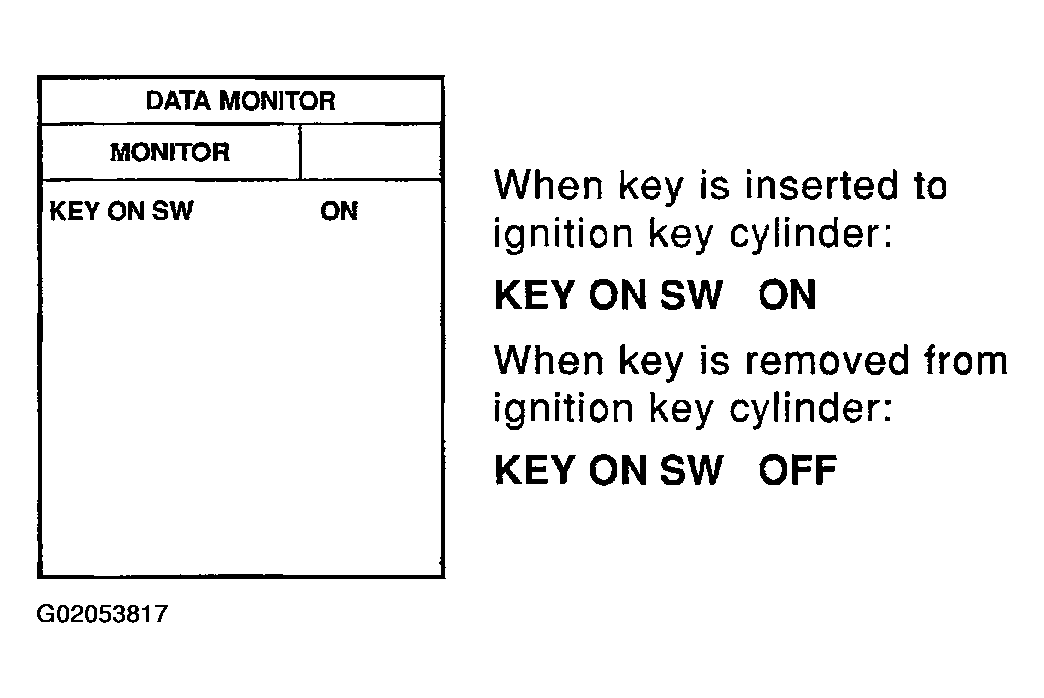

Check key switch ("KEY ON SW") in "DATA MONITOR" mode with CONSULT-II.
Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

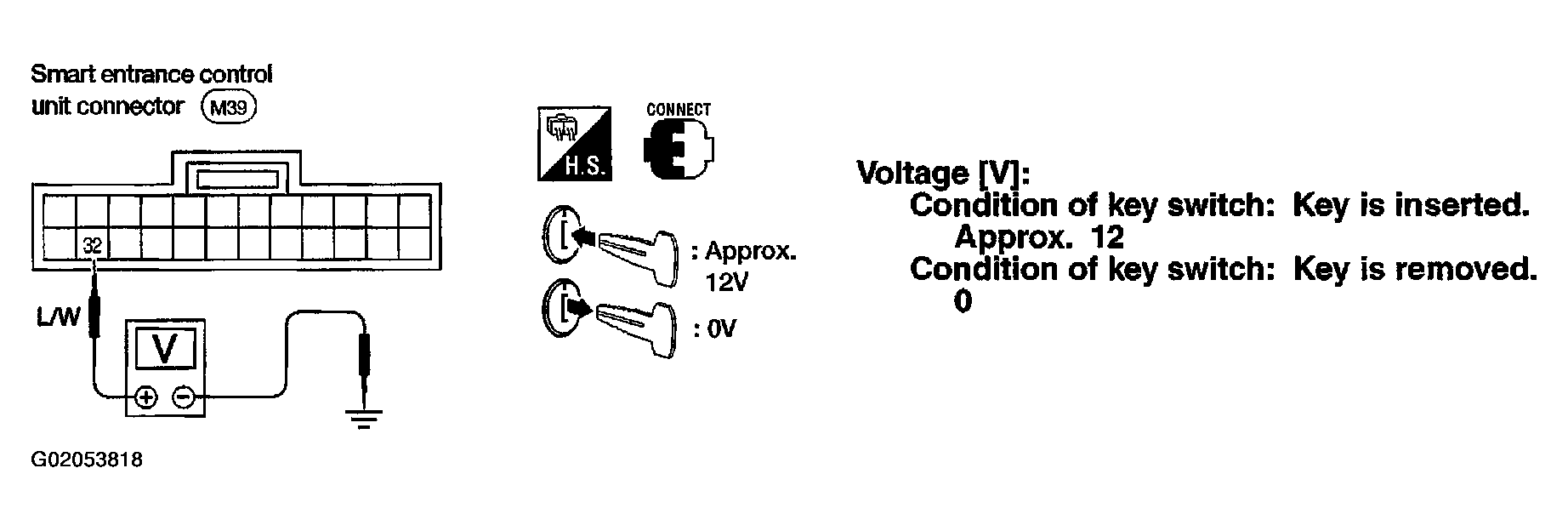

Check voltage between control unit terminal 32 and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Key switch is OK.
- NG : GO TO 2.
- CHECK KEY SWITCH

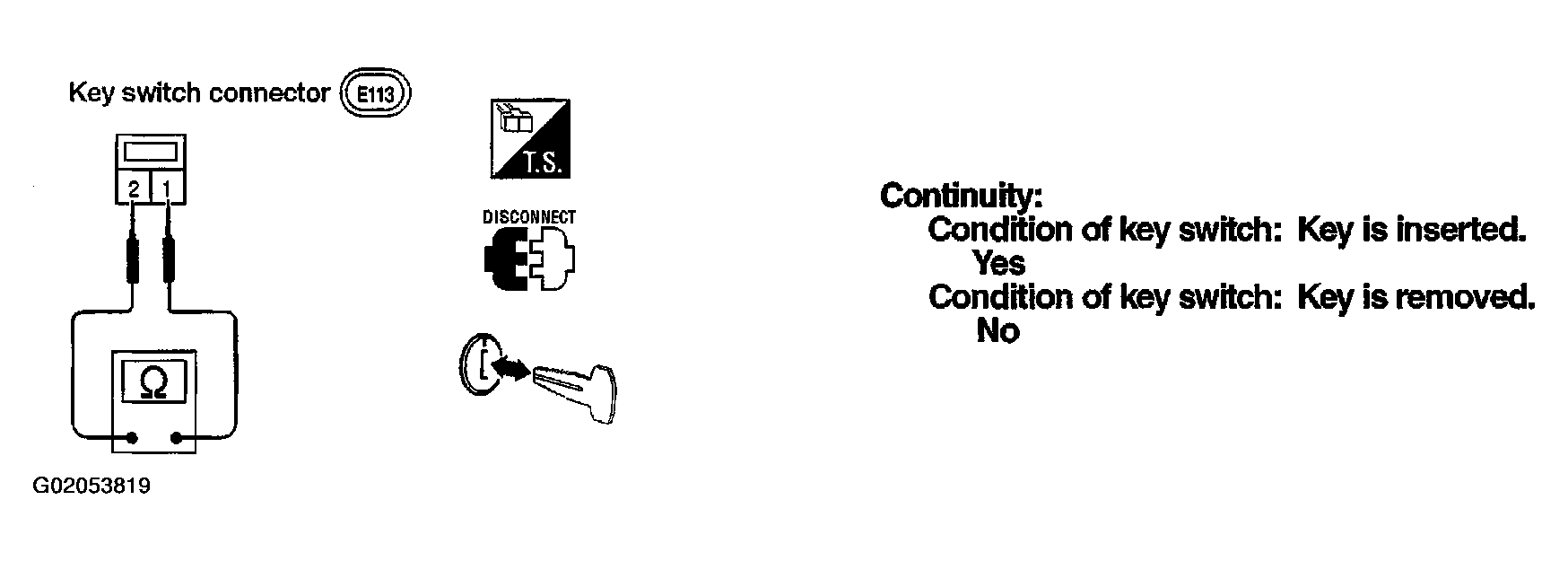

Check continuity between key switch terminals 1 and 2.
OK or NG
- OK
: Check the following:
- 10A fuse [No. 12, located in fuse block (J/B)]
- Harness for open or short between key switch and fuse
- Harness for open or short between smart entrance control unit and key switch
- NG : Replace key switch.
- OK
: Check the following:
