2002 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs must be re-registered.
  1. Turn ignition switch "OFF".
    Fig 1: Checking Harness Open Or Short Between Smart Entrance Control Unit And Interior Lamp
    G02053836Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect "CONSULT-II" to the data link connector.
  3. Turn ignition switch "ON".

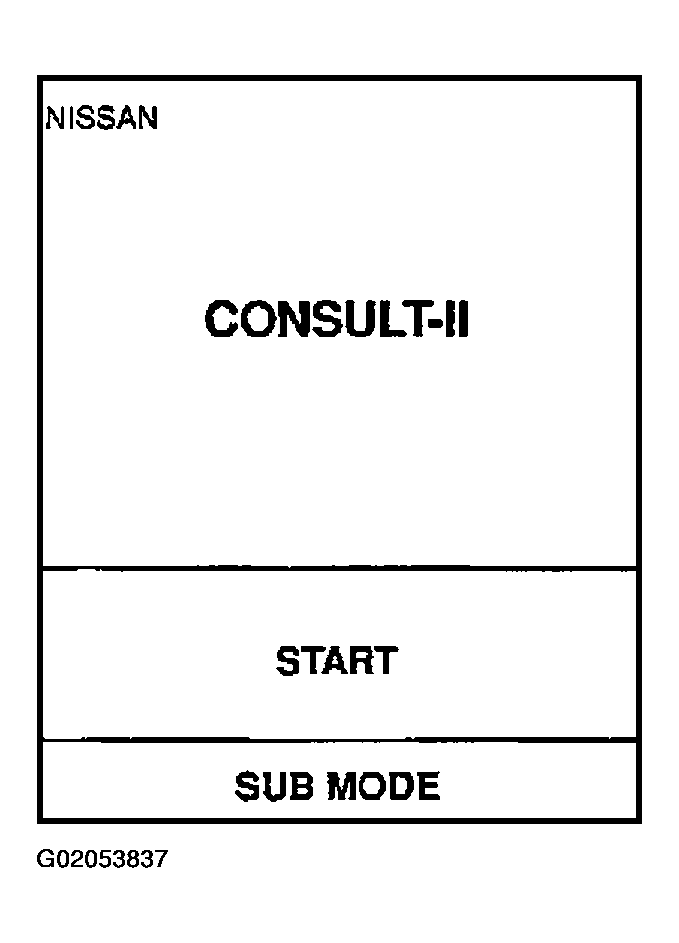

    Fig 2: CONSULT-II Display
    G02053837Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. Touch "SMART ENTRANCE".

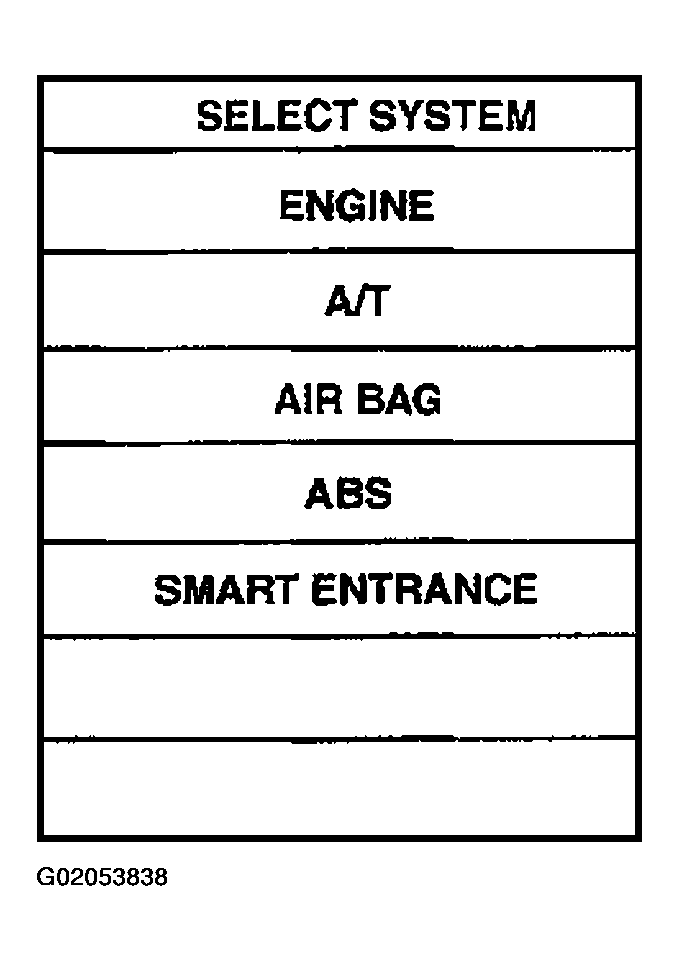

    Fig 3: CONSULT-II Select System
    G02053838Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".

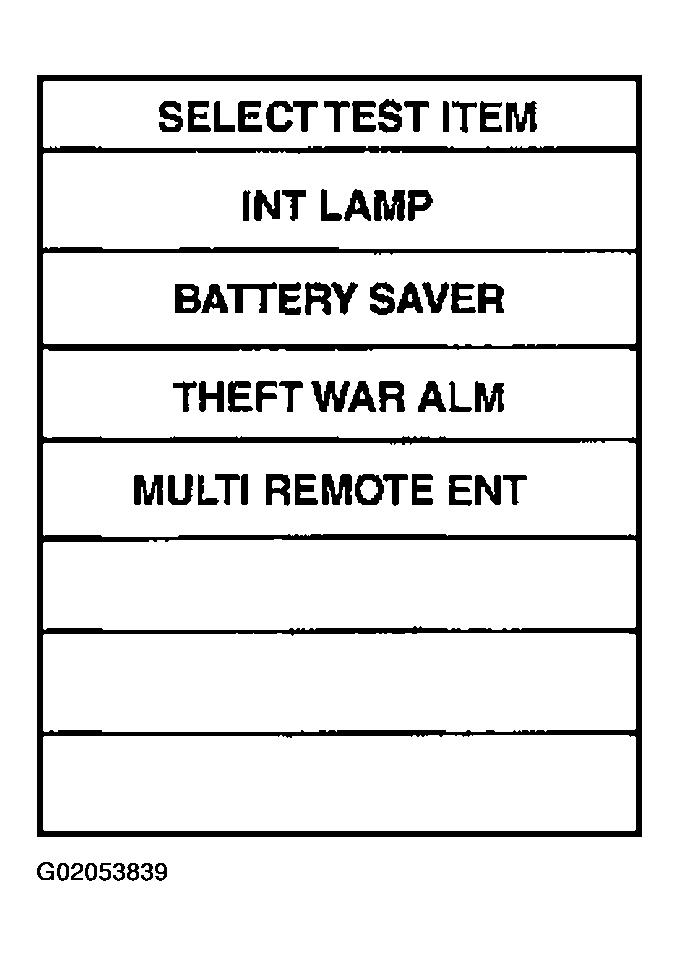

    Fig 4: CONSULT-II Select Test Item
    G02053839Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WORK SUPPORT".

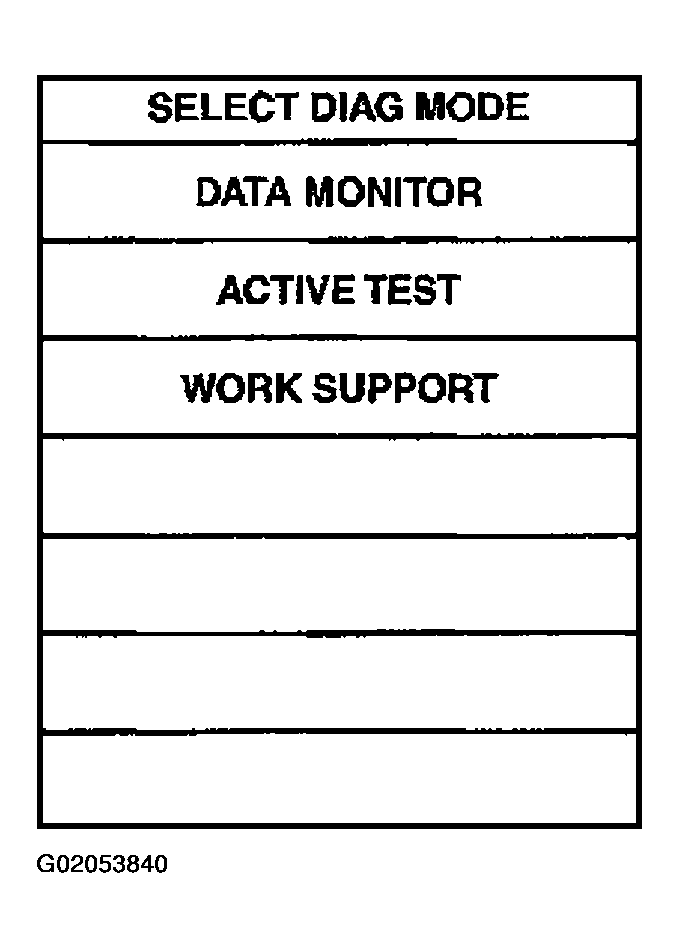

    Fig 5: CONSULT-II Select Diag Mode
    G02053840Courtesy of NISSAN MOTOR CO., U.S.A.
  8. The items are shown that can be set up.
    • "REMO CONT ID CONFIR"

      Use this mode to confirm if a keyfob ID code is registered or not.

    • "REMO CONT ID REGIST"

      Use this mode to register a keyfob ID code.

      NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.
    • "REMO CONT ID ERASUR"

      Use this mode to erase a keyfob ID code.

    • "HZRD REM SET"

      Use this mode to activate or deactivate the hazard and horn reminder.

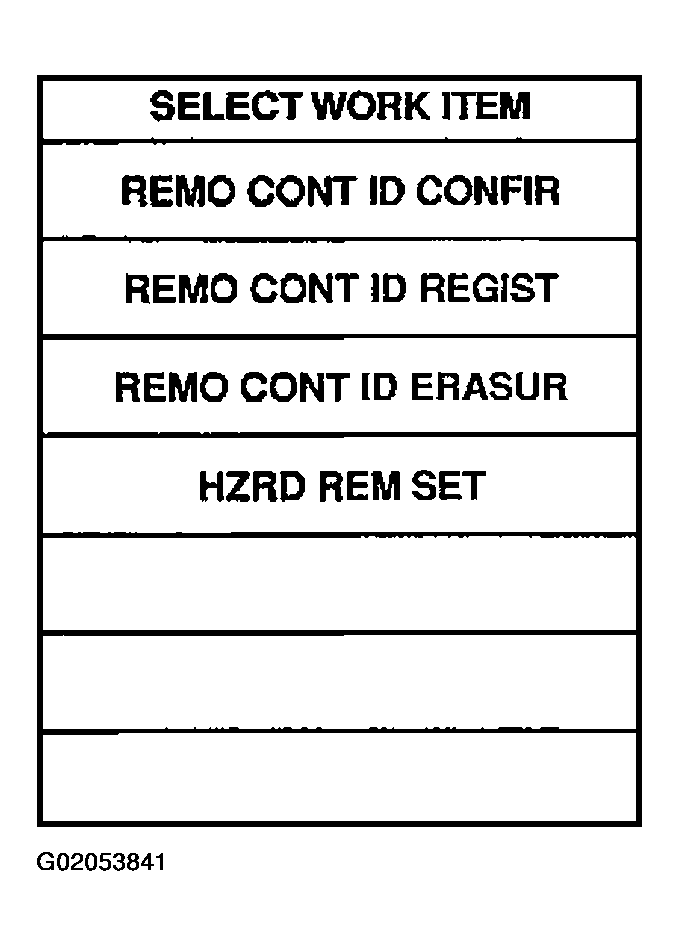

      Fig 6: Condult II Select Work Item
      G02053841Courtesy of NISSAN MOTOR CO., U.S.A.
