2001 Nissan-Datsun Pathfinder SE, RWD, StandardFACTORY OEM SERVICE PROCEDURE

Remote Controller Id Set Up With Consult-II

NOTE: If a remote controller is lost, the ID code of the lost remote controller must be erased to prevent unauthorized use. When the ID code of a lost remote controller is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.
  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II to the data link connector.

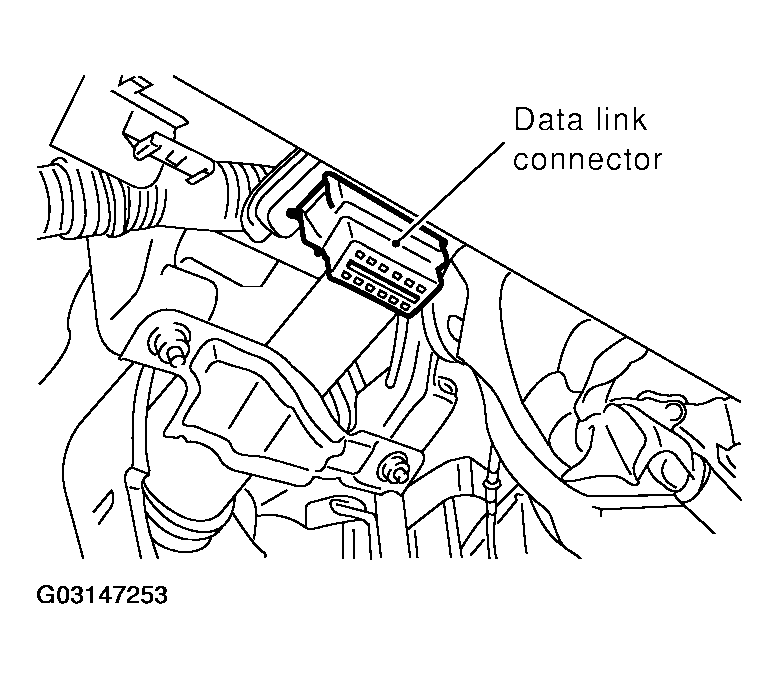

    Fig 1: Identifying Data Link Connector
    G03147253
  3. Turn ignition switch "ON".
  4. Touch "START".

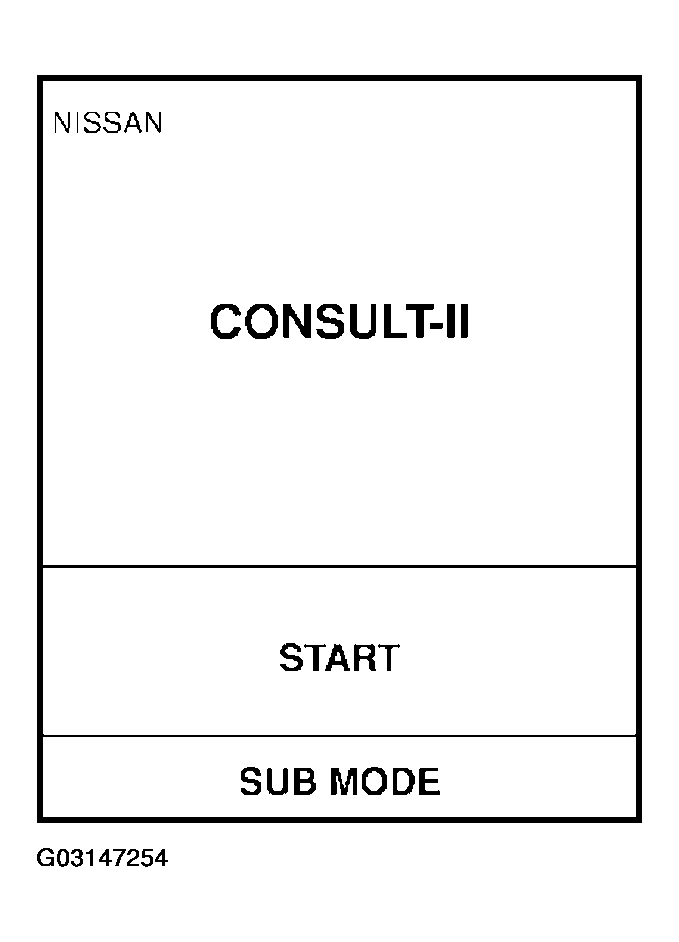

    Fig 2: Displaying START
    G03147254
  5. Touch "SMART ENTRANCE".

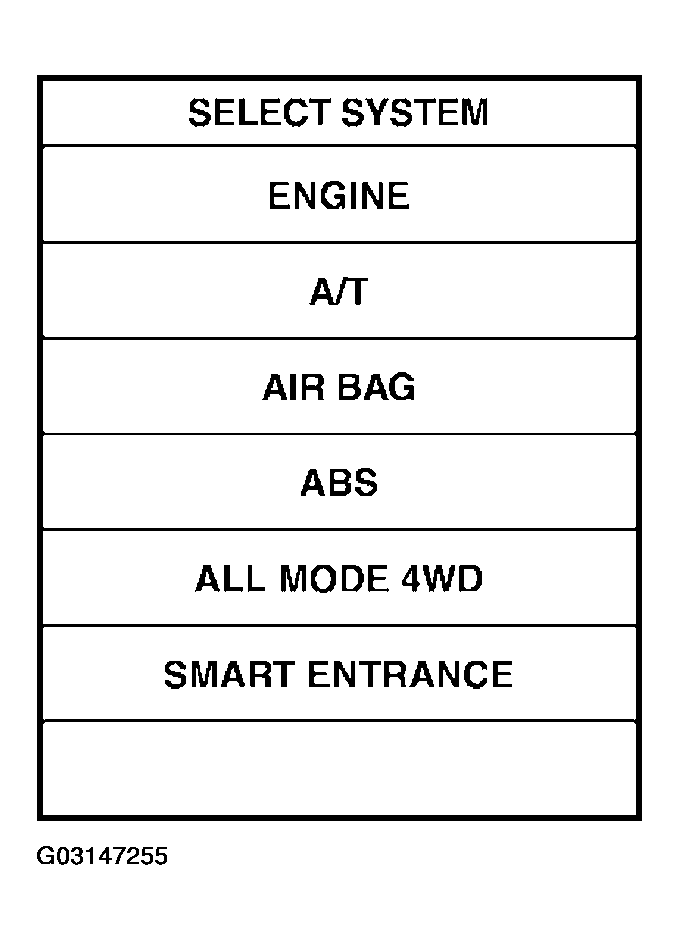

    Fig 3: Displaying SMART ENTRANCE In SELECT SYSTEM Mode
    G03147255
  6. Touch "MULTI REMOTE ENT".

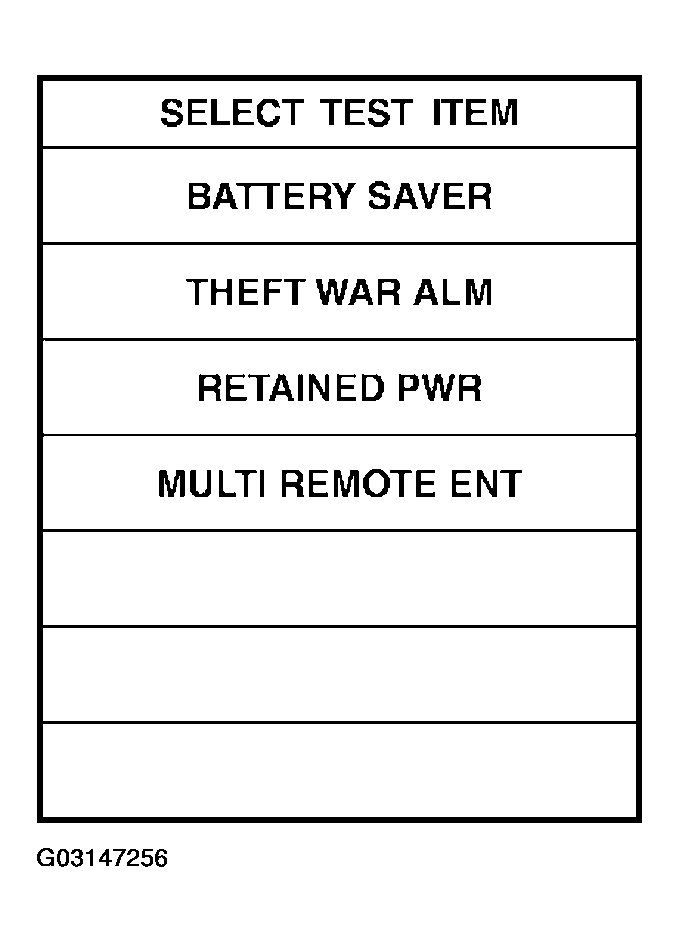

    Fig 4: Displaying MULTI REMOTE ENT In SELECT TEST ITEM Mode
    G03147256
  7. Touch "WORK SUPPORT".

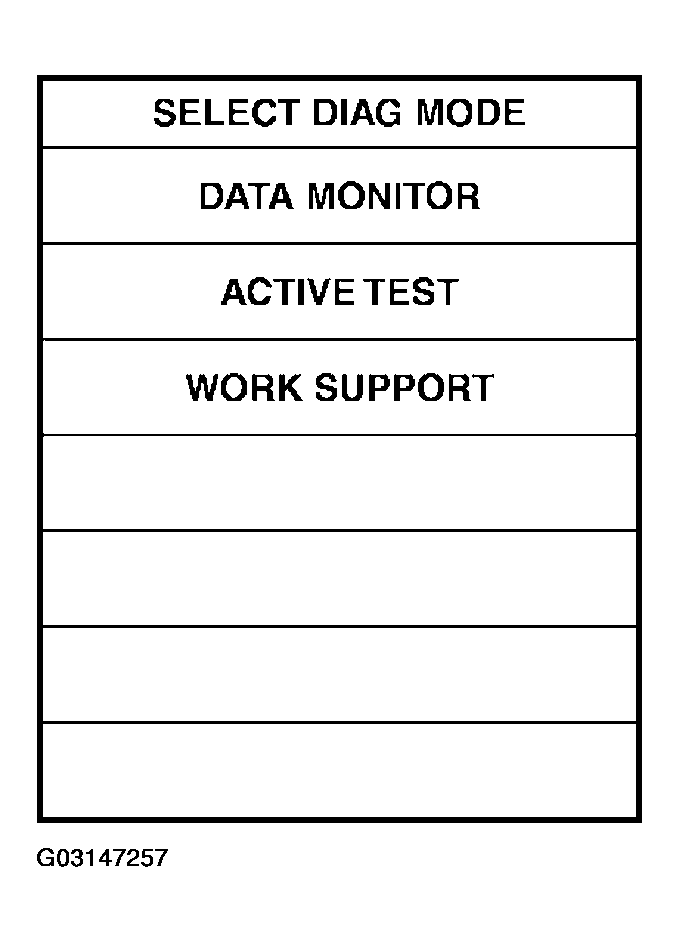

    Fig 5: Displaying WORK SUPPORT In SELECT DIAG MODE
    G03147257
  8. The items are shown on the figure at left can be set up.

    "REMO CONT ID CONFIR"

    Use this mode to confirm if a remote controller ID code is registered or not.

    "REMO CONT ID REGIST"

    Use this mode to register a remote controller ID code.

    NOTE: Register the ID code when remote controller or smart entrance control unit is replaced, or when additional remote controller is required.

    "REMO CONT ID ERASER"

    Use this mode to erase a remote controller ID code.

    "HZRD REM SET"

    Use this mode to activate or deactivate the hazard and horn reminder.

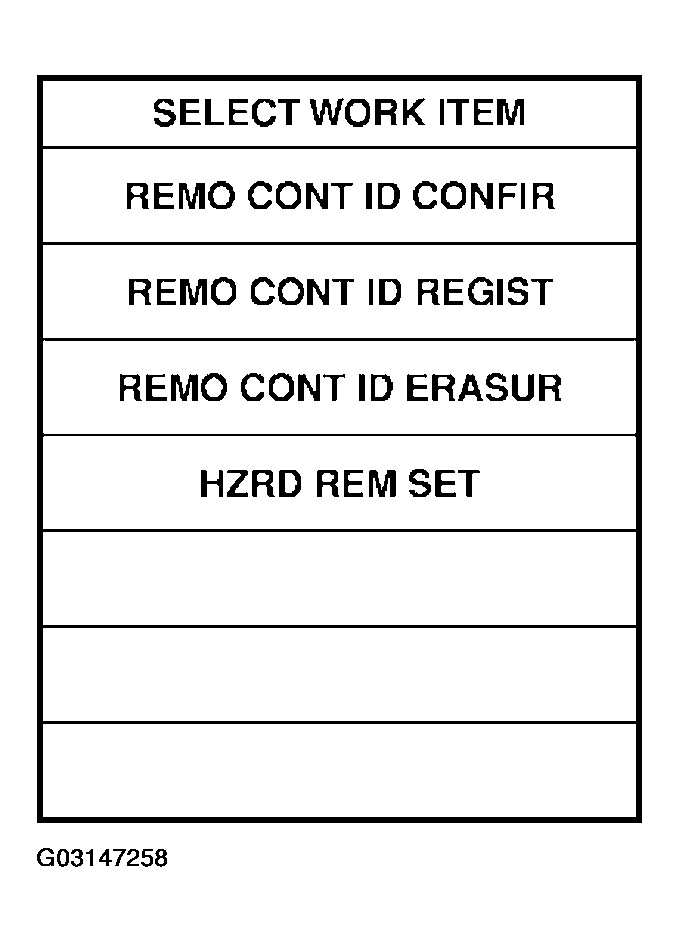

    Fig 6: Displaying SELECT WORK ITEM Mode
    G03147258
