1994 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Repair and Diagnosis: Transmission: Clutches: Description

Clutch assembly is a single disc type with a diaphragm spring pressure plate. Sentra uses a mechanical control system consisting of clutch cable, release lever and release bearing. See Fig 1 and Fig 2 .

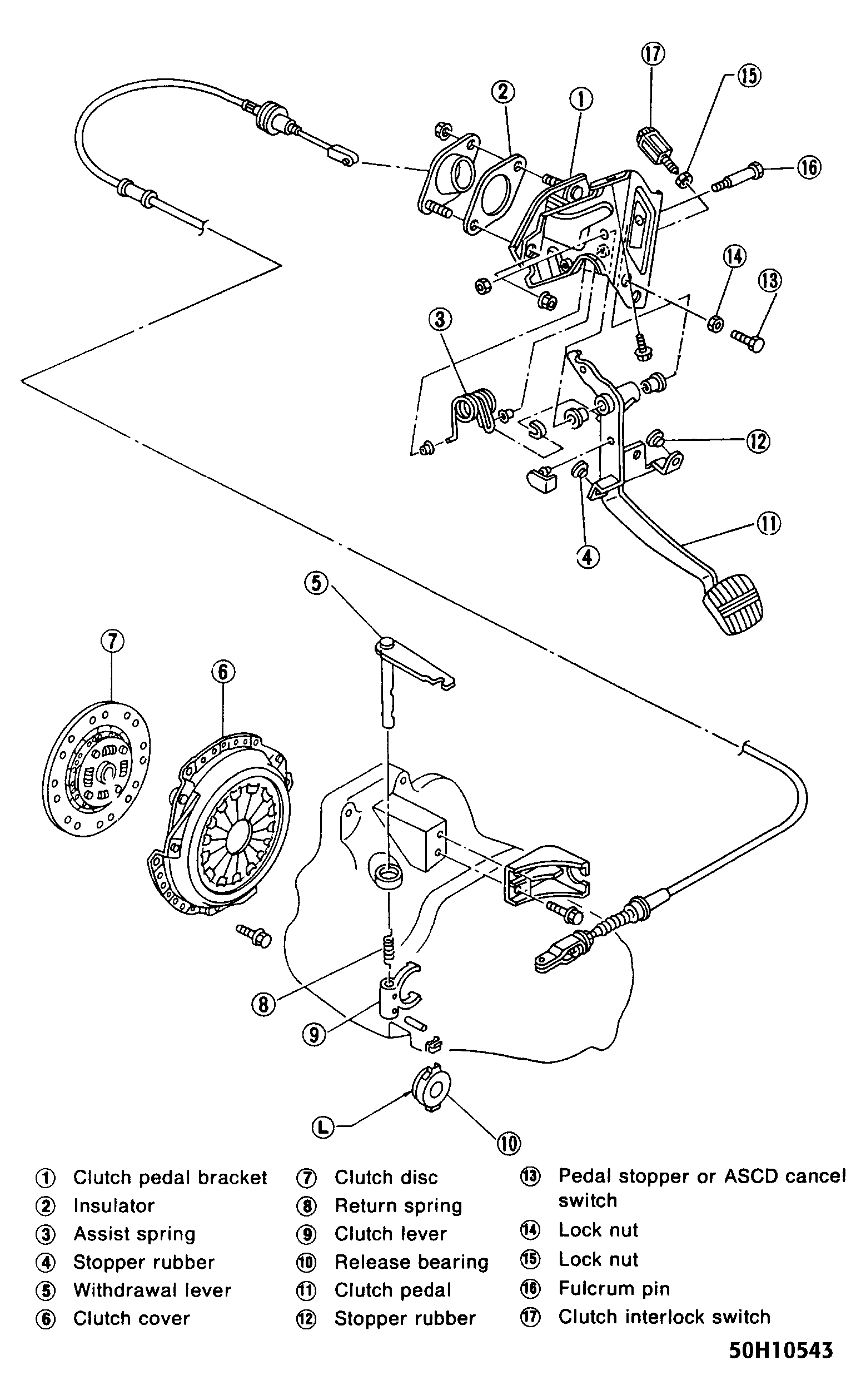

Fig 1: Exploded View Of Clutch Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
