1994 Nissan-Datsun Sentra SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE
4-Cylinder Ignition Timing
- Start engine and warm to normal operating temperature. Turn ignition off. Disconnect throttle position sensor harness connector.

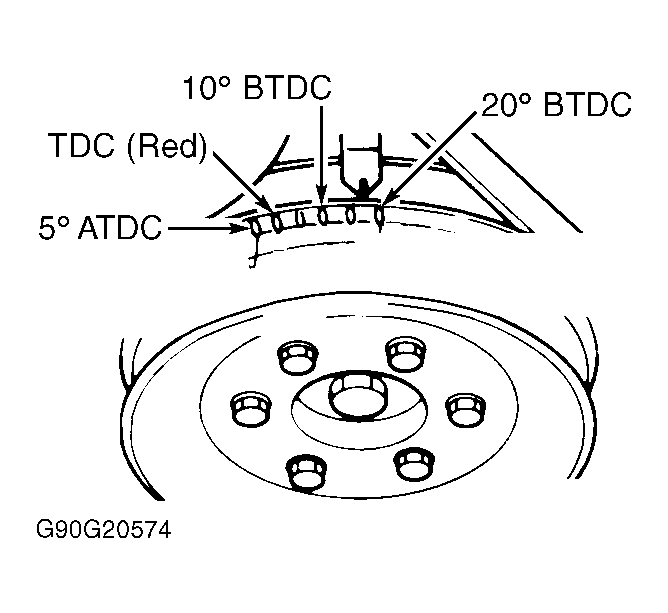

- Start engine. Increase engine speed to 2000 RPM, 2 or 3 times, then allow engine to return to idle. Engine should be operating smoothly at correct idle RPM. Check ignition timing. See 4-CYLINDER IGNITION TIMING table. See Fig 1 .
- If ignition timing is incorrect, loosen hold-down bolt and turn distributor to adjust ignition timing. Turn ignition off and connect throttle position sensor harness connector. Recheck ignition timing.
4-CYLINDER IGNITION TIMING- (Degrees BTDC @ RPM)
| Application | Man. Trans. | (1) Auto. Trans. | ||
|---|---|---|---|---|
| 1.6L | 8-12 @ 600-700 | 8-12 @ 800-900 | ||
| 2.0L | 13-17 @ 800-900 | 13-17 @ 800-900 | ||
|
||||
