Locate ECM harness connector. ECM is located under center of instrument panel (connector is on driver's side). Measure voltage between ground and ECM harness connector terminal No. 43 (Green/White wire). See Figure and Figure . Turn ignition switch to START position. Battery voltage should be present in start position ONLY. Zero volts should be present in any other ignition switch position. If voltage is not as specified, go to next step. If voltage is as specified, system is functioning properly.
Turn ignition off. Disconnect ECM harness connector. Disconnect ignition switch harness connector. Check continuity between ECM harness connector terminal No. 43 (Green/White wire) and ignition switch harness connector terminal "f" (Green/Red wire). See Fig 1 . Continuity should exist. If continuity exists, check ECM and ECM harness connector terminals for correct installation, damage or corrosion. Repair as necessary. If continuity does not exist, repair open in harness or connectors between ignition switch and ECM harness connector.

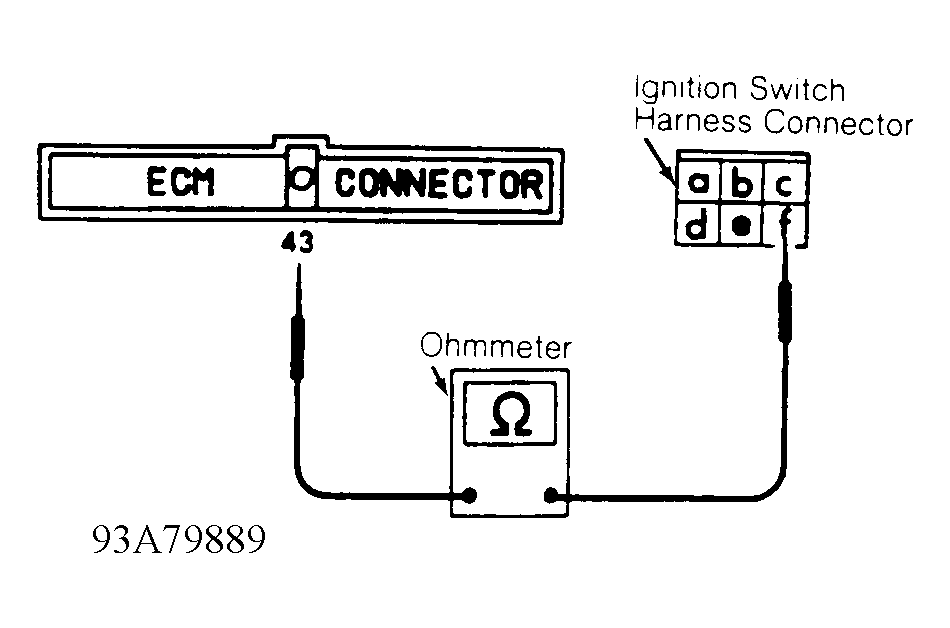

Fig 1: Testing Start Signal (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.
