1992 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Code 33 - Oxygen Sensor (2.0L)

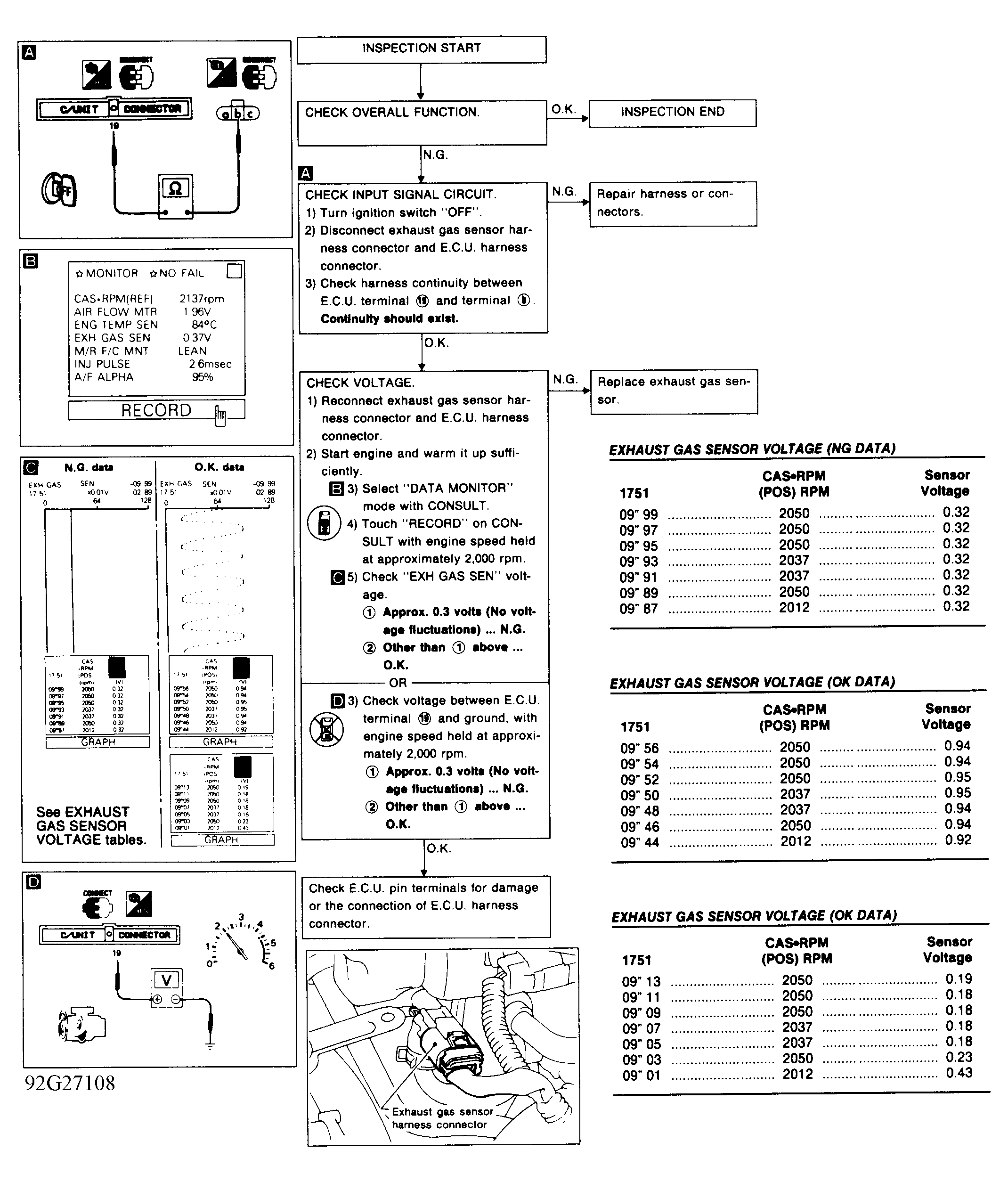

Fig 1: Code 33 - Oxygen Sensor (2.0L)
G92G27108Courtesy of NISSAN MOTOR CO., U.S.A.
EXHAUST GAS SENSOR VOLTAGE (NG DATA) (2.0L)

CAS*RPM 1751 Sensor (POS) RPM Voltage
09" 99 2050 0.32
09" 97 2050 0.32
09" 95 2050 0.32
09" 93 2037 0.32
09" 91 2037 0.32
09" 89 2050 0.32
09" 87 2012 0.32
EXHAUST GAS SENSOR VOLTAGE (OK DATA) (2.0L)

CAS*RPM 1751 Sensor (POS) RPM Voltage
09" 56 2050 0.94
09" 54 2050 0.94
09" 52 2050 0.95
09" 50 2037 0.95
09" 48 2037 0.94
09" 46 2050 0.94
09" 44 2012 0.92
EXHAUST GAS SENSOR VOLTAGE (OK DATA) (2.0L)

CAS*RPM 1751 Sensor (POS) RPM Voltage
09" 13 2050 0.19
09" 11 2050 0.18
09" 09 2050 0.18
09" 07 2037 0.18
09" 05 2037 0.18
09" 03 2050 0.23
09" 01 2012 0.43
