Vehicle Speed Sensor

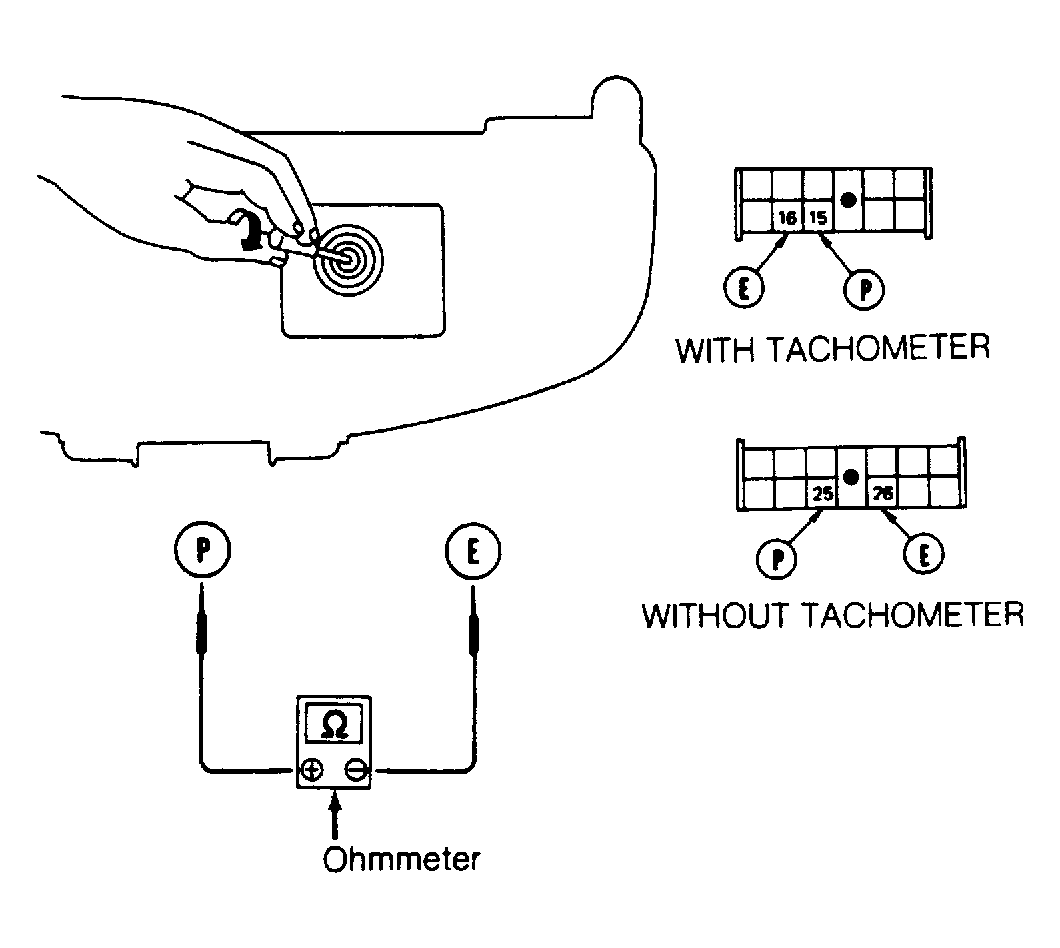

On NX and Sentra, remove instrument cluster to gain access to vehicle speed sensor. Slowly turn speedometer and check continuity of vehicle speed sensor circuit. Ensure continuity exists twice per turn. See Fig 1 . Also see appropriate ECU PIN VOLTAGE CHARTS in PIN VOLTAGE CHART S article.
| Application | Terminal No. | ||
|---|---|---|---|
| NX & Sentra | 33 | ||
|
|||
