1990 Nissan-Datsun Pathfinder SE, 4D Utility, AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Coil/Power Transistor Relay

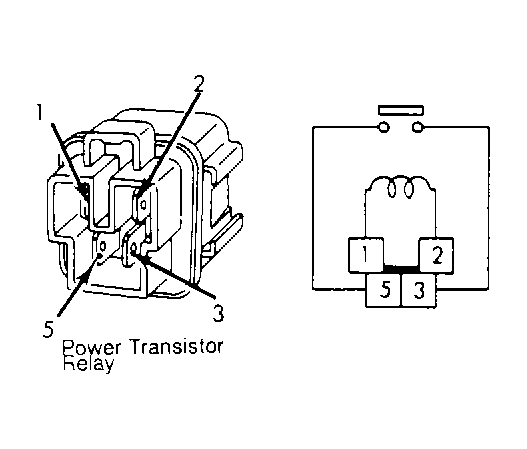

- Connect a 12-volt power source between terminals No. 1 and 2 of relay. See Fig 1 . Check continuity between terminals No. 3 and 5. Continuity should exist while relay is energized.
- Disconnect power source and check continuity between terminals No. 3 and 5. Continuity should NOT exist. Check harness and connectors. If harness and connectors are okay, replace ignition coil/power transistor relay.
