A/C SWITCH OFF (AXXESS)

Engine Coolant Temp. °F (°C)

Cooling Fan Speed ⁽¹⁾

Relay No. (Off or On)

Less Than 201 (94)

Off

1 & 2 (Off)

203-210 (95-99)

Low

1 (On), 2 (Off)

Greater Than 212 (100)

High

1 & 2 (On)

⁽¹⁾	The radiator (cooling) fan operates on high speed if the engine temperature sensor is no good.

A/C SWITCH & BLOWER SWITCH ON (AXXESS)

Engine Coolant Temp. °F (°C)

Cooling Fan Speed ⁽¹⁾

Relay No. (Off or On)

Evap. Outlet Temp.: 37-46°F (3-8°C)

Less Than 201 (94)

⁽²⁾ Low

1 (On), 2(Off)

Between 203-210 (95-99)

Low

1 (On), 2 (Off)

Greater Than 212 (100)

High

1 & 2 (On)

Evap. Outlet Temp.: Above 46°F (8°C)

Less Than 201 (94)

⁽²⁾ High

1 & 2 (On)

Between 203-210 (95-99)

⁽³⁾ High

1 & 2 (On)

Greater Than 212 (100)

High

1 & 2 (On)

⁽¹⁾	The radiator (cooling) fan operates on high speed if the engine temperature sensor is no good.

⁽²⁾	The radiator (cooling) fan should be off when vehicle speed is greater than 50 MPH.

⁽³⁾	The radiator (cooling) fan should be on low speed when vehicle speed is greater than 50 MPH.

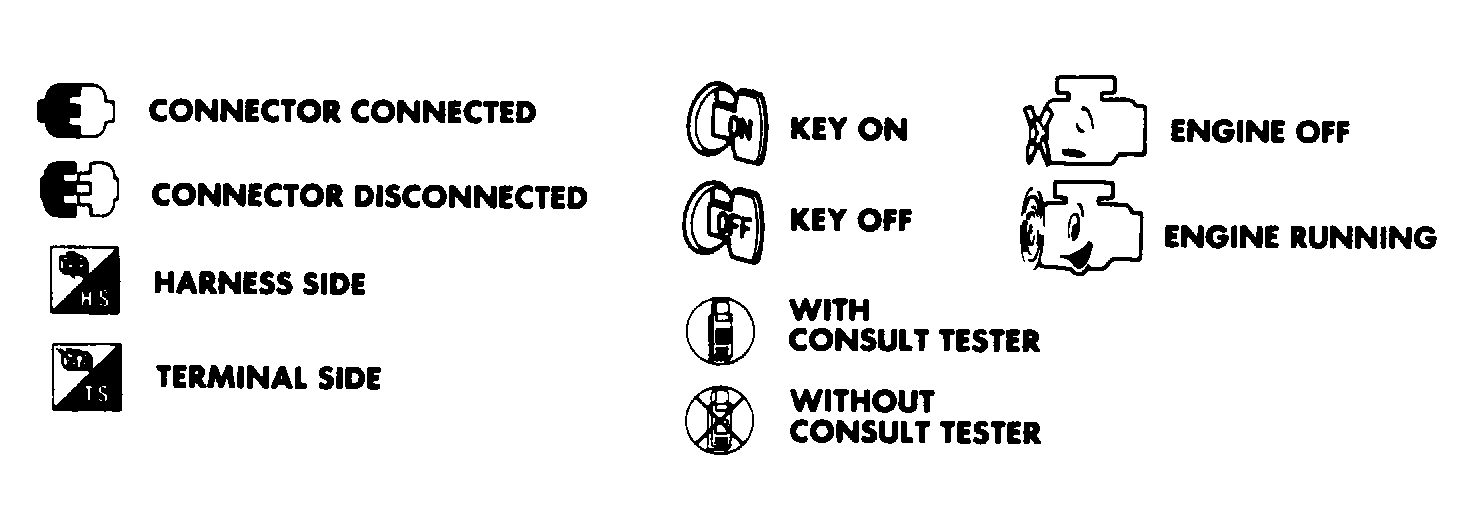

Fig 1: Identifying Diagnostic Chart Symbols

Courtesy of NISSAN MOTOR CO., U.S.A.
