2020 Mitsubishi Outlander GTFACTORY OEM SERVICE PROCEDURE

Special Tools

Tool Tool number and name Supersession Application

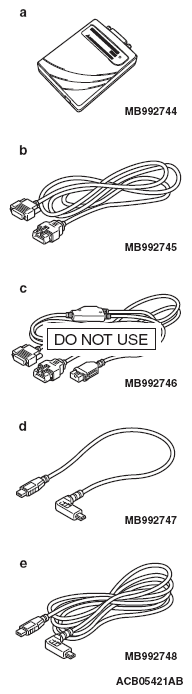

G09628470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748
  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short e. V.C.I.-Lite USB cable long
 - Checking diagnostic trouble codes

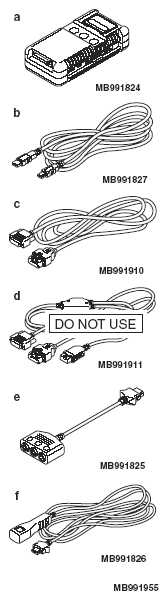

G05385694Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826 M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
Checking diagnostic trouble codes
