2016 Mitsubishi Outlander ESFACTORY OEM SERVICE PROCEDURE

Special Tool

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G09628470
  1. MB992744

    Vehicle communication interface-Lite (V.C.I.-Lite)

  2. MB992745

    V.C.I.-Lite main harness A (for vehicles with CAN communication)

  3. MB992746

    V.C.I.-Lite main harness B (for vehicles without CAN communication)

  4. MB992747

    V.C.I.-Lite USB cable short

  5. MB992748

    V.C.I.-Lite USB cable long

 - Reading the diagnostic trouble code

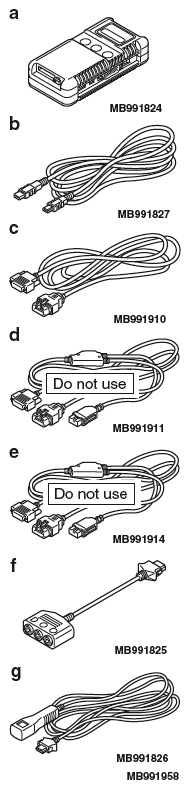

G06244449
 MB991958
Scan tool (M.U.T.-III sub assembly)
  1. MB991824

    Vehicle communication interface (V.C.I.)

  2. MB991827

    M.U.T.-III USB cable

  3. MB991910

    M.U.T.-III main harness A (Vehicles with CAN communication system)

  4. MB991911

    M.U.T.-III main harness B (Vehicles without CAN communication system)

  5. MB991914

    M.U.T.-III main harness C (for Chrysler models only)

  6. MB991825

    M.U.T.-III adapter harness

  7. MB991826

    M.U.T.-III trigger harness

 MB991824-KIT
NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Reading the diagnostic trouble code
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G05903695
 MB992273
Spark plug brush		 - Cleaning spark plug
G10224385
 MD998773
Knock sensor wrench		 MD998773-01 Knock sensor removal and installation
