2014 Mitsubishi Outlander ESFACTORY OEM SERVICE PROCEDURE

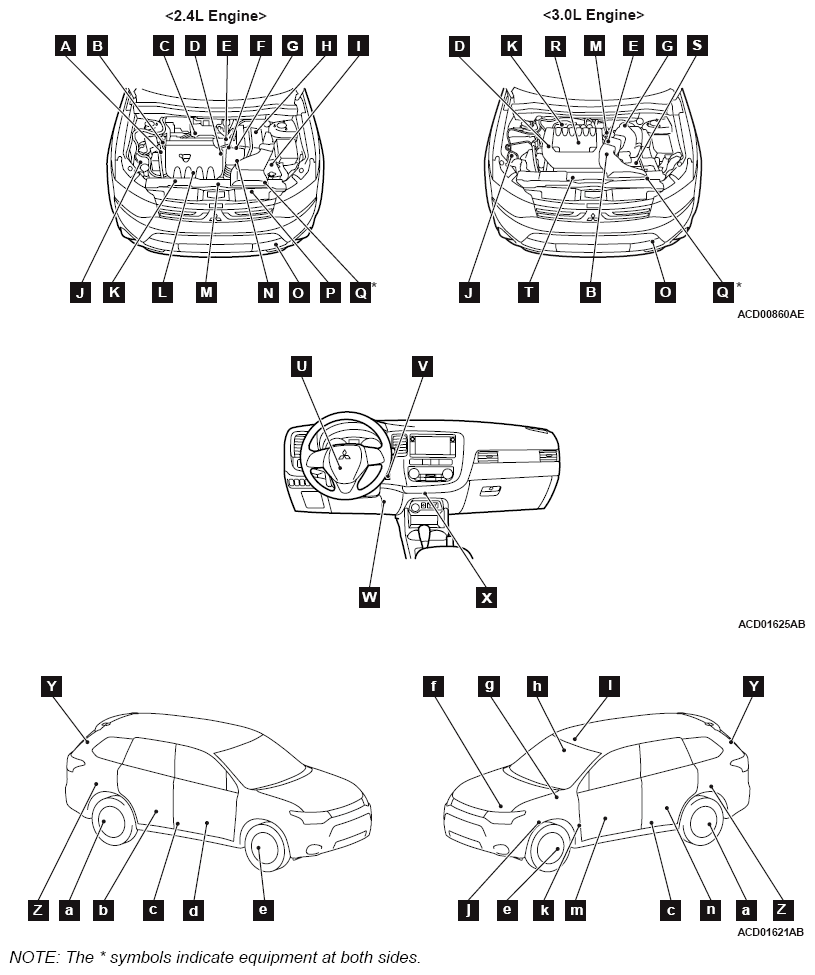

Component Locations: Sensor
| Name | Symbol |
|---|---|
| A/C pressure sensor | J |
| Accelerator pedal position sensor | W |
| Ambient air temperature sensor | O |
| Battery current sensor < 2.4L engine > | I |
| Brake booster vacuum sensor < 2.4L Engine > | H |
| Camshaft position sensor | B |
| Crankshaft position sensor | D |
| Engine coolant temperature sensor | E |
| Fin thermo sensor | X |
| Front impact sensor | Q |
| Front wheel speed sensor | e |
| Fuel level sensor (sub) < AWD > | b |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | n |
| Fuel tank differential pressure switch (incorporating fuel tank differential pressure sensor) | n |
| Heated oxygen sensor (rear) < 2.4L Engine > | k |
| Input shaft speed sensor < 3.0L Engine > | S |
| Interior temperature sensor | V |
| Knock sensor < 2.4L Engine > | L |
| LDW-ECU (incorporating lighting control sensor) | h |
| Left bank heated oxygen sensor (rear) < 3.0L Engine > | f |
| Left bank knock sensor < 3.0L Engine > | R |
| Left bank linear air-fuel ratio sensor < 3.0L Engine > | T |
| Liftgate sensor < Vehicles with power liftgate > | Y |
| Lighting control sensor < Vehicles with rain sensitive AUTO wiper without lane departure warning system > | h |
| Linear air-fuel ratio sensor < 2.4L Engine > | C |
| Manifold absolute pressure sensor | K |
| Mass airflow sensor | G |
| Occupant classification sensor | d |
| Output shaft speed sensor < 3.0L Engine > | j |
| Primary pulley speed sensor < 2.4L Engine > | P |
| Rear wheel speed sensor | a |
| Right bank heated oxygen sensor (rear) < 3.0L Engine > | g |
| Right bank knock sensor < 3.0L Engine > | R |
| Right bank linear air-fuel ratio sensor < 3.0L Engine > | g |
| Seat slide sensor | m |
| Secondary pulley speed sensor < 2.4L Engine > | N |
| Side impact sensor (front) | c |
| Side impact sensor (rear) | Z |
| Steering wheel sensor | U |
| Theft-alarm sensor | i |
| Throttle body assembly (incorporating throttle position sensor) | M |
| Variable valve lift control motor (incorporating sensor) < 2.4L Engine > | A |
| Variable valve lift sensor < 2.4L Engine > | F |
