2014 Mitsubishi Outlander ESFACTORY OEM SERVICE PROCEDURE

Component Locations: Relay

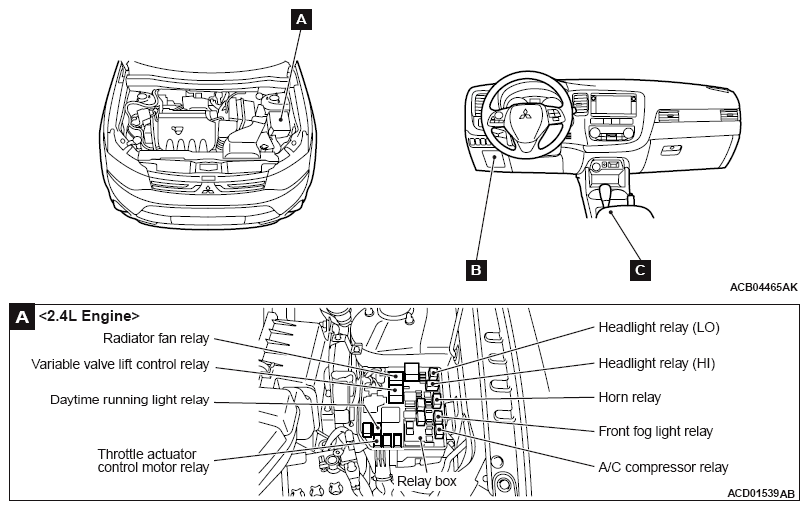

Fig 1: Relay Locations (1 Of 2)
G09621361Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RELAY IDENTIFICATION

Name Symbol
A/C compressor relay A
Daytime running light relay A
Front fog light relay A
Headlight relay (HI) A
Headlight relay (LO) A
Horn relay A
Radiator fan relay A
Throttle actuator control motor relay A
Variable valve lift control relay < 2.4L Engine > A

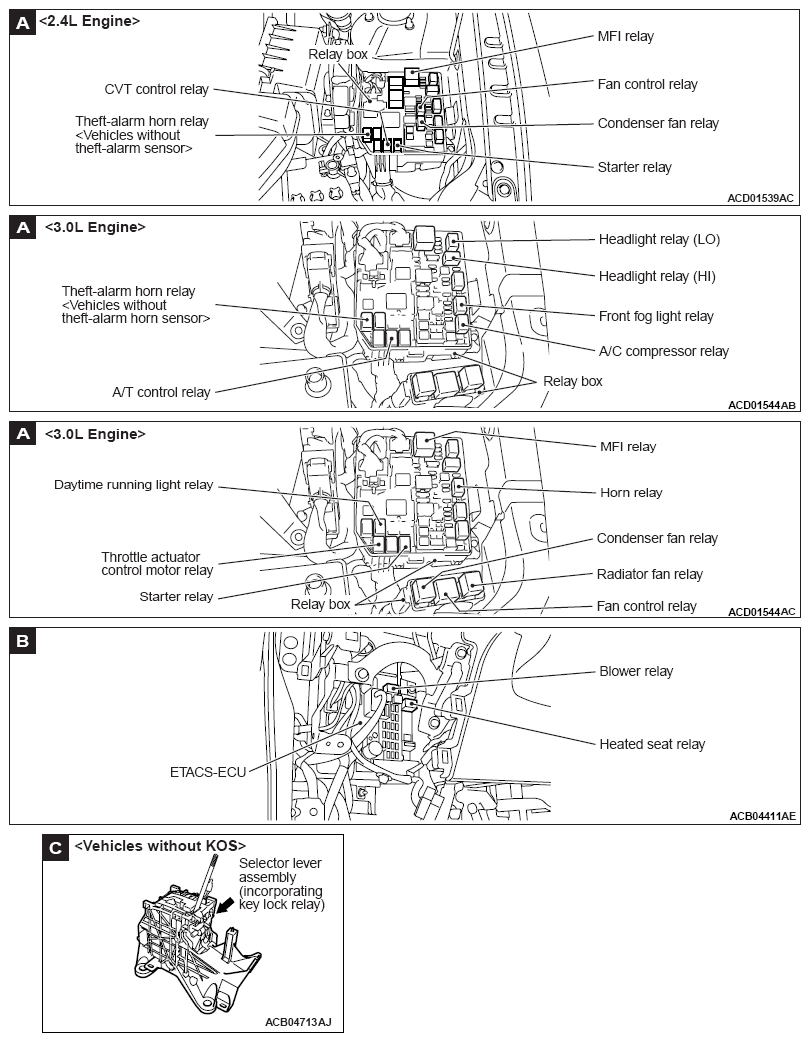

Fig 2: Relay Locations (2 Of 2)
G09621362Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RELAY IDENTIFICATION

Name Symbol
A/C compressor relay A
A/T control relay < 3.0L Engine > A
Blower relay B
Condenser fan relay A
CVT control relay < 2.4L Engine > A
Daytime running light relay A
Fan control relay A
Front fog light relay A
Headlight relay (HI) A
Headlight relay (LO) A
Heated seat relay B
Horn relay A
MFI relay A
Radiator fan relay A
Selector lever assembly (incorporating key lock relay) < Vehicles without KOS > C
Starter relay A
Theft-alarm horn relay < Vehicles without theft-alarm sensor > A
Throttle actuator control motor relay A
Variable valve lift control relay < 2.4L Engine > A
