2014 Mitsubishi Outlander ESFACTORY OEM SERVICE PROCEDURE

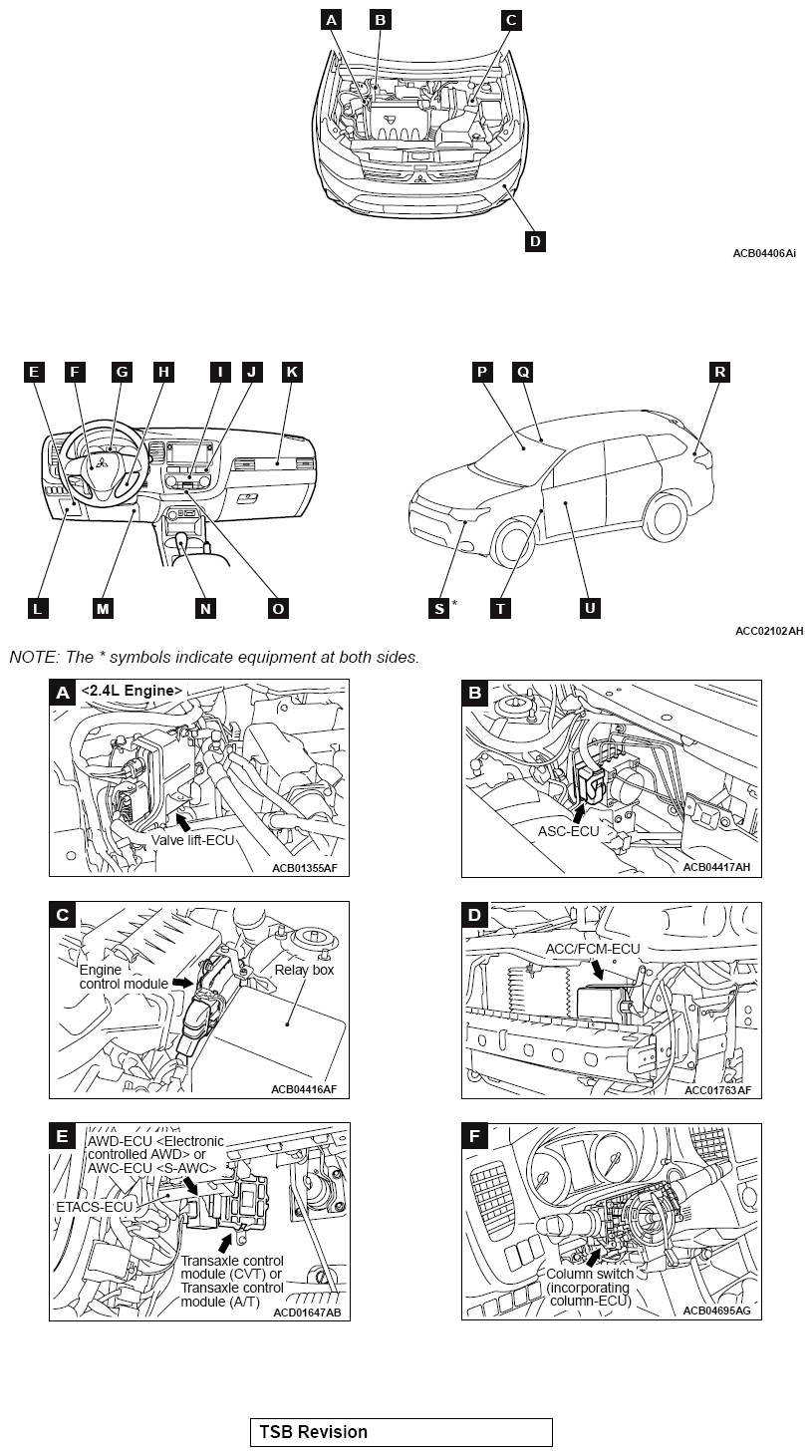

Control Unit
| Name | Symbol |
|---|---|
| ACC/FCM-ECU | D |
| ASC-ECU | B |
| AWC-ECU < S-AWC > | E |
| AWD-ECU < Electronic controlled AWD > | E |
| CAN box unit < Vehicles with MMCS > | J |
| Column switch (incorporating column-ECU) | F |
| Combination meter (incorporating CPU) | G |
| Electric steering lock < Vehicles with KOS > | H |
| Engine control module | C |
| EPS-ECU | M |
| ETACS-ECU | L |
| Hands free module | O |
| Headlight control unit < Vehicles with discharge type headlight > | S |
| Heater controller assembly (A/C-ECU) | I |
| KOS-ECU | K |
| LDW-ECU | P |
| OSS-ECU | K |
| Occupant classification-ECU | T |
| Power liftgate unit assembly (incorporating power liftgate control unit) | R |
| Power window main switch (incorporating CPU) | U |
| SRS-ECU | N |
| Sunroof motor assembly (incorporating CPU) | Q |
| Transaxle control module (A/T) | E |
| Transaxle control module (CVT) | E |
| Valve lift-ECU < 2.4L Engine > | A |
