2012 Mitsubishi RVR ESFACTORY OEM SERVICE PROCEDURE
Vehicles For CANADA

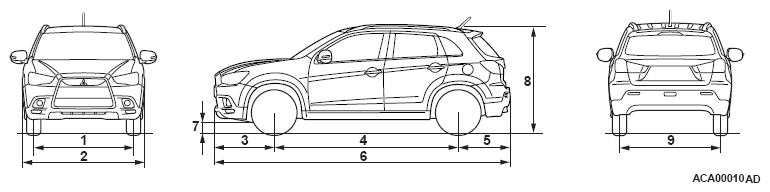

GENERAL DATA AND SPECIFICATIONS - CANADA
| Item | GA2W | ||||
|---|---|---|---|---|---|
| XNSHL3M | XTSHL3M | ||||
| Vehicle dimension mm (in) | Front track | 1 | 1, 525 (60.0) | 1, 525 (60.0) | |
| Overall width | 2 | 1, 770 (69.7) | 1, 770 (69.7) | ||
| Front overhang | 3 | 870 (34.3) | 870 (34.3) | ||
| Wheel base | 4 | 2, 670 (105.1) | 2, 670 (105.1) | ||
| Rear overhang | 5 | 755 (29.7) | 755 (29.7) | ||
| Overall length | 6 | 4, 295 (169.1) | 4, 295 (169.1) | ||
| Ground clearance (unladen) | 7 | 215 (8.5) | 215 (8.5) | ||
| Overall height (unladen) | Without roof rail | 8 | 1, 630 (64.2) | 1, 630 (64.2) | |
| With roof rail | 1, 640 (64.6) | 1, 640 (64.6) | |||
| Rear track | 9 | 1, 525 (60.0) | 1, 525 (60.0) | ||
| Vehicle weight kg (lb) | Kerb weight | Without optional parts | 1, 375 (3, 032) | 1, 405 (3, 098) | |
| With optional parts | 1, 406 (3, 100) | 1, 436 (3, 166) | |||
| Max. gross vehicle weight | 1, 970 (4, 343) | 1, 970 (4, 343) | |||
| Max. axle weight rating-front | 1, 030 (2, 271) | 1, 030 (2, 271) | |||
| Max. axle weight rating-rear | 1, 000 (2, 205) | 1, 000 (2, 205) | |||
| Seating capacity | 5 | 5 | |||
| Engine | Model code | 4B11 | 4B11 | ||
| Type | DOHC MIVEC | DOHC MIVEC | |||
| Piston displacement cm3 (cu in) | 1, 998 (121.9) | 1, 998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 110/6, 000 (148/6, 000) | 110/6, 000 (148/6, 000) | |||
| Maximum torque N.m/r/min (ft-lb/r/min) | 197/4, 200 (145/4, 200) | 197/4, 200 (145/4, 200) | |||
| Fuel system | Fuel supply system | MPI | MPI | ||
| Transmission | Model code | F5MBB | F1CJA | ||
| Type | FWD, 5M/T | FWD, INVECS-III CVT with sport mode | |||
| Minimum turning radius m (ft) | Body | 5.63 (18.5) | 5.63 (18.5) | ||
| Wheel | 5.3 (17.4) | 5.3 (17.4) | |||
| Vehicle dimension mm (in) | Front track | 1 | 1, 525 (60.0) | 1, 525 (60.0) | |
| Overall width | 2 | 1, 770 (69.7) | 1, 770 (69.7) | ||
| Front overhang | 3 | 870 (34.3) | 870 (34.3) | ||
| Wheel base | 4 | 2, 670 (105.1) | 2, 670 (105.1) | ||
| Rear overhang | 5 | 755 (29.7) | 755 (29.7) | ||
| Overall length | 6 | 4, 295 (169.1) | 4, 295 (169.1) | ||
| Ground clearance (unladen) | 7 | 215 (8.5) | 215 (8.5) | ||
| Overall height (unladen) | Without roof rail | 8 | 1, 630 (64.2) | 1, 630 (64.2) | |
| With roof rail | 1, 640 (64.6) | 1, 640 (64.6) | |||
| Rear track | 9 | 1, 525 (60.0) | 1, 525 (60.0) | ||
| Vehicle weight kg (lb) | Kerb weight | Without optional parts | 1, 470 (3, 241) | 1, 480 (3, 263) | |
| With optional parts | 1, 501 (3, 309) | 1, 534 (3, 382) | |||
| Max. gross vehicle weight | 1, 970 (4, 343) | 1, 970 (4, 343) | |||
| Max. axle weight rating-front | 1, 030 (2, 271) | 1, 030 (2, 271) | |||
| Max. axle weight rating-rear | 1, 000 (2, 205) | 1, 000 (2, 205) | |||
| Seating capacity | 5 | 5 | |||
| Engine | Model code | 4B11 | 4B11 | ||
| Type | DOHC MIVEC | DOHC MIVEC | |||
| Total displacement mL | 1, 998 (121.9) | 1, 998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 110/6, 000 (148/6, 000) | 110/6, 000 (148/6, 000) | |||
| Maximum torque N.m/r/min (ft-lb/r/min) | 197/4, 200 (145/4, 200) | 197/4, 200 (145/4, 200) | |||
| Fuel system | Fuel supply system | MPI | MPI | ||
| Transmission | Model code | W1CJA | W1CJA | ||
| Type | AWD, INVECS-III CVT with sport mode | AWD, INVECS-III CVT with sport mode | |||
| Minimum turning radius m (ft) | Body | 5.63 | 5.63 | ||
| Wheel | 5.3 | 5.3 | |||
