2012 Mitsubishi Lancer Evolution MRFACTORY OEM SERVICE PROCEDURE

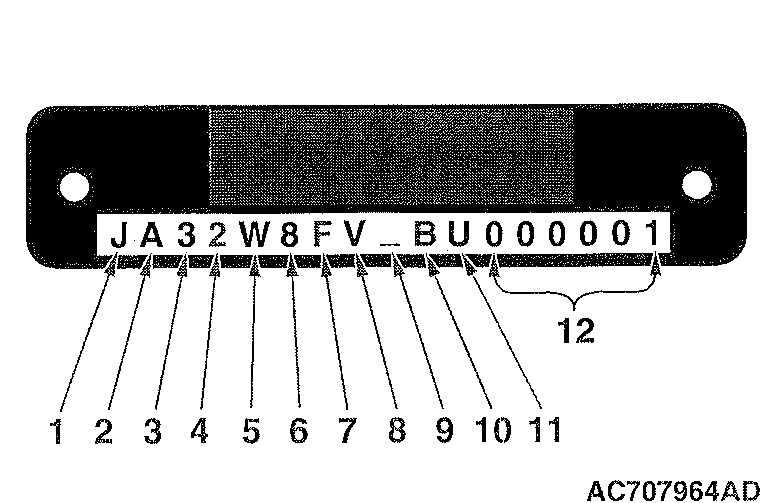

Vehicle Identification Number Plate
The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.
CODE CHART
CODE CHART
| No. | Item | Content | |||
|---|---|---|---|---|---|
| 1 | Country | J | JAPAN | ||
| 2 | Make | A | Mitsubishi Motors | ||
| 3 | Vehicle type | 3 | Passenger car | ||
| 4 | Others | 2 | Air bags (driver, passenger, side curtain, driver knee) | ||
| 5 | Line | W | LANCER EVOLUTION | ||
| 6 | Trim level (Price class) | 5 | PREMIUM | ||
| 8 | SPORTS | ||||
| 7 | Body style | F | 4-door sedan | ||
| 8 | Engine type | V | 2.0L DOHC MIVEC with charge air cooler, turbocharger (4B11) | ||
| 9 | Check digits(1) | 0, 1, 2, 3, ----9, X | |||
| 10 | Model year | C | 2012 year | ||
| 11 | Plant | U | Mizushima | ||
| 12 | Serial number | 000001 to 999999 | |||
|
|||||
